BUF601AU Datasheet

  • BUF601AU

  • HIGH-SPEED BUFFER AMPLIFIER

  • 249.66KB

  • 14頁

  • BB

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
BUF
600
BUF
600
BUF
601
BUF600
BUF601
HIGH-SPEED BUFFER AMPLIFIER
FEATURES
q
OPEN-LOOP BUFFER
q
HIGH-SLEW RATE: 3600V/
碌
s, 5.0Vp-p
q
BANDWIDTH: 320MHz, 5.0Vp-p
900MHz, 0.2Vp-p
q
LOW INPUT BIAS CURRENT: 0.7
碌
A/1.5
碌
A
q
LOW QUIESCENT CURRENT: 3mA/6mA
q
GAIN FLATNESS: 0.1dB, 0 to 300MHz
APPLICATIONS
q
VIDEO BUFFER/LINE DRIVER
q
INPUT/OUTPUT AMPLIFIER FOR
MEASUREMENT EQUIPMENT
q
PORTABLE SYSTEMS
q
TRANSMISSION SYSTEMS
q
TELECOMMUNICATIONS
q
HIGH-SPEED ANALOG SIGNAL
PROCESSING
q
ULTRASOUND
DESCRIPTION
The BUF600 and BUF601 are monolithic open-loop
unity-gain buffer amplifiers with a high symmetrical
slew rate of up to 3600V/碌s and a very wide band-
width of 320MHz at 5Vp-p output swing. They use a
complementary bipolar IC process, which incorpo-
rates pn-junction isolated high-frequency NPN and
PNP transistors to achieve high-frequency performance
previously unattainable with conventional integrated
circuit technology.
Their unique design offers a high-performance alter-
native to expensive discrete or hybrid solutions.
The BUF600 and BUF601 feature low quiescent
current, low input bias current, small signal delay time
and phase shift, and low differential gain and phase
errors.
The BUF600 with 3mA quiescent current is well-
suited for operation between high-frequency
processing stages. It demonstrates outstanding perfor-
mance even in feedback loops of wide-band amplifiers
or phase-locked loop systems.
The BUF601, with 6mA quiescent current and there-
fore lower output impedance, can easily drive 50鈩?/div>
inputs or 75鈩?systems and cables.
The broad range of analog and digital applications
extends from decoupling of signal processing stages,
impedance transformation, and input amplifiers for
RF equipment and ATE systems to video systems,
distribution fields, IF/communications systems, and
output drivers for graphic cards.
V+ = +5V
(1)
V
IN
(4)
V
OUT
(8)
Bias
Circuitry
BUFFER
Simplified Circuit Diagram
V鈥?= 鈥?V
(5)
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111 鈥?Twx: 910-952-1111
Internet: http://www.burr-brown.com/ 鈥?FAXLine: (800) 548-6133 (US/Canada Only) 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
廬
漏 1991 Burr-Brown Corporation
PDS-1128F
1
Printed in
601
BUF600,
U.S.A. March, 1998

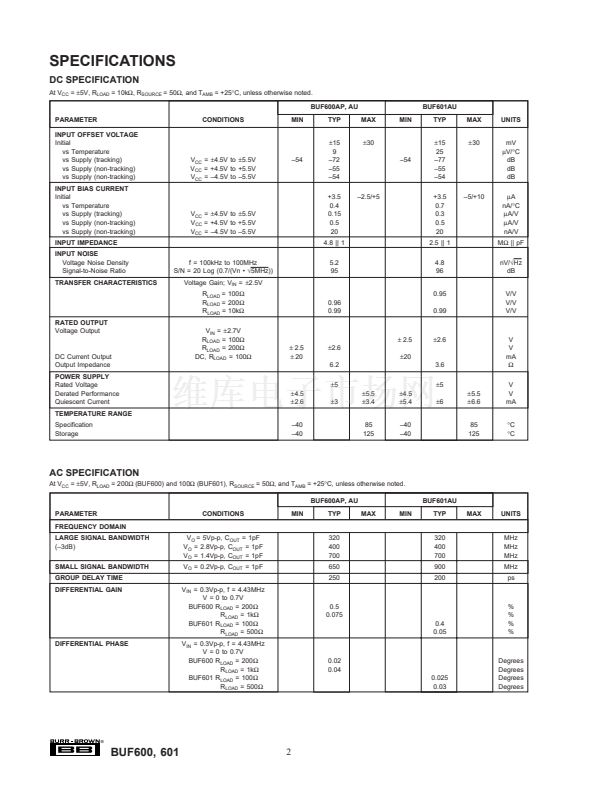

BUF601AU 產品屬性

  • Texas Instruments

  • 高速運算放大器

  • 1 Channel

  • 30 mV

  • 3600 V/us

  • 5.5 V

  • + 85 C

  • SMD/SMT

  • SOIC-8

  • - 40 C

  • 20 mA

  • 1
