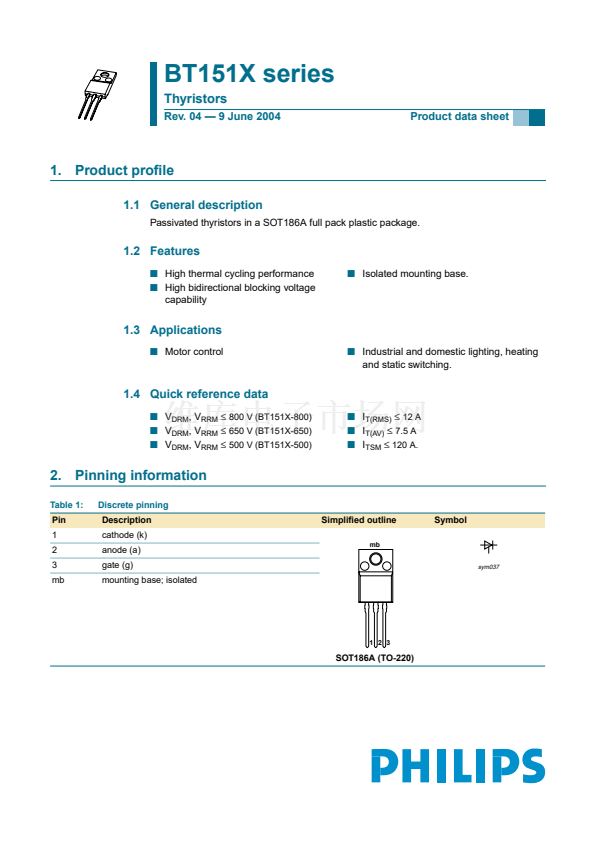

BT151X series
Thyristors
Rev. 04 鈥?9 June 2004
Product data sheet
1. Product pro鏗乴e
1.1 General description
Passivated thyristors in a SOT186A full pack plastic package.
1.2 Features
s
High thermal cycling performance
s
High bidirectional blocking voltage
capability
s
Isolated mounting base.
1.3 Applications
s
Motor control
s
Industrial and domestic lighting, heating
and static switching.
1.4 Quick reference data
s
V
DRM
, V
RRM
鈮?/div>
800 V (BT151X-800)
s
V
DRM
, V
RRM
鈮?/div>
650 V (BT151X-650)
s
V
DRM
, V
RRM
鈮?/div>
500 V (BT151X-500)
s
I
T(RMS)
鈮?/div>
12 A
s
I
T(AV)
鈮?/div>
7.5 A
s
I
TSM
鈮?/div>
120 A.
2. Pinning information
Table 1:
Pin
1
2
3
mb
Discrete pinning
Description
cathode (k)
anode (a)
gate (g)
mounting base; isolated
mb
sym037
Simpli鏗乪d outline
Symbol
1 2 3
SOT186A (TO-220)
next
BT151X-650R 產品屬性
NXP
SCR
110 A
650 V
0.5 mA
1.75 V
1.5 V
5 V
15 mA
20 mA
SMD/SMT
SOT-186A
Rail
+ 125 C
- 40 C
50
BT151X-650R,127
