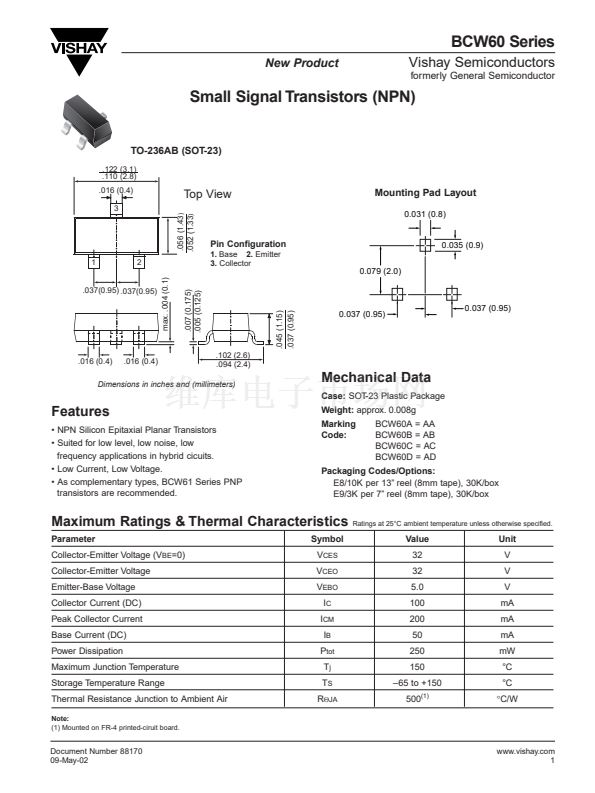

BCW60 Series
New Product
Vishay Semiconductors
formerly General Semiconductor
Small Signal Transistors (NPN)
TO-236AB (SOT-23)
.122 (3.1)
.110 (2.8)
.016 (0.4)
3
.056 (1.43
)
.052 (1.33
)
Top View
Mounting Pad Layout
0.031 (0.8)
Pin Configuration
1.
Base
2.
Emitter
3.
Collector
0.035 (0.9)
0.079 (2.0)
1
2
max. .004 (0.1)
.007 (0.175)
.005 (0.125)
.037(0.95) .037(0.95)
.045 (1.15)
.037 (0.95)
0.037 (0.95)
0.037 (0.95)
.016 (0.4)
.016 (0.4)
.102 (2.6)
.094 (2.4)
Dimensions in inches and (millimeters)
Mechanical Data
Case:
SOT-23 Plastic Package
Weight:
approx. 0.008g
Marking
Code:
BCW60A = AA
BCW60B = AB
BCW60C = AC
BCW60D = AD
Features
鈥?NPN Silicon Epitaxial Planar Transistors
鈥?Suited for low level, low noise, low
frequency applications in hybrid cicuits.
鈥?Low Current, Low Voltage.
鈥?As complementary types, BCW61 Series PNP
transistors are recommended.
Packaging Codes/Options:
E8/10K per 13鈥?reel (8mm tape), 30K/box
E9/3K per 7鈥?reel (8mm tape), 30K/box
Ratings at 25擄C ambient temperature unless otherwise specified.
Maximum Ratings & Thermal Characteristics
Parameter
Collector-Emitter Voltage (V
BE
=0)
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
Peak Collector Current
Base Current (DC)
Power Dissipation
Maximum Junction Temperature
Storage Temperature Range
Thermal Resistance Junction to Ambient Air
Note:
(1) Mounted on FR-4 printed-ciruit board.
Symbol
V
CES
V
CEO
V
EBO
I
C
I
CM
I
B
P
tot
T
j
T
S
R
螛JA
Value
32
32
5.0
100
200
50
250
150
鈥?5 to +150
500
(1)
Unit
V
V
V
mA
mA
mA
mW
擄C
擄C
擄C/W
Document Number 88170
09-May-02
www.vishay.com
1
