BCP-5/15-3.3/15-D24N Datasheet

  • BCP-5/15-3.3/15-D24N

  • Analog IC

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
廬
INNOVATION and EXCELLENCE

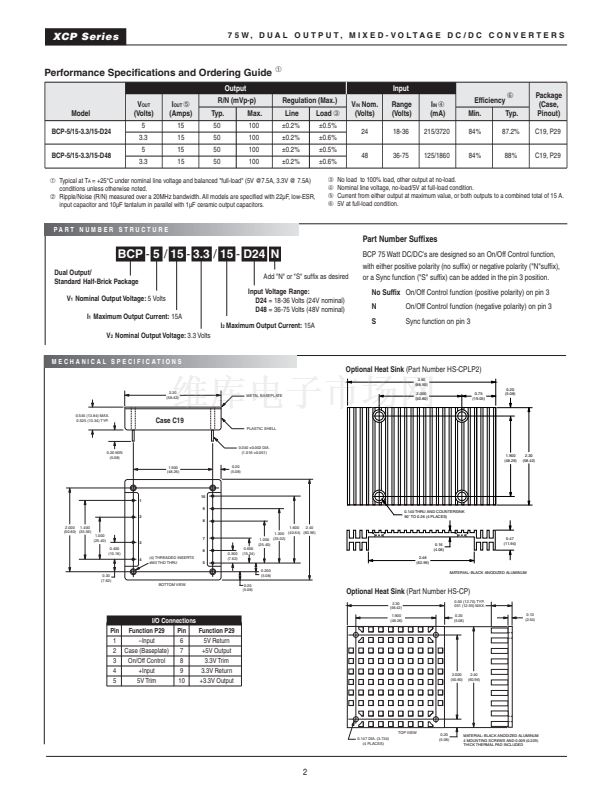

Dual Output
Mixed Voltage, BCP Models
5V and 3.3V, "Half-Brick"
75 Watt, DC/DC Converters
Features
I
I
I
I
I
I
I
Independent 5V and 3.3V outputs
Each output fully regulated
No minimum load requirements
Up to 15 Amps per output
75 Watts total output power
Standard "half-brick" package
UL1950, EN60950 and VDE safety
approvals (BASIC insulation)
Fully isolated, 1500Vdc guaranteed
18-36V or 36-75V input ranges
mark available (75V-input models)
Input under and overvoltage shutdown
Continuous short-circuit protection
Thermal shutdown
I
I
I
I
I
I
As your new, mixed-logic (5V and 3.3V) design evolves and your current require-
ments change, your new DC/DC converter will not. DATEL鈥檚 BCP-5/15-3.3/15-D24
(18-36V input) and BCP-5/15-3.3/15-D48 (36-75V input) are fully isolated DC/DC
converters providing both 5V and 3.3V outputs. Housed in standard "half-brick"
packages (2.3" x 2.4" x 0.525"), the BCP鈥檚 can support any combination of 5V and
3.3V loading up to a combined total of 15 Amps. Both outputs are fully isolated
(1500Vdc) and independently line (鹵0.2%) and load (鹵0.5% and 鹵0.6%) regulated.

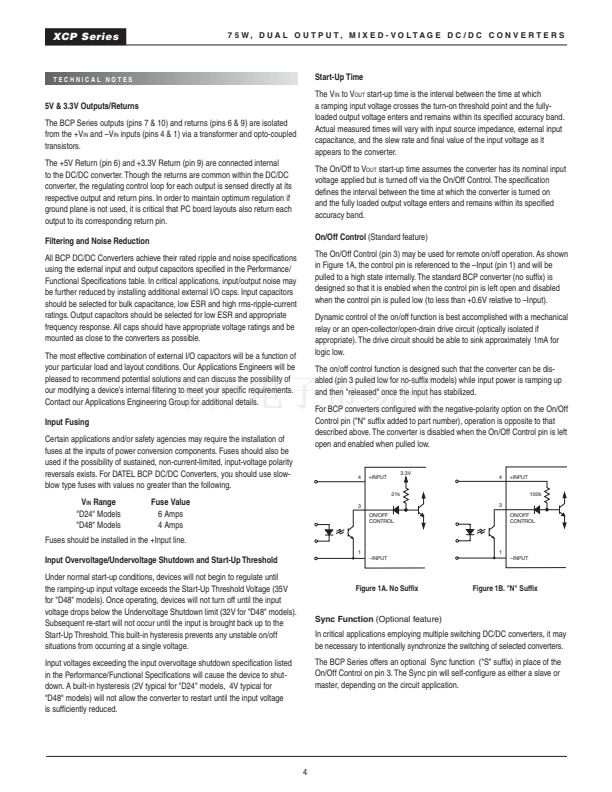

Both BCP models feature input pi 鏗乴ters, input undervoltage and overvoltage

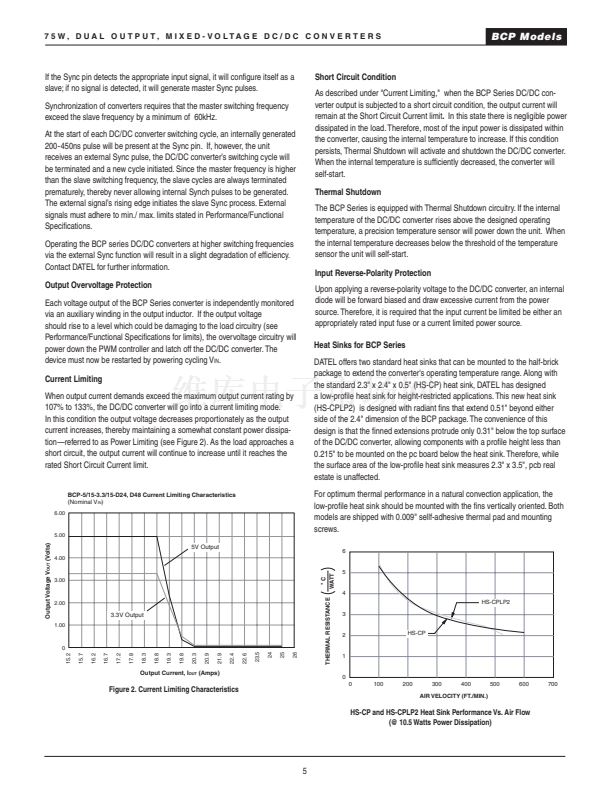

shutdown, input reverse-polarity protection, output overvoltage protection, current

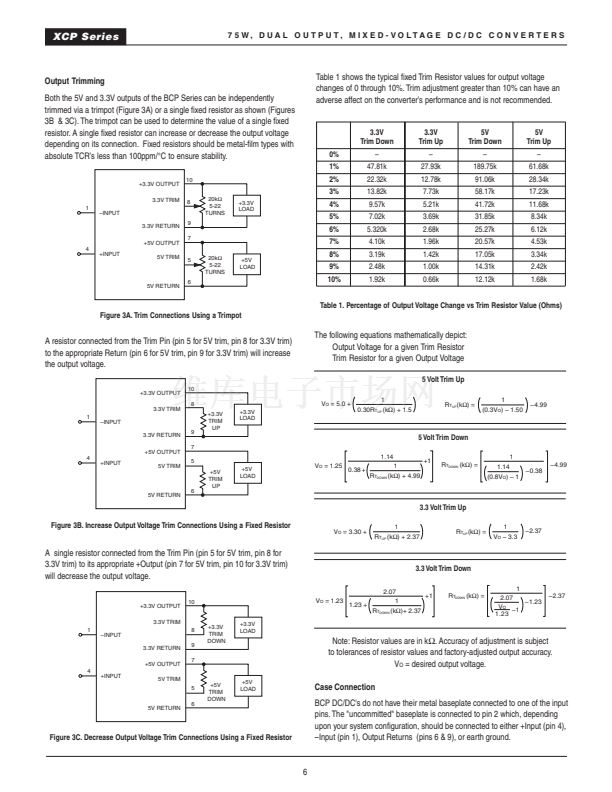

limiting, and thermal shutdown. Each has an on/off control function, or an optional
sync capability and the two output voltages can be trimmed independently.

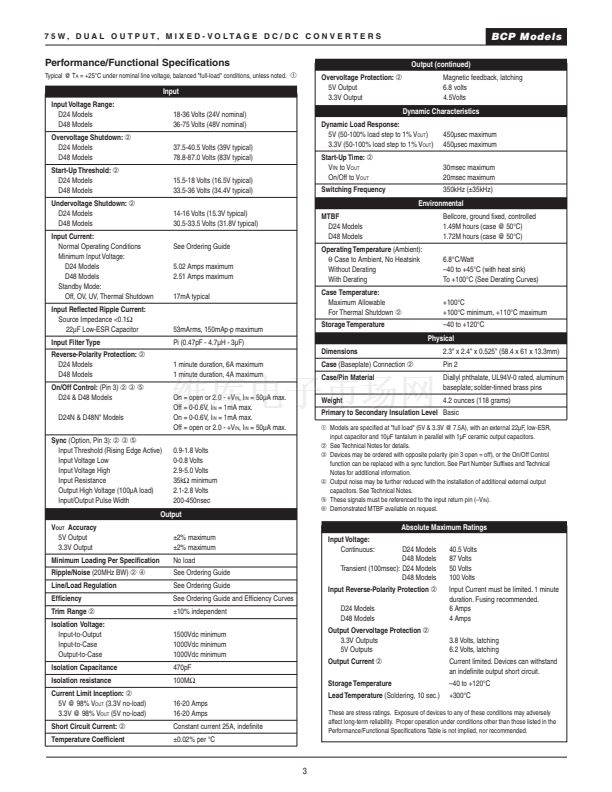

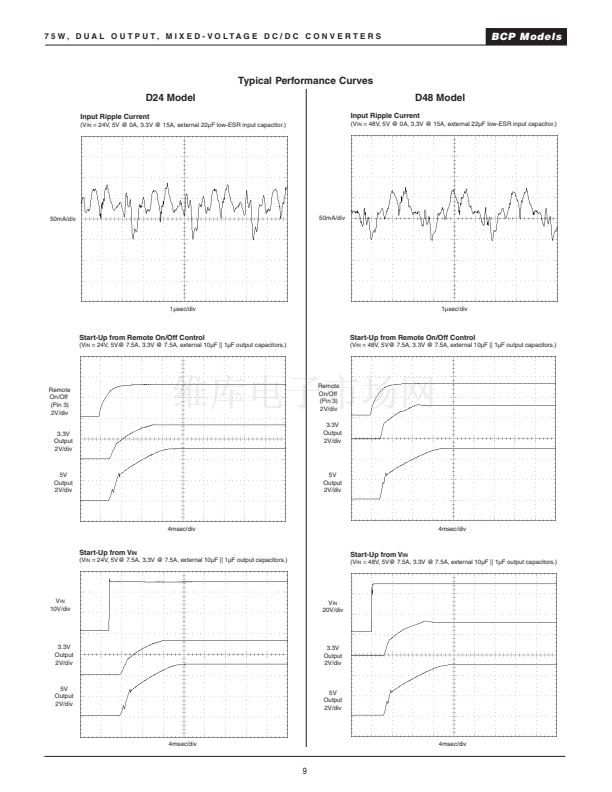

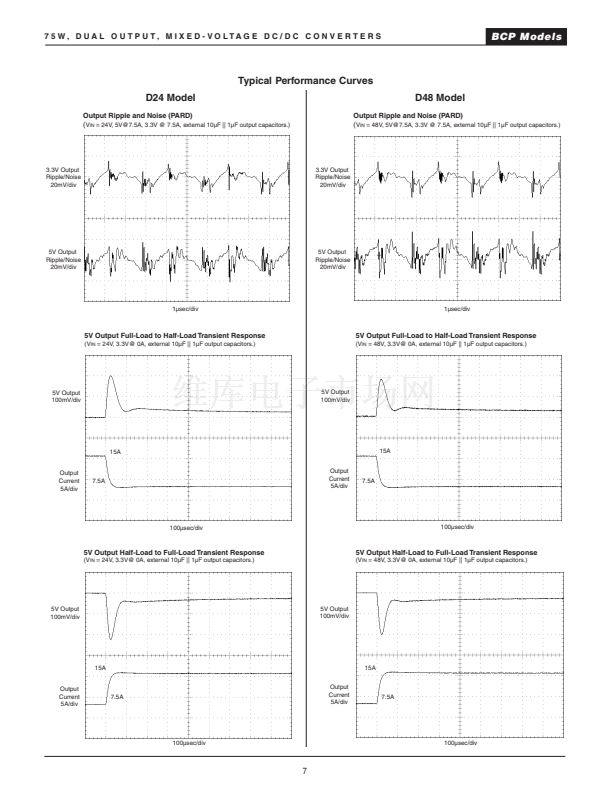

BCP Model DC/DC鈥檚 deliver low noise (50mVp-p), high ef鏗乧iency (87%) and are
fully speci鏗乪d for 鈥?0 to +100擄C operation. Utilization of metal baseplate technology
with threaded inserts permits easy heat-sink attachment and/or pcb mounting. These
devices meet IEC950, UL1950, EN60950 and VDE safety standards, including
BASIC insulation requirements. CB reports are available on request. "D48" models
are CE marked (meet the requirements of LVD).
+INPUT
+5V OUTPUT
SWITCH
CONTROL
5V RETURN
+3.3V OUTPUT
鈥揑NPUT
3.3V RETURN
MAG AMP
CONTROLLER
REFERENCE &
ERROR AMP
ON/OFF
CONTROL
(SYNC)
PWM
CONTROLLER
UV & OV
COMPARATORS
3.3V TRIM
OPTO
ISOLATION
REFERENCE &
ERROR AMP
5V TRIM
Figure 1. Simpli鏗乪d Schematic
DATEL, Inc., Mans鏗乪ld, MA 02048 (USA) 路 Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356 路 Email: sales@datel.com 路 Internet: www.datel.com
