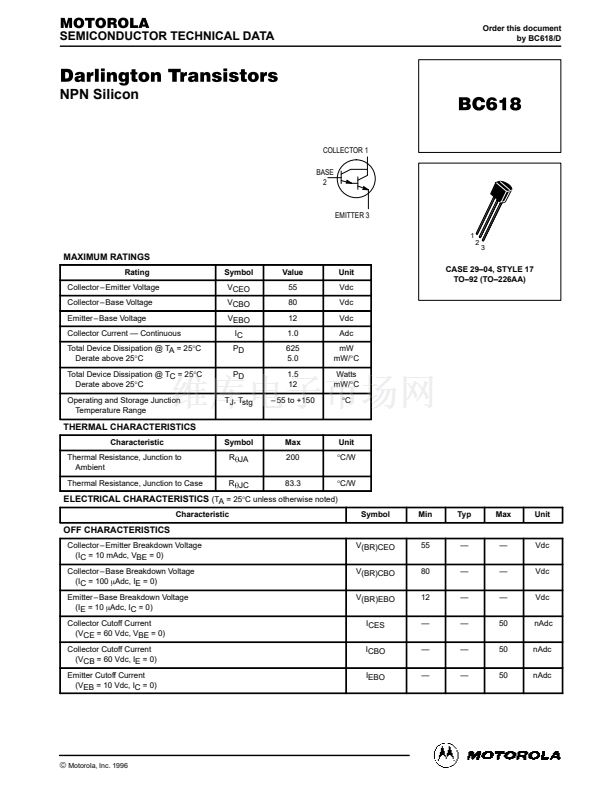

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by BC618/D
Darlington Transistors
NPN Silicon
COLLECTOR 1
BASE
2
BC618
EMITTER 3
1
2
3
MAXIMUM RATINGS
Rating
Collector 鈥?Emitter Voltage
Collector 鈥?Base Voltage
Emitter 鈥?Base Voltage
Collector Current 鈥?Continuous
Total Device Dissipation @ TA = 25擄C
Derate above 25擄C
Total Device Dissipation @ TC = 25擄C
Derate above 25擄C
Operating and Storage Junction
Temperature Range
Symbol
VCEO
VCBO
VEBO
IC
PD
PD
TJ, Tstg
Value
55
80
12
1.0
625
5.0
1.5
12
鈥?55 to +150
Unit
Vdc
Vdc
Vdc
Adc
mW
mW/擄C
Watts
mW/擄C
擄C

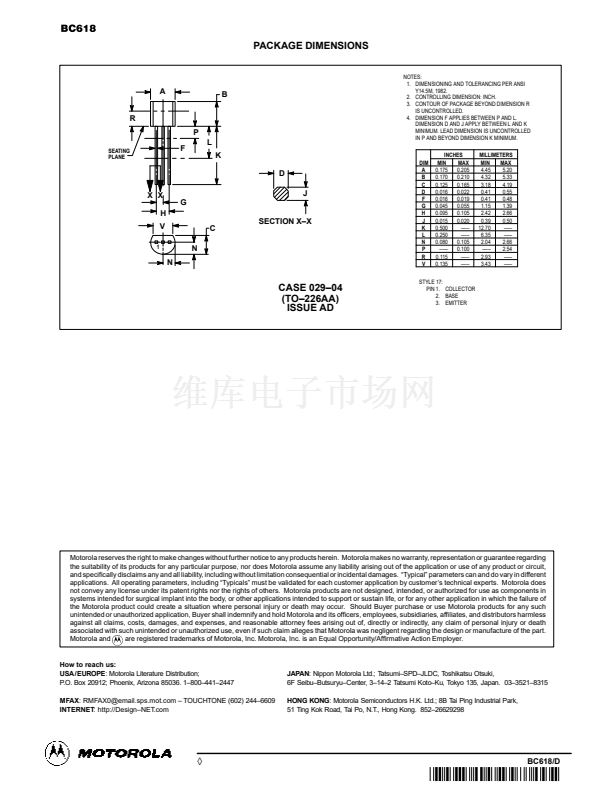

CASE 29鈥?4, STYLE 17
TO鈥?2 (TO鈥?26AA)
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to
Ambient
Thermal Resistance, Junction to Case
Symbol
R
q
JA
R
q
JC
Max
200
83.3
Unit
擄C/W
擄C/W
ELECTRICAL CHARACTERISTICS
(TA = 25擄C unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
OFF CHARACTERISTICS
Collector 鈥?Emitter Breakdown Voltage
(IC = 10 mAdc, VBE = 0)
Collector 鈥?Base Breakdown Voltage
(IC = 100
m
Adc, IE = 0)
Emitter 鈥?Base Breakdown Voltage
(IE = 10
m
Adc, IC = 0)
Collector Cutoff Current
(VCE = 60 Vdc, VBE = 0)
Collector Cutoff Current
(VCB = 60 Vdc, IE = 0)
Emitter Cutoff Current
(VEB = 10 Vdc, IC = 0)
V(BR)CEO
V(BR)CBO
V(BR)EBO
ICES
ICBO
IEBO
55
80
12
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
50
50
50
Vdc
Vdc
Vdc
nAdc
nAdc
nAdc
Motorola Small鈥揝ignal Transistors, FETs and Diodes Device Data
漏
Motorola, Inc. 1996
1
