B07
Miniature Series 07
General Purpose Filter/Regulator
1/8" and 1/4" Port Sizes
q
Compact design
q
Full flow gauge ports
q
Low torque, non-rising adjusting knob
q
Snap action knob locks pressure setting when
pushed in
q
Standard relieving models allow reduction of outlet
pressure even when the system is dead-ended
q
Protects air operated devices by removing liquid and
solids contaminants
q
Screw-on bowl reduces maintenance time
q
Can be disassembled without the use of tools or
removal from the air line
Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (145 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature:*
Transparent bowl: -20擄 to +50擄C (0擄 to +125擄F)
Metal bowl: -20擄 to +65擄C (0擄 to +150擄F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2擄C (+35擄F)

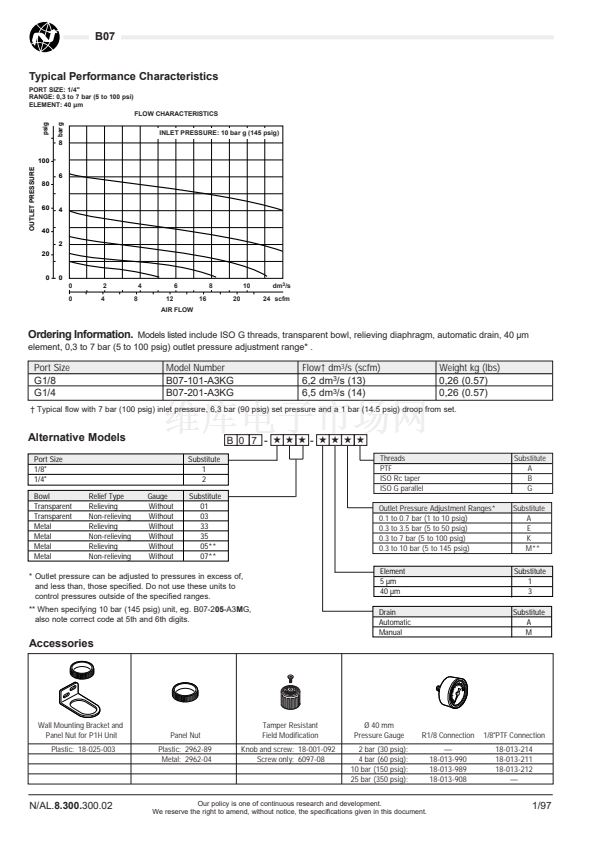

Ordering Information
See
Ordering Information
on the following
pages.
Particle removal: 5 碌m or 40 碌m filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow at 10 bar (100 psig) inlet pressure, 6,3 bar (90 psig) set
ISO Symbols
pressure and a droop of 1 bar (15 psig) from set:
1/8" Ports: 6 dm
3
/s (13 scfm) with 5 碌m element
1/4" Ports: 6 dm
3
/s (13 scfm) with 5 碌m element
Nominal bowl size: 31 ml (1 oz)
Gauge ports:
1/8" PTF with PTF main ports
Automatic Drain
1/8" ISO Rc with ISO Rc main ports
Relieving
1/8" ISO Rc with ISO G main ports
Drain connection: 1/8" pipe
Automatic drain operation: Spitter type drain operates momentarily
when a rapid change in air flow occurs or when the supply
pressure is reduced.
Materials:
Body: Zinc
Automatic Drain
Bonnet: Acetal
Non-relieving
Valve: Brass/nitrile
Valve seat: Acetal
Bowl:
Transparent: Polycarbonate
Metal: Zinc
Element: Sintered polypropylene
Elastomers: Nitrile
1/97
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
Manual Drain
Relieving
Manual Drain
Non-relieving
N/AL.8.300.300.01
