Low Cost
Up to 30 Amp switching capability in a compact size
Small footprint
1 Form A and C contacts available
Vibration and shock resistant
Designed for high in-rush applications
Epoxy sealed
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
Max. switched power: 480 W
Max. switched current: 30 A
Max. switched voltage: 30 VDC
Rated load: 30 A at 16 VDC
Release Time
Minimum operations
1 x 10
6
3 x 10
5
at 20 A 14 VDC Res.
3 ms typical at nominal coil voltage
1.5 ms typical at nominal coil voltage
(with no coil suppression)
Dielectric Strength
500 Vrms coil to contact
(at sea level for 1 min.)
500 Vrms between open contacts
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
100 megohms min. at 20擄C, 500 VDC
50% RH
Greater than 12.5% of nominal coil voltage
At nominal coil voltage
-40擄C (-40擄F) to 85擄C (185擄F)
-40擄C (-40擄F) to 105擄C (221擄F)
6 g at 10-500 Hz
30 g, 6 ms
P.B.T. polyester
Tinned copper allloy, P.C.
4 grams
Material
Resistance
Silver tin oxide, silver nickel (AgNi 0.15)
< 50 milliohms initially
(6 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max Temperature
187 mW
2.6 W at 20擄C (68擄F) ambient
60擄C (108擄F) at nominal coil voltage
155擄C (311擄F)
Shock
Enclosure
Terminals
Weight

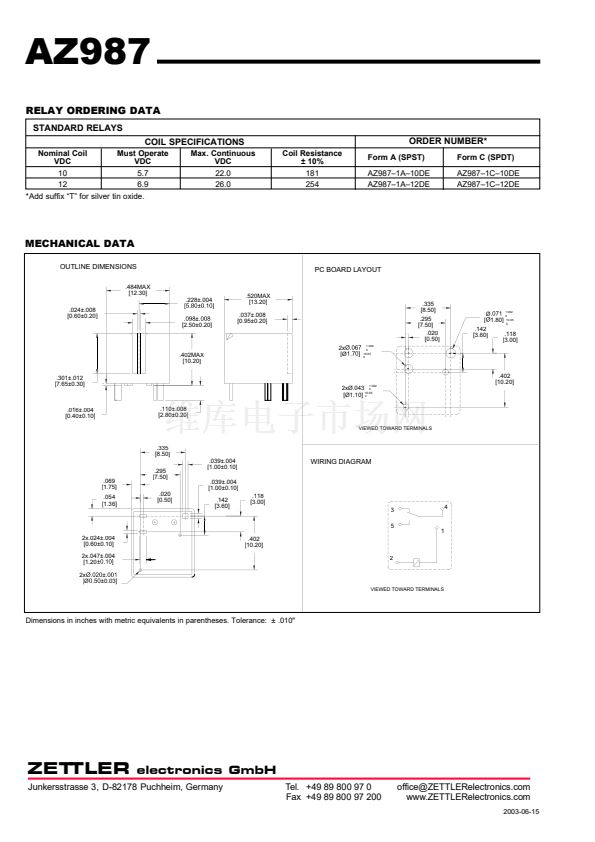

NOTES
1. All values at 20擄C (68擄F).
2. Relay may pull in with less than 鈥淢ust Operate鈥?value.
3. Specifications subject to change without notice.
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2003-06-15
Junkersstrasse 3, D-82178 Puchheim, Germany
