Epoxy sealed version available
CONTACTS
Arrangement
Ratings
SPST (N.O.) (1 Form A)
SPDT (1 Form C), SPST (N.C.) (1 Form B)
Resistive load:
Max. switched power: 1120 W (SPST) Form A
840 W (N.O.) Form C
840 W (N.C.) Form C,
Form B
Max. switched current: 80 A (SPST) Form A
60 A (N.O.) Form C
60 A (N.C.) Form C,
Form B
Max. switched voltage: 30 VDC
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 80 A 14 VDC Res.
7 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
500 Vrms coil to contact
(at sea level for 1 min.)
500 Vrms contact to contact
Insulation Resistance
Dropout
100 megohms min. at 500 VDC, 20擄C
50% RH
Greater than 10% of nominal coil voltage
-40擄C (-40擄F) to 85擄C (185擄F)
-40擄C (-40擄F) to 105擄C (221擄F)
0.062" (1.5 mm) DA at 10-55 Hz
10 g
P.B.T. polyester
Copper alloy
PCB
40 grams
Material
Resistance
Silver tin oxide
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Ambient Temperature
Operating
Storage
Vibration
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
0.76 W
3.0 W at 20擄C (68擄F)
68擄C (122擄F) at nominal coil voltage
Max.155擄C (311擄F)
Shock
Enclosure
Terminals
Weight

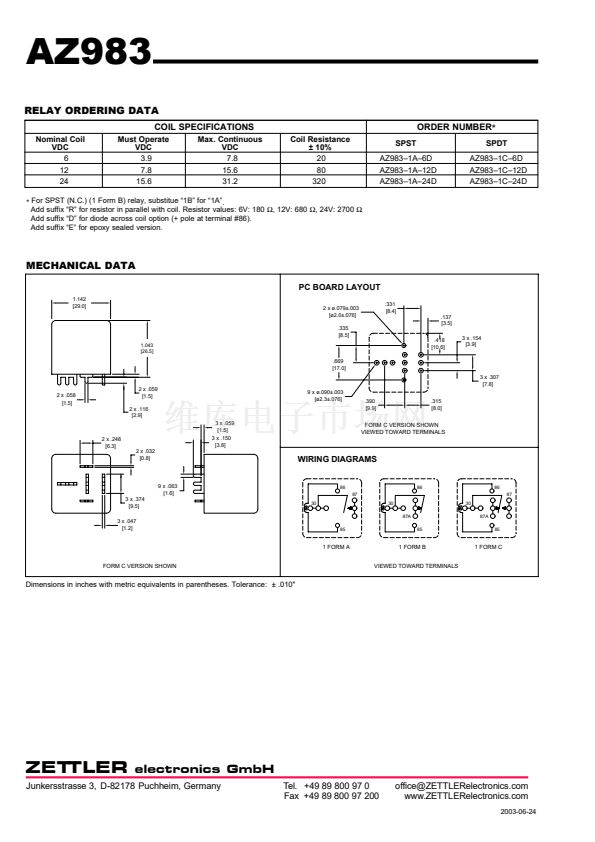

NOTES
1. All values at 20擄C (68擄F).
2. Relay may pull in with less than 鈥淢ust Operate鈥?value.
3. Specifications subject to change without notice.
