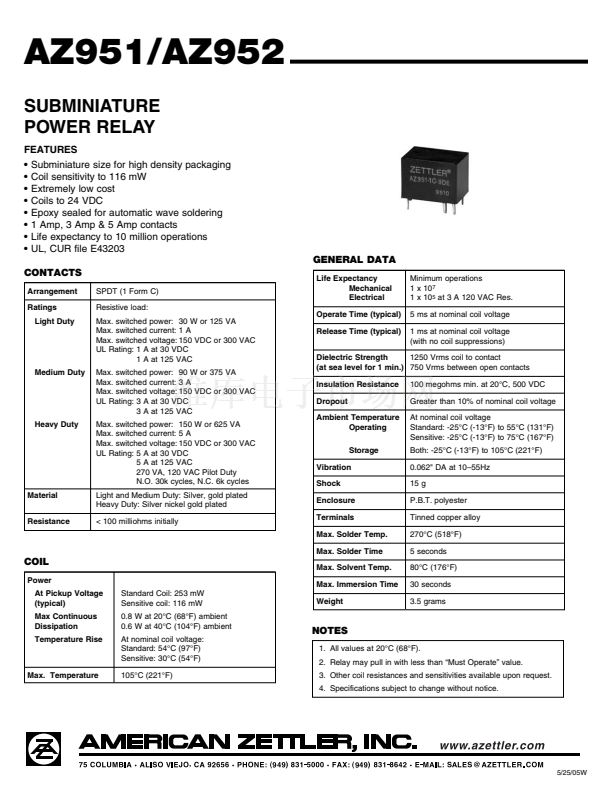

Subminiature size for high density packaging
Coil sensitivity to 116 mW
Extremely low cost
Coils to 24 VDC
Epoxy sealed for automatic wave soldering
1 Amp, 3 Amp & 5 Amp contacts
Life expectancy to 10 million operations
UL, CUR file E43203
GENERAL DATA
CONTACTS
Arrangement
Ratings
Light Duty
SPDT (1 Form C)
Resistive load:
Max. switched power: 30 W or 125 VA
Max. switched current: 1 A
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 1 A at 30 VDC
1 A at 125 VAC
Max. switched power: 90 W or 375 VA
Max. switched current: 3 A
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 3 A at 30 VDC
3 A at 125 VAC
Max. switched power: 150 W or 625 VA
Max. switched current: 5 A
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 5 A at 30 VDC
5 A at 125 VAC
270 VA, 120 VAC Pilot Duty
N.O. 30k cycles, N.C. 6k cycles
Light and Medium Duty: Silver, gold plated
Heavy Duty: Silver nickel gold plated
< 100 milliohms initially
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 3 A 120 VAC Res.
5 ms at nominal coil voltage
1 ms at nominal coil voltage
(with no coil suppressions)
Medium Duty
Dielectric Strength
1250 Vrms coil to contact
(at sea level for 1 min.)
750 Vrms between open contacts
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
100 megohms min. at 20擄C, 500 VDC
Greater than 10% of nominal coil voltage
At nominal coil voltage
Standard: -25擄C (-13擄F) to 55擄C (131擄F)
Sensitive: -25擄C (-13擄F) to 75擄C (167擄F)
Both: -25擄C (-13擄F) to 105擄C (221擄F)
0.062" DA at 10鈥?5Hz
15 g
P.B.T. polyester
Tinned copper alloy
270擄C (518擄F)
5 seconds
80擄C (176擄F)
30 seconds
3.5 grams
Heavy Duty
Material
Resistance

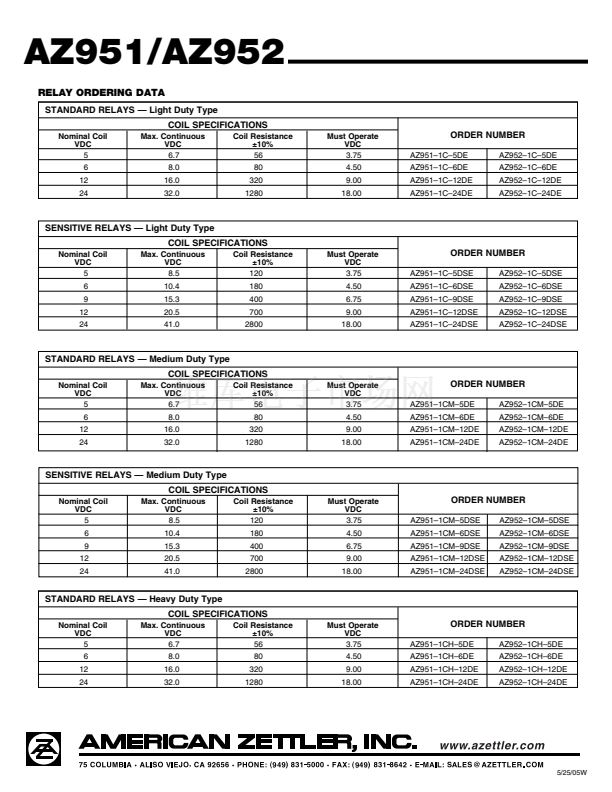

COIL
Power
At Pickup Voltage
(typical)
Max Continuous
Dissipation
Temperature Rise
Standard Coil: 253 mW
Sensitive coil: 116 mW
0.8 W at 20擄C (68擄F) ambient
0.6 W at 40擄C (104擄F) ambient
At nominal coil voltage:
Standard: 54擄C (97擄F)
Sensitive: 30擄C (54擄F)
105擄C (221擄F)
Max. Solvent Temp.
Max. Immersion Time
Weight

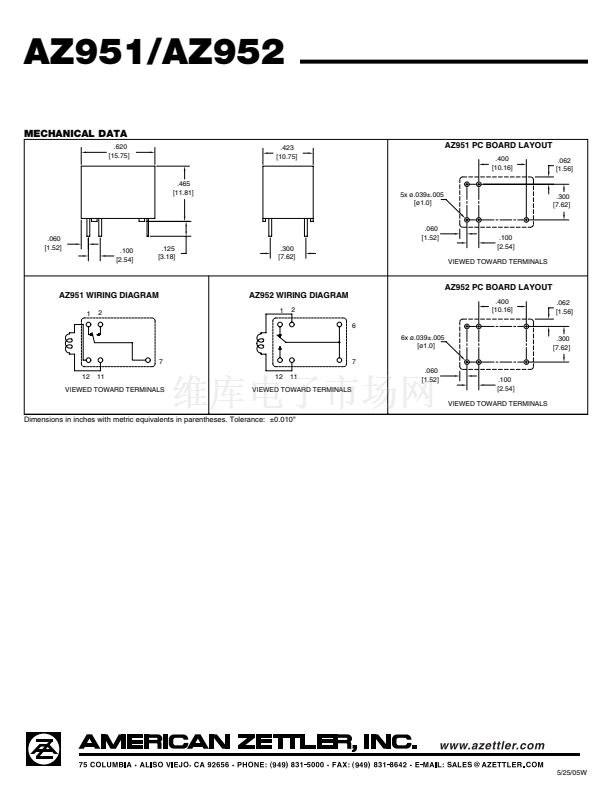

NOTES
1. All values at 20擄C (68擄F).
2. Relay may pull in with less than 鈥淢ust Operate鈥?value.
3. Other coil resistances and sensitivities available upon request.
4. Specifications subject to change without notice.
Max. Temperature
