AC coils
Dielectric strength 5000 Vrms
Low cost
Flux tight package
5 Amp switching - double pole contacts
Isolation spacing greater than 8mm
Molded materials: all 94V-0
UL and Canadian file E43203
CONTACTS
Arrangement
Ratings
DPST (2 Form A)
DPDT (2 Form C)
Resistive load:
Max. switched power: 150 W, 1250 VA
Max. switched current: 5 A
Max. switched voltage: 150 VDC/400 VAC
Inductive load:
(cos
脴
=0.4)
Max. switched power: 90W or 500VA
Max. Switched current: 5A
Max. switched voltage: 125VDC or 400 VAC
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at rated load
8 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
3000 Vrms between contact sets
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
1000 megohms min. at 20擄C,
500 VDC 50% RH
Greater than 30%
of nominal coil voltage
At nominal coil voltage
-40擄C (-40擄F) to 70擄C (158擄F)
-40擄C (-40擄F) to 105擄C (221擄F)
0.062" DA at 10鈥?5 Hz
10 g
PC (94V-0)
Tinned copper alloy, P.C.
270擄C (518擄F)
5 seconds
17 grams
Rated Load
UL, CUR
5 A 250 VAC, resistive
5 A 30VDC resistive
1
/ HP 240 VAC
3
5 VDC, .01A
Silver alloy
30 milliohms initially (6V, 1A method)
Min. Load
Material
Resistance
Shock

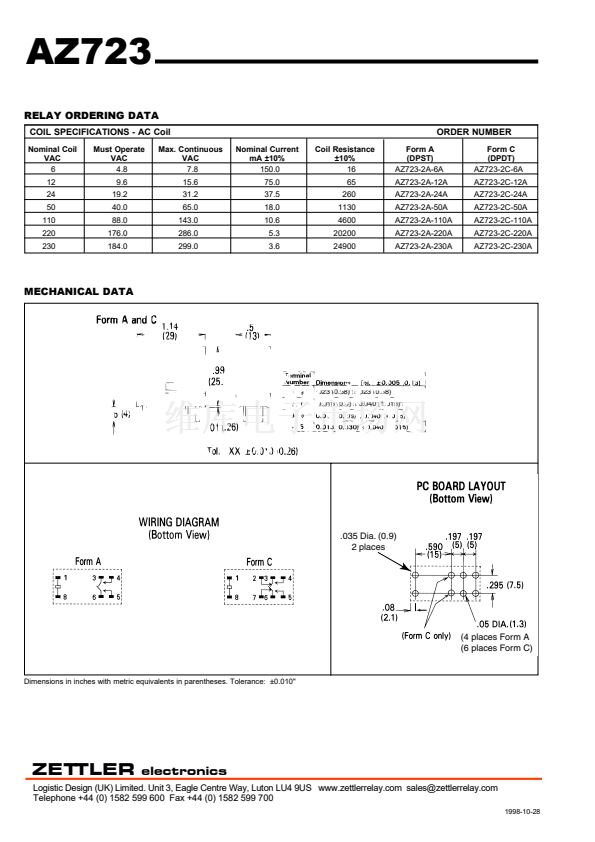

COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
576 mW
1.5 W at 20擄C (68擄F) ambient
1.2 W at 40擄C (104擄F) ambient
36擄C (97擄F) at nominal coil voltage
Max. 105擄C (221擄F)
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Weight
NOTES
1. All values at 20擄C (68擄F).
2. Relay may pull in with less than 鈥淢ust Operate鈥?value.
3. Specifications subject to change without notice.
ZETTLER
electronics
1998-10-28
Logistic Design (UK) Limited. Unit 3, Eagle Centre Way, Luton LU4 9US www.zettlerrelay.com sales@zettlerrelay.com
Telephone +44 (0) 1582 599 600 Fax +44 (0) 1582 599 700
