Three-Year Lamp Warranty
Note:brake/tail lamps may not work with some older
(10+ Years)
LED
thermal flasher units.
An LED brake/tail lamp will require an electronic
flasher/blinker unit which is commonly available at your
local auto parts store.
1.41
[35.8]
1.25
[31.75]
Lower pin in line
with LEDs

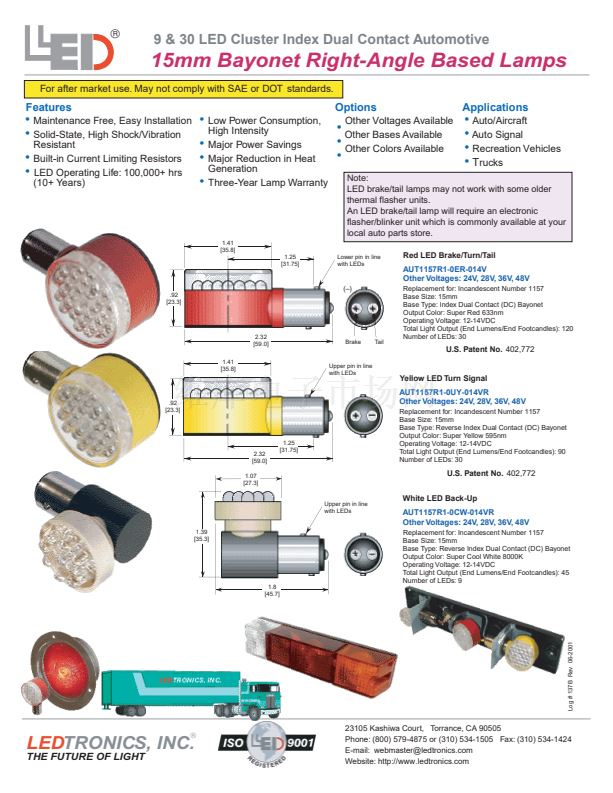

Red LED Brake/Turn/Tail
AUT1157R1-0ER-014V
Other Voltages: 24V, 28V, 36V, 48V
Replacement for: Incandescent Number 1157
Base Size: 15mm
Base Type: Index Dual Contact (DC) Bayonet
Output Color: Super Red 633nm
Operating Voltage: 12-14VDC
Total Light Output (End Lumens/End Footcandles): 120
Number of LEDs: 30
(鈥?
.92
[23.3]
+ +
2.32
[59.0]
1.41
[35.8]
Brake
Tail
U.S. Patent No.
402,772
Upper pin in line
with LEDs
Yellow LED Turn Signal
AUT1157R1-0UY-014VR
Other Voltages: 24V, 28V, 36V, 48V
.92
[23.3]
+ 鈥?/div>
1.25
[31.75]
2.32
[59.0]
1.07
[27.3]
Replacement for: Incandescent Number 1157
Base Size: 15mm
Base Type: Reverse Index Dual Contact (DC) Bayonet
Output Color: Super Yellow 595nm
Operating Voltage: 12-14VDC
Total Light Output (End Lumens/End Footcandles): 90
Number of LEDs: 30
U.S. Patent No.
402,772
White LED Back-Up
AUT1157R1-0CW-014VR
Other Voltages: 24V, 28V, 36V, 48V
Replacement for: Incandescent Number 1157
Base Size: 15mm
Base Type: Reverse Index Dual Contact (DC) Bayonet
Output Color: Super Cool White 8000K
Operating Voltage: 12-14VDC
Total Light Output (End Lumens/End Footcandles): 45
Number of LEDs: 9
Upper pin in line
with LEDs
1.39
[35.3]
+ 鈥?/div>
1.8
[45.7]
LEDTRONICS,
INC.
THE FUTURE OF LIGHT
錚?/div>
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Log # 137B Rev 06-2001
