ATF2500C-15JI Datasheet

  • ATF2500C-15JI

  • ATF2500C CPLD Family Datasheet

  • 20頁

  • ATMEL   ATMEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

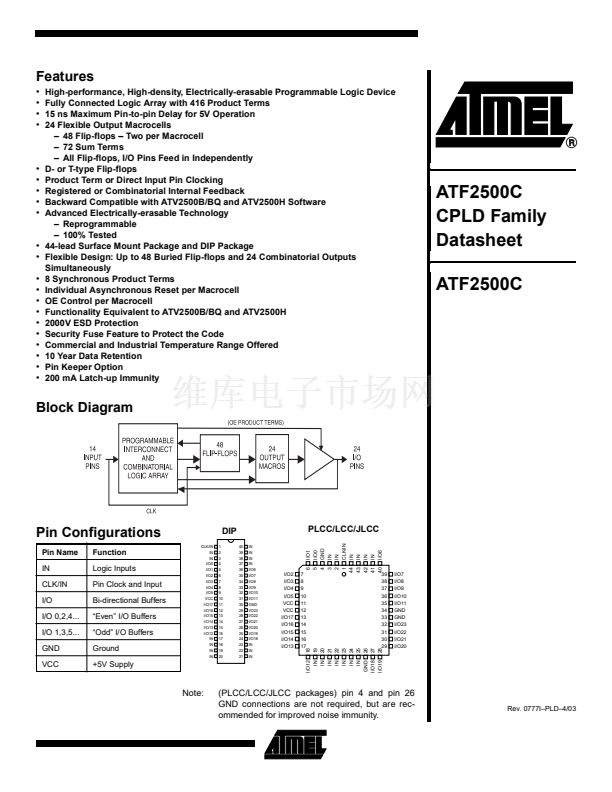

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High-performance, High-density, Electrically-erasable Programmable Logic Device
Fully Connected Logic Array with 416 Product Terms
15 ns Maximum Pin-to-pin Delay for 5V Operation
24 Flexible Output Macrocells
鈥?48 Flip-flops 鈥?Two per Macrocell
鈥?72 Sum Terms
鈥?All Flip-flops, I/O Pins Feed in Independently
D- or T-type Flip-flops
Product Term or Direct Input Pin Clocking
Registered or Combinatorial Internal Feedback
Backward Compatible with ATV2500B/BQ and ATV2500H Software
Advanced Electrically-erasable Technology
鈥?Reprogrammable
鈥?100% Tested
44-lead Surface Mount Package and DIP Package
Flexible Design: Up to 48 Buried Flip-flops and 24 Combinatorial Outputs
Simultaneously
8 Synchronous Product Terms
Individual Asynchronous Reset per Macrocell
OE Control per Macrocell
Functionality Equivalent to ATV2500B/BQ and ATV2500H
2000V ESD Protection
Security Fuse Feature to Protect the Code
Commercial and Industrial Temperature Range Offered
10 Year Data Retention
Pin Keeper Option
200 mA Latch-up Immunity
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ATF2500C
CPLD Family
Datasheet
ATF2500C
Block Diagram
Pin Configurations
Pin Name
IN
CLK/IN
I/O
I/O 0,2,4...
I/O 1,3,5...
GND
VCC
Function
Logic Inputs
Pin Clock and Input
Bi-directional Buffers
鈥淓ven鈥?I/O Buffers
鈥淥dd鈥?I/O Buffers
Ground
+5V Supply
CLK/IN
IN
IN
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
VCC
I/O17
I/O16
I/O15
I/O14
I/O13
I/O12
IN
IN
IN
IN
DIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
IN
IN
IN
IN
I/O6
I/O7
I/O8
I/O9
I/O10
I/O11
GND
I/O23
I/O22
I/O21
I/O20
I/O19
I/O18
IN
IN
IN
PLCC/LCC/JLCC
I/O1
I/O0
GND
IN
IN
CLK/IN
IN
IN
IN
IN
I/O6
I/O12
IN
IN
IN
IN
IN
IN
IN
GND
I/O18
I/O19
18
19
20
21
22
23
24
25
26
27
28
I/O2
I/O3
I/O4
I/O5
VCC
VCC
I/O17
I/O16
I/O15
I/O14
I/O13
7
8
9
10
11
12
13
14
15
16
17
6
5
4
3
2
1
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
I/O7
I/O8
I/O9
I/O10
I/O11
GND
GND
I/O23
I/O22
I/O21
I/O20
Note:
(PLCC/LCC/JLCC packages) pin 4 and pin 26
GND connections are not required, but are rec-
ommended for improved noise immunity.
Rev. 0777I鈥揚LD鈥?/03
1

ATF2500C-15JI 產品屬性

  • 27

  • 集成電路 (IC)

  • 嵌入式 - CPLD（復雜可編程邏輯器件）

  • ATF2500C(L)

  • 系統內可編程

  • 15.0ns

  • 4.5 V ~ 5.5 V

  • -

  • 24

  • -

  • 24

  • -40°C ~ 85°C

  • 表面貼裝

  • 44-LCC（J 形引線）

  • 44-PLCC

  • 管件
