ASM2P2304NZF-08-TR Datasheet

  • ASM2P2304NZF-08-TR

  • Four Output PCI-X and General Purpose Buffer

  • 8頁

  • ALSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

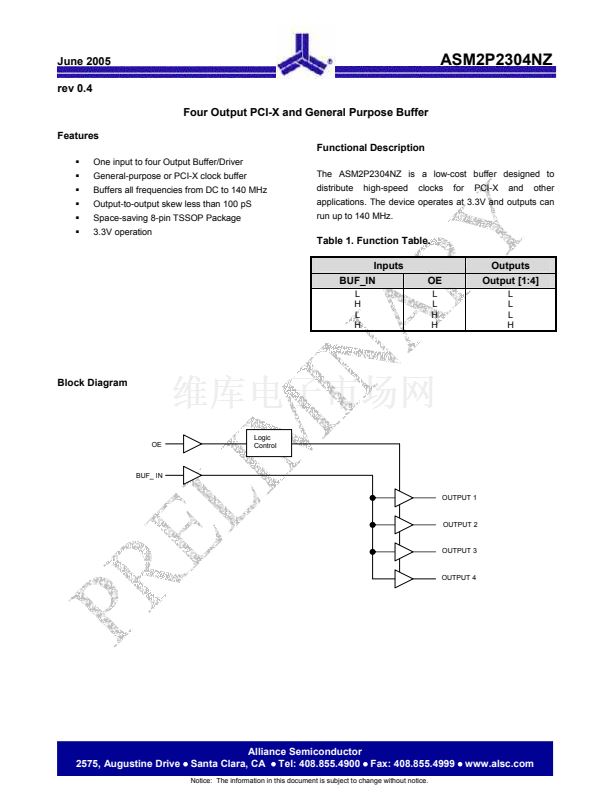

June 2005
rev 0.4
Four Output PCI-X and General Purpose Buffer
Features
Functional Description
One input to four Output Buffer/Driver
General-purpose or PCI-X clock buffer
Buffers all frequencies from DC to 140 MHz
Output-to-output skew less than 100 pS
Space-saving 8-pin TSSOP Package
3.3V operation
ASM2P2304NZ
The ASM2P2304NZ is a low-cost buffer designed to
distribute
high-speed
clocks
for
PCI-X
and
other
applications. The device operates at 3.3V and outputs can
run up to 140 MHz.
Table 1. Function Table.
Inputs
BUF_IN
L
H
L
H
Outputs
OE
L
L
H
H
Output [1:4]
L
L
L
H
Block Diagram
OE
Logic
Control
BUF_ IN
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
Alliance Semiconductor
2575, Augustine Drive
鈥?/div>
Santa Clara, CA
鈥?/div>
Tel: 408.855.4900
鈥?/div>
Fax: 408.855.4999
鈥?/div>
www.alsc.com
Notice: The information in this document is subject to change without notice.
