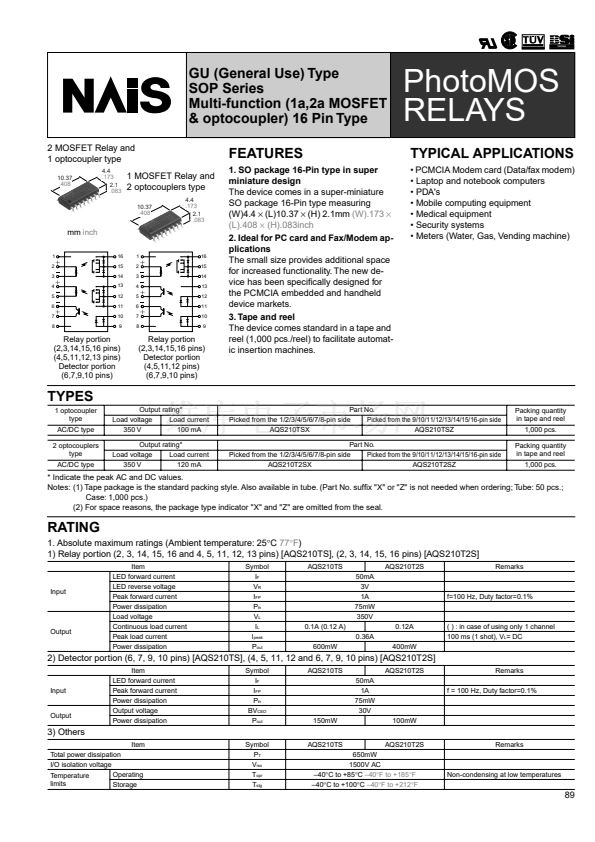

AQS210TS, 210T2S
TESTING
GU (General Use) Type
SOP Series
Multi-function (1a,2a MOSFET
& optocoupler) 16 Pin Type
2 MOSFET Relay and
1 optocoupler type
10.37
.408
4.4
.173
2.1
.083
PhotoMOS
RELAYS
TYPICAL APPLICATIONS
鈥?PCMCIA Modem card (Data/fax modem)
鈥?Laptop and notebook computers
鈥?PDA's
鈥?Mobile computing equipment
鈥?Medical equipment
鈥?Security systems
鈥?Meters (Water, Gas, Vending machine)
FEATURES
1. SO package 16-Pin type in super
miniature design
The device comes in a super-miniature
SO package 16-Pin type measuring
(W)4.4
脳
(L)10.37
脳
(H) 2.1mm
(W).173
脳
(L).408
脳
(H).083inch
2. Ideal for PC card and Fax/Modem ap-
plications
The small size provides additional space
for increased functionality. The new de-
vice has been speci鏗乧ally designed for
the PCMCIA embedded and handheld
device markets.
3. Tape and reel
The device comes standard in a tape and
reel (1,000 pcs./reel) to facilitate automat-
ic insertion machines.
1 MOSFET Relay and
2 optocouplers type
10.37
.408
4.4
.173
2.1
.083
mm
inch
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Relay portion
(2,3,14,15,16 pins)
(4,5,11,12,13 pins)
Detector portion
(6,7,9,10 pins)
Relay portion
(2,3,14,15,16 pins)
Detector portion
(4,5,11,12 pins)
(6,7,9,10 pins)
TYPES
1 optocoupler
type
AC/DC type
2 optocouplers
type
AC/DC type
Output rating*
Load voltage
Load current
350 V
100 mA
Output rating*
Load voltage
Load current
350 V
120 mA
Part No.
Picked from the 9/10/11/12/13/14/15/16-pin side
Picked from the 1/2/3/4/5/6/7/8-pin side
AQS210TSX
AQS210TSZ
Part No.
Picked from the 9/10/11/12/13/14/15/16-pin side
Picked from the 1/2/3/4/5/6/7/8-pin side
AQS210T2SX
AQS210T2SZ
Packing quantity
in tape and reel
1,000 pcs.
Packing quantity
in tape and reel
1,000 pcs.
* Indicate the peak AC and DC values.
Notes: (1) Tape package is the standard packing style. Also available in tube. (Part No. suf鏗亁 "X" or "Z" is not needed when ordering; Tube: 50 pcs.;
Case: 1,000 pcs.)
(2) For space reasons, the package type indicator "X" and "Z" are omitted from the seal.
RATING
1. Absolute maximum ratings (Ambient temperature: 25
擄
C
77
擄
F)
1) Relay portion (2, 3, 14, 15, 16 and 4, 5, 11, 12, 13 pins) [AQS210TS], (2, 3, 14, 15, 16 pins) [AQS210T2S]
Item
LED forward current
LED reverse voltage
Peak forward current
Power dissipation
Load voltage
Continuous load current
Peak load current
Power dissipation
Symbol
I
F
V
R
I
FP
P
in
V
L
I
L
I
peak
P
out
AQS210TS
50mA
3V
1A
75mW
350V
0.1A (0.12 A)
0.36A
600mW
400mW
0.12A
AQS210T2S
Remarks
Input
f=100 Hz, Duty factor=0.1%
Output
( ) : in case of using only 1 channel
100 ms (1 shot), V
L
= DC
2) Detector portion (6, 7, 9, 10 pins) [AQS210TS], (4, 5, 11, 12 and 6, 7, 9, 10 pins) [AQS210T2S]
Item
LED forward current
Peak forward current
Power dissipation
Output voltage
Power dissipation
Symbol
I
F
I
FP
P
in
BV
CEO
P
out
AQS210TS
50mA
1A
75mW
30V
150mW
100mW
AQS210T2S
Remarks
f = 100 Hz, Duty factor=0.1%
Input
Output
3) Others
Item
Total power dissipation
I/O isolation voltage
Operating
Temperature
limits
Storage
Symbol
P
T
V
iso
T
opr
T
stg
AQS210TS
AQS210T2S
650mW
1500V AC
鈥?0
擄
C to +85
擄
C
鈥?0
擄
F to +185
擄
F
鈥?0
擄
C to +100
擄
C
鈥?0
擄
F to +212
擄
F
Remarks
Non-condensing at low temperatures
89
1
2
3
4
