AD546K Datasheet

  • AD546K

  • 1 pA Monolithic Electrometer Operational Amplifier

  • 12頁

  • AD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

a
FEATURES

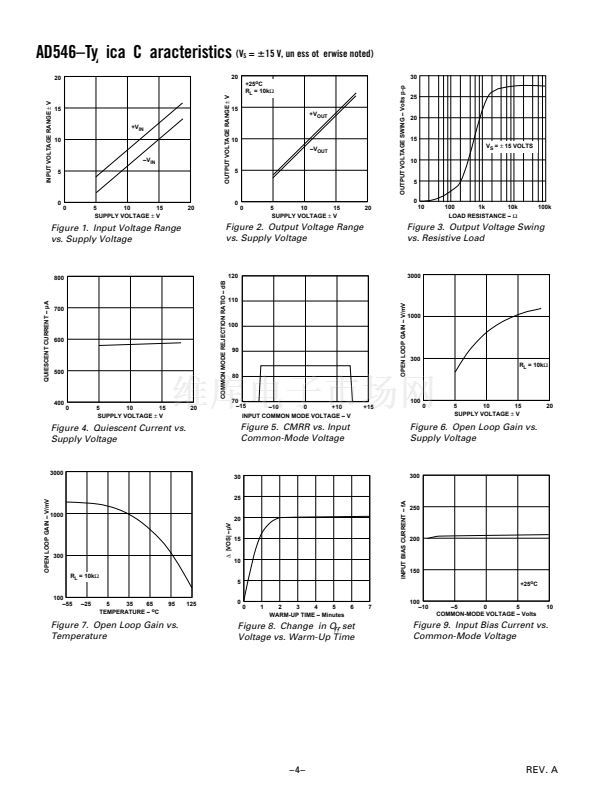

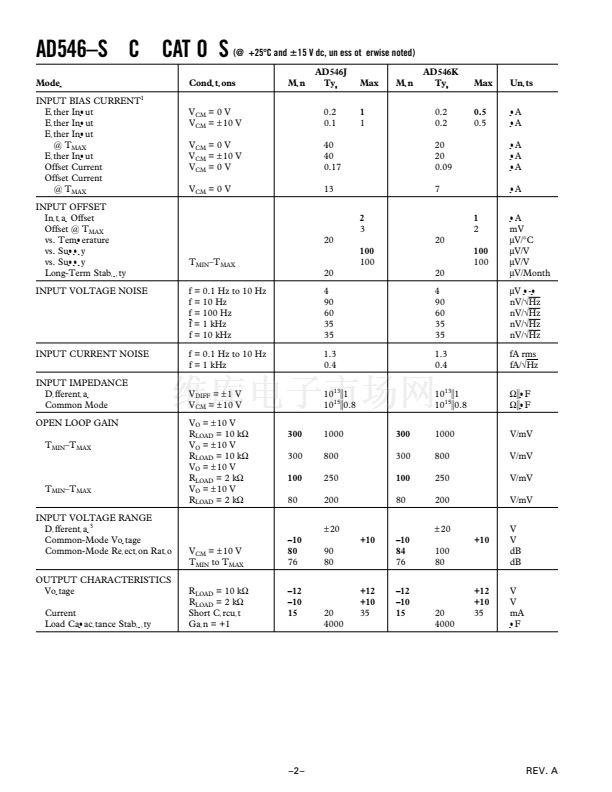

DC PERFORMANCE
1 mV max Input Offset Voltage
Low Offset Drift: 20 V/ C
1 pA max Input Bias Current
Input Bias Current Guaranteed Over Full
Common-Mode Voltage Range

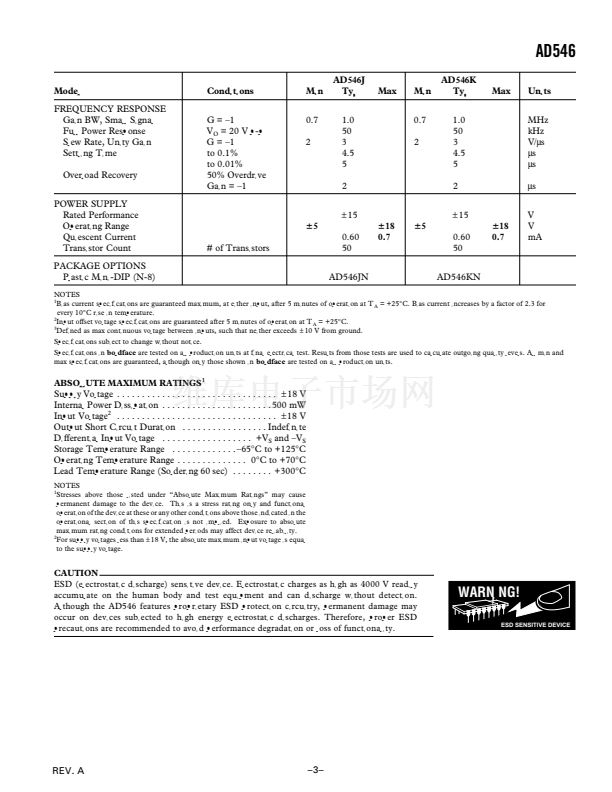

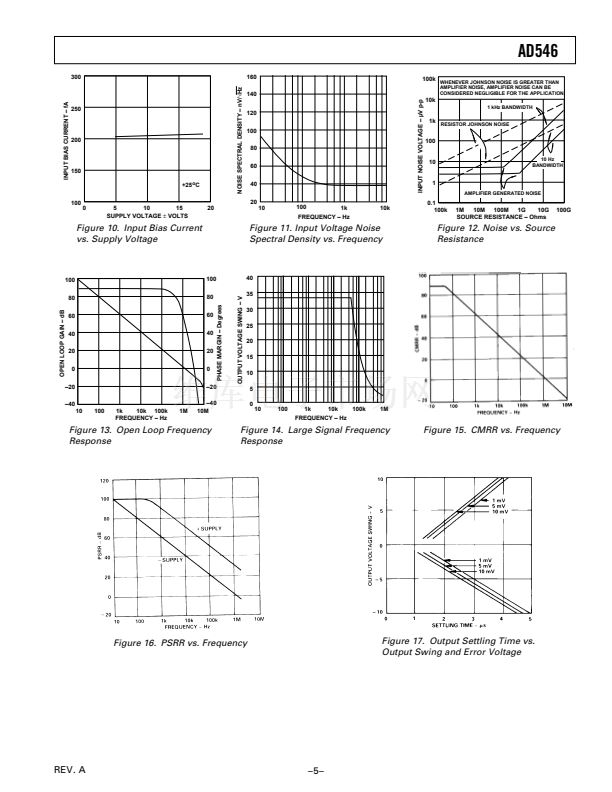

AC PERFORMANCE
3 V/ s Slew Rate
1 MHz Unity Gain Bandwidth
Low Input Voltage Noise: 4 V p-p, 0.1 Hz to 10 Hz
Available in a Low Cost, 8-Pin Plastic Mini-DIP
Standard Op Amp Pinout
APPLICATIONS
Electrometer Amplifiers
Photodiode Preamps
pH Electrode Buffers
Log Ratio Amplifiers
1 pA Monolithic Electrometer
Operational Amplifier
AD546*
CONNECTION DIAGRAM
8-Pin Plastic
Mini-DIP Package
PRODUCT DESCRIPTION
PRODUCT HIGHLIGHTS
The AD546 is a monolithic electrometer combining the virtues
of low (1 pA) input bias current with the cost effectiveness of a
plastic mini-DIP package. Both input offset voltage and input
offset voltage drift are laser trimmed, providing very high perfor-
mance for such a low cost amplifier.
Input bias currents are reduced significantly by using 鈥渢opgate鈥?/div>
JFET technology. The 10
15
鈩?/div>
common-mode impedance,
resulting from a bootstrapped input stage, insures that input
bias current is essentially independent of common-mode voltage
variations.
The AD546 is suitable for applications requiring both minimal
levels of input bias current and low input offset voltage. Appli-
cations for the AD546 include use as a buffer amplifier for cur-
rent output transducers such as photodiodes and pH probes. It
may also be used as a precision integrator or as a low droop rate
sample and hold amplifier. The AD546 is pin compatible with
standard op amps; its plastic mini-DIP package is ideal for use
with automatic insertion equipment.
The AD546 is available in two performance grades, all rated
over the 0擄C to +70擄C commercial temperature range, and
packaged in an 8-pin plastic mini-DIP.
*Covered
by Patent No. 4,639,683.

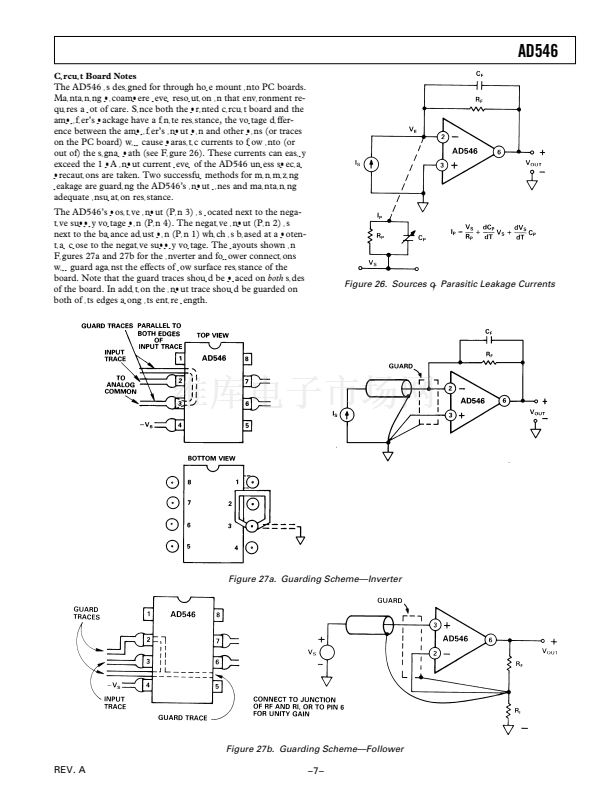

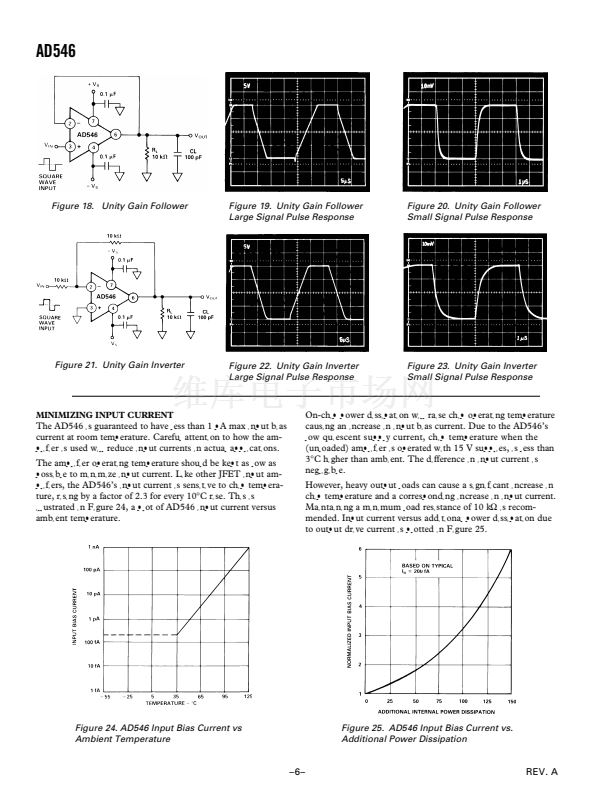

1. The input bias current of the AD546 is specified, 100%
tested and guaranteed with the device in the fully warmed-up
condition.

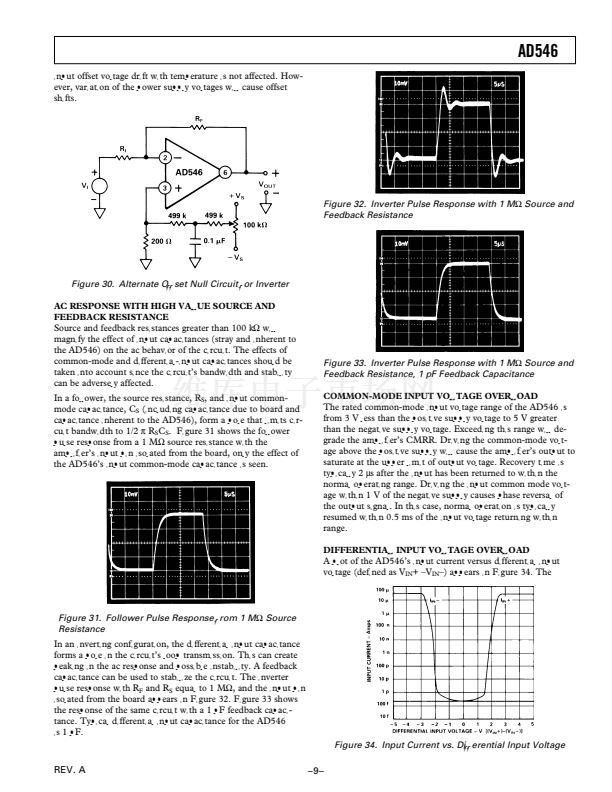

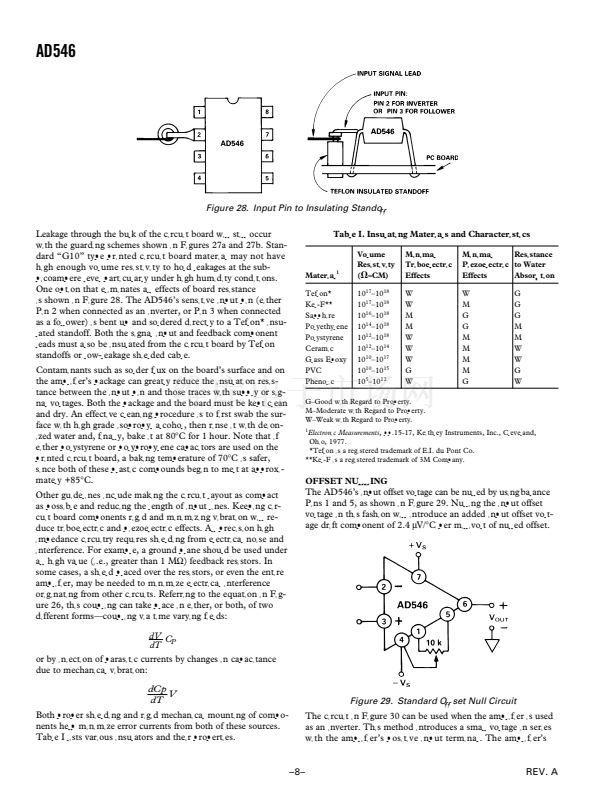

2. The input offset voltage of the AD546 is laser trimmed to
less than 1 mV (AD546K).
3. The AD546 is packaged in a standard, low cost, 8-pin
mini-DIP.
4. A low quiescent supply current of 700
碌A(chǔ)
minimizes any
thermal effects which might degrade input bias current and
input offset voltage specifications.
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700
Fax: 617/326-8703
