AD5232BRU50-REEL7 Datasheet

  • AD5232BRU50-REEL7

  • 8-Bit Dual Nonvolatile Memory Digital Potentiometer

  • 20頁

  • AD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

a
FEATURES
Nonvolatile Memory Preset Maintains Wiper Settings
Dual Channel, 256-Position Resolution

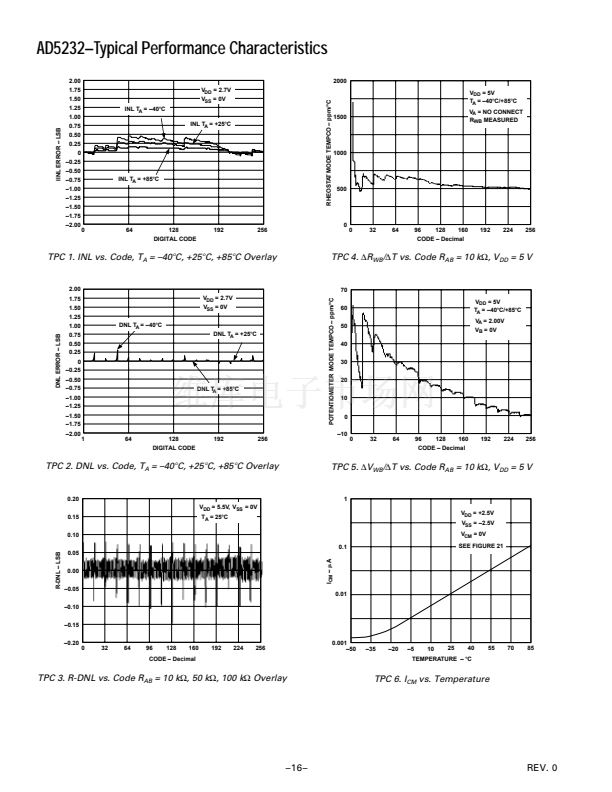

Full Monotonic Operation DNL < 1 LSB
10 k , 50 k , 100 k Terminal Resistance
Linear or Log Taper Settings
Push-Button Increment/Decrement Compatible

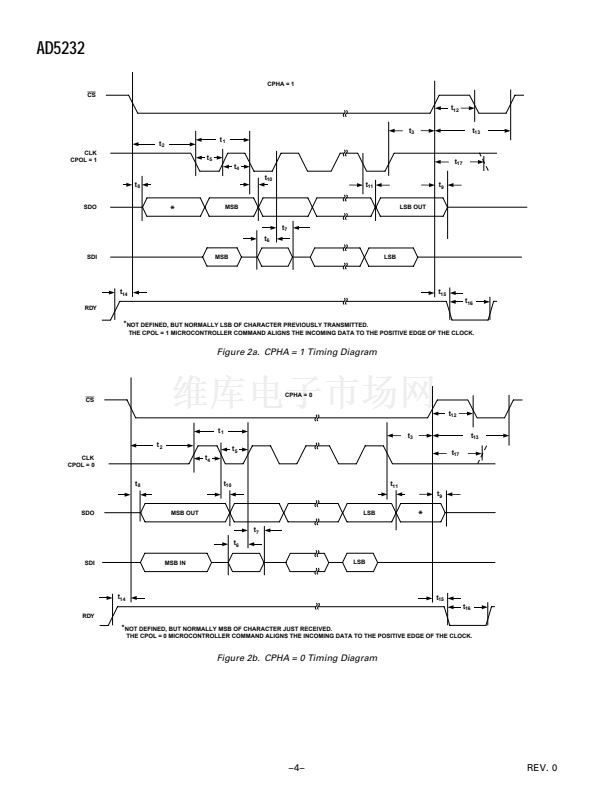

SPI-Compatible Serial Data Input with Readback
Function
3 V to 5 V Single Supply or 2.5 V Dual Supply
Operation
14 Bytes of User EEMEM Nonvolatile Memory for
Constant Storage
Permanent Memory Write Protection
100-Year Typical Data Retention T
A
= 55 C
APPLICATIONS
Mechanical Potentiometer Replacement
Instrumentation: Gain, Offset Adjustment
Programmable Voltage-to-Current Conversion
Programmable Filters, Delays, Time Constants
Line Impedance Matching
Power Supply Adjustment
DIP Switch Setting
GENERAL DESCRIPTION
8-Bit Dual Nonvolatile Memory
Digital Potentiometer
AD5232
*

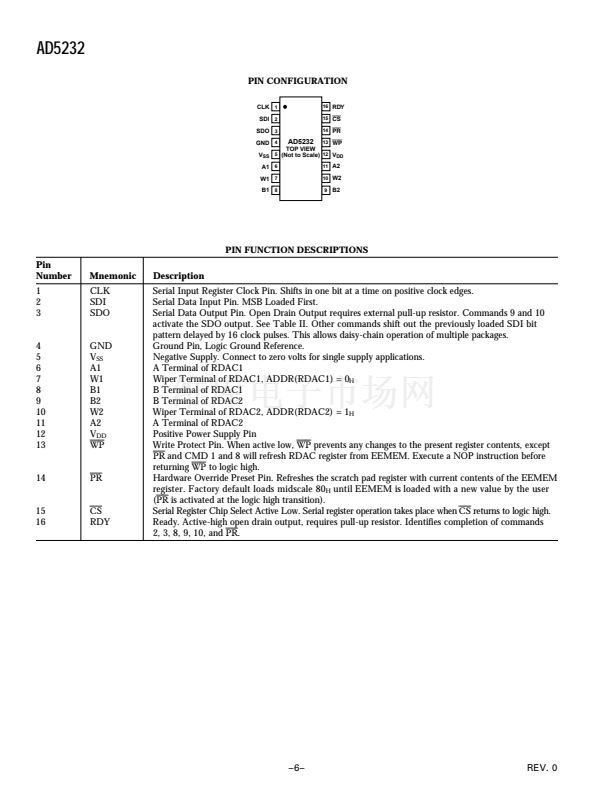

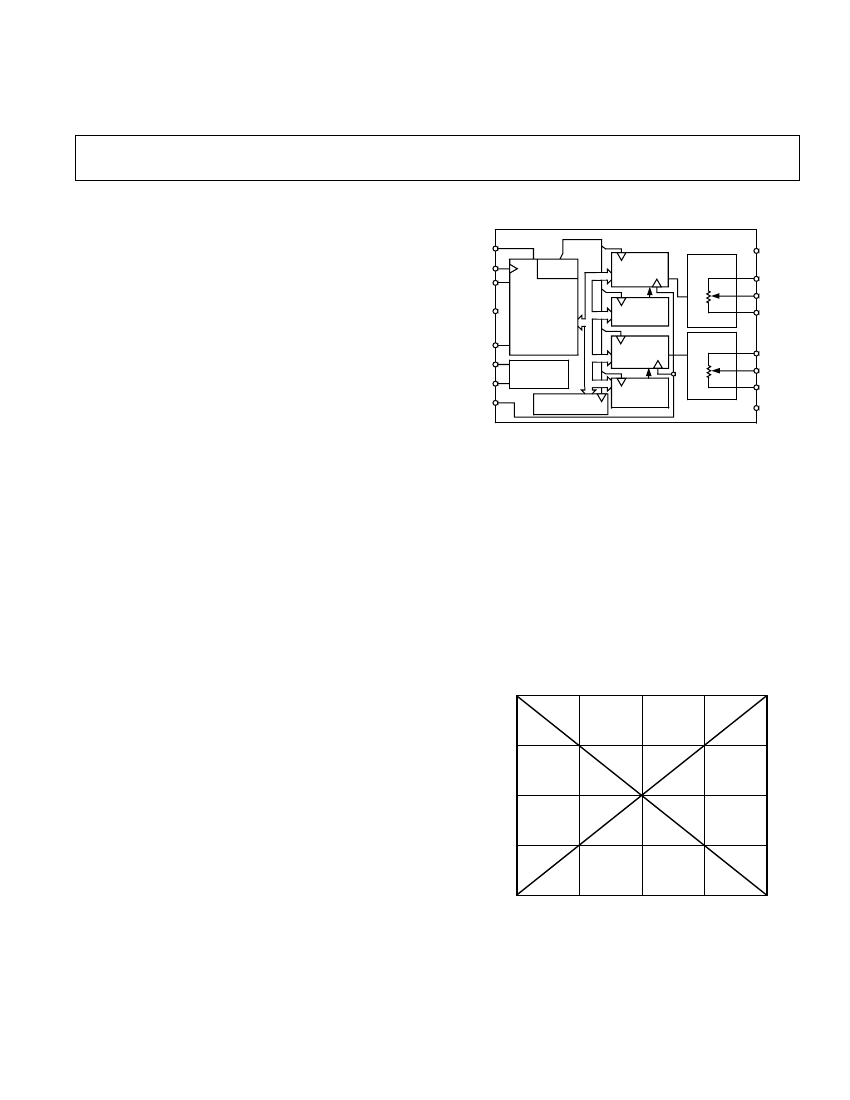

FUNCTIONAL BLOCK DIAGRAM
CS
CLK
SDI
GND
SDI
SERIAL
INTERFACE
ADDR
DECODE
RDAC1
REGISTER
AD5232
V
DD
RDAC1
A1
W1
EEMEM1
B1
SDO
WP
RDY
PR
SDO
EEMEM
CONTROL
14 BYTES
USER EEMEM
RDAC2
REGISTER
RDAC2
A2
W2
EEMEM2
B2
V
SS
The AD5232 device provides a nonvolatile, dual-channel,
digitally controlled variable resistor (VR) with 256-position
resolution. These devices perform the same electronic adjust-
ment function as a potentiometer or variable resistor. The
AD5232鈥檚 versatile programming via a microcontroller allows
multiple modes of operation and adjustment.

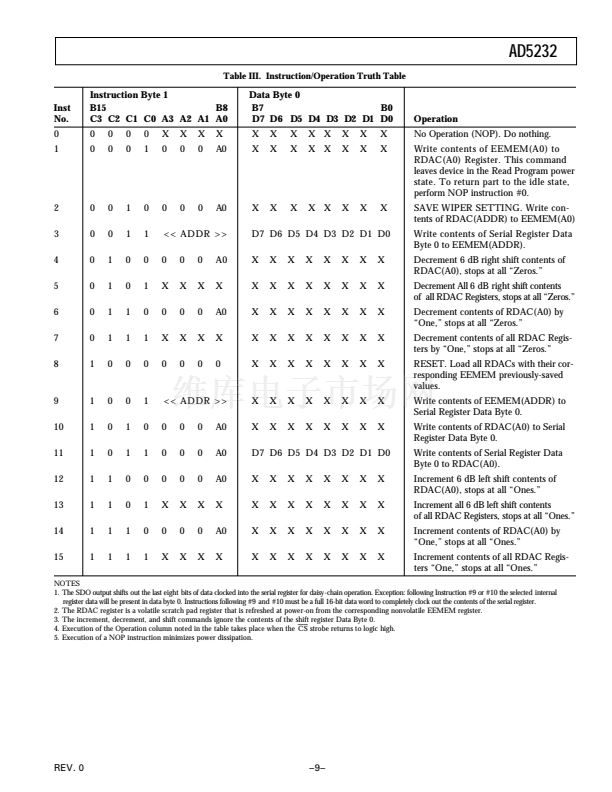

In the direct program mode a predetermined setting of the RDAC
register can be loaded directly from the microcontroller.
Another key mode of operation allows the RDAC register to be
refreshed with the setting previously stored in the EEMEM
register. When changes are made to the RDAC register to estab-
lish a new wiper position, the value of the setting can be saved
into the EEMEM by executing an EEMEM save operation.
Once the settings are saved in the EEMEM register these values
will be automatically transferred to the RDAC register to set the
wiper position at system power ON. Such operation is enabled
by the internal preset strobe and the preset can also be accessed
externally.
All internal register contents can be read out of the serial data
output (SDO). This includes the RDAC1 and RDAC2 registers,
the corresponding nonvolatile EEMEM1 and EEMEM2 regis-
ters, and the 14 spare USER EEMEM registers available for
constant storage.
*Patent
pending.

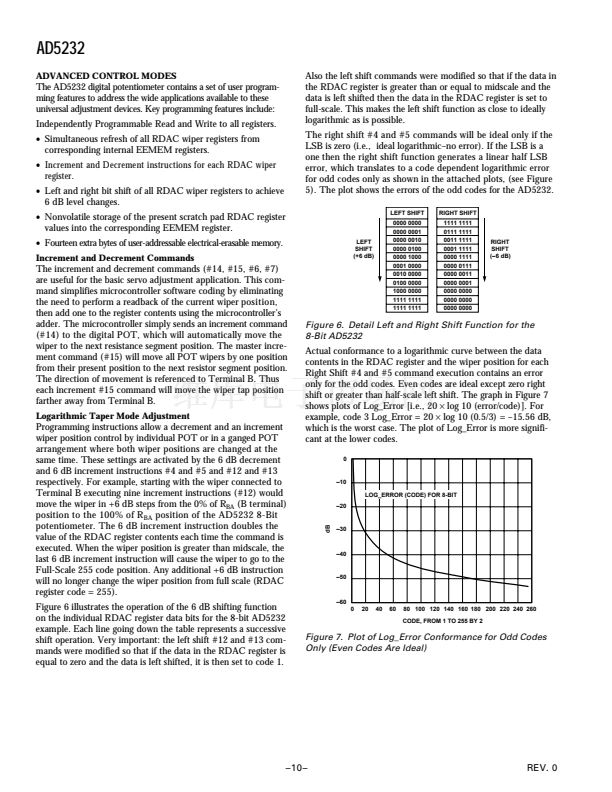

The basic mode of adjustment is the increment and decrement
command controlling the present setting of the Wiper position
setting (RDAC) register. An internal scratch pad RDAC register
can be moved UP or DOWN one step of the nominal terminal
resistance between terminals A and B. This linearly changes the
wiper to B terminal resistance (R
WB
) by one position segment of
the devices鈥?end-to-end resistance (R
AB
). For exponential/loga-
rithmic changes in wiper setting, a left/right shift command
adjusts levels in
鹵
6 dB steps, which can be useful for audio and
light alarm applications.

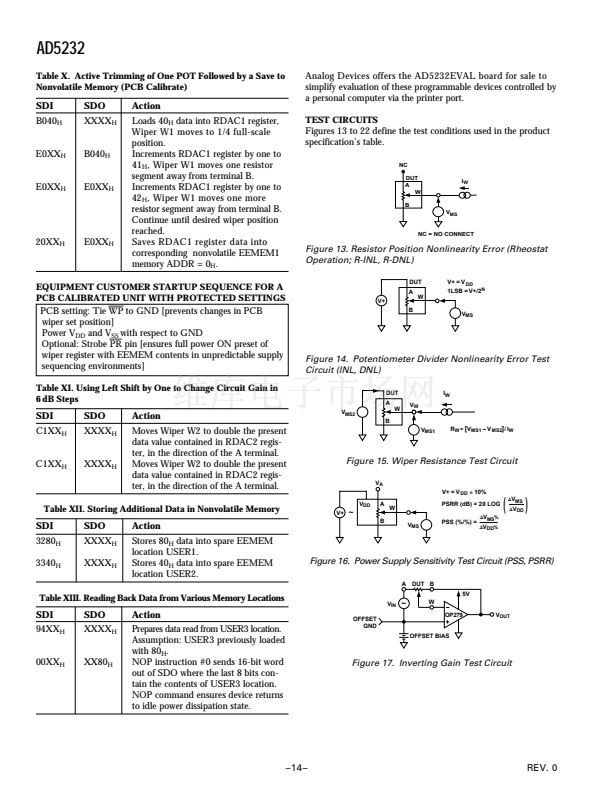

The AD5232 is available in a thin TSSOP-16 package. All parts
are guaranteed to operate over the extended industrial tempera-
ture range of 鈥?0擄C to +85擄C. An evaluation board is available,
Part Number: AD5232EVAL.
100
PERCENT OF NOMINAL
END-TO-END RESISTANCE 鈥?% R
AB
75
50
25
R
WB
0
R
WA
0
64
128
CODE 鈥?Decimal
192
256

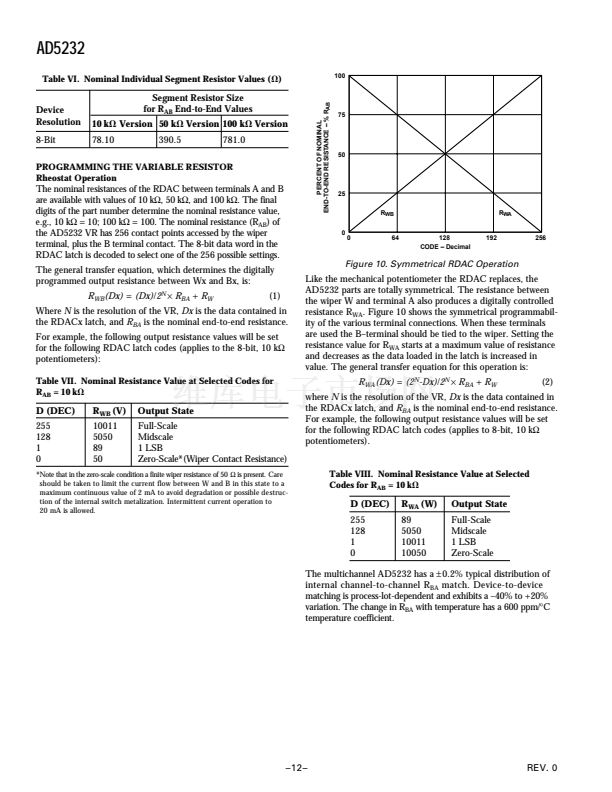

Figure 1. Symmetrical RDAC Operation
REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
漏 Analog Devices, Inc., 2001

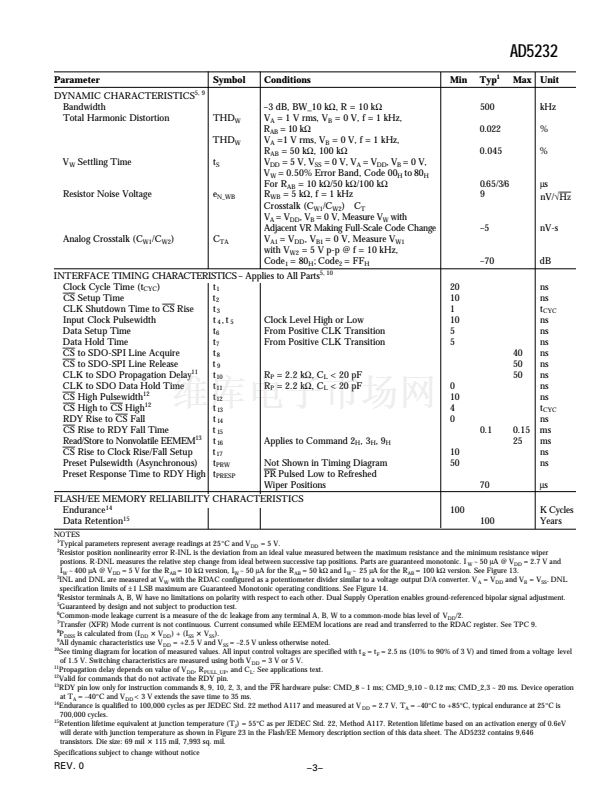

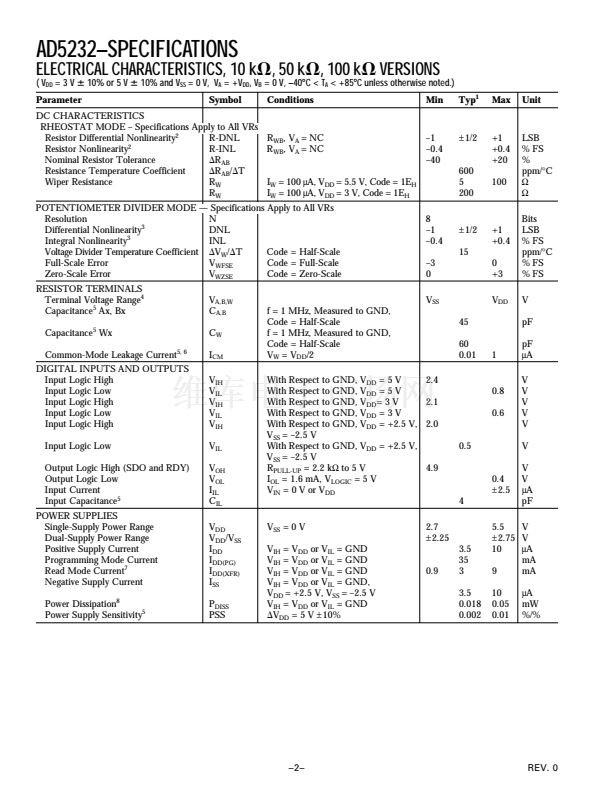

AD5232BRU50-REEL7 產品屬性

  • 1,000

  • 集成電路 (IC)

  • 數據采集 - 數字電位器

  • -

  • 256

  • 50k

  • 2

  • 標準值 600 ppm/°C

  • 非易失

  • 4 線 SPI（芯片選擇）

  • 2.7 V ~ 5.5 V，±2.25 V ~ 2.75 V

  • -40°C ~ 85°C

  • 表面貼裝

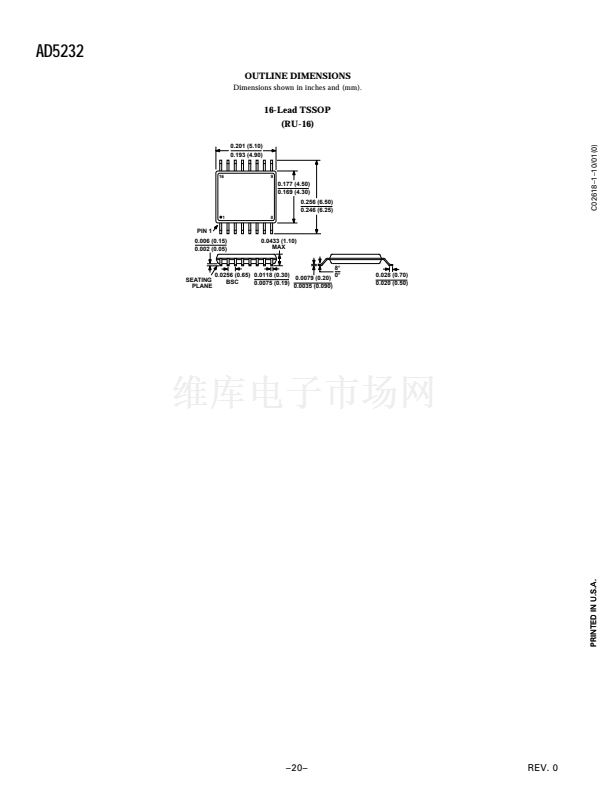

  • 16-TSSOP（0.173"，4.40mm 寬）

  • 16-TSSOP

  • 帶卷 (TR)

  • EVAL-AD5232-10EBZ-ND - BOARD EVALUATION FOR AD5232-10
