ACX704AKM Datasheet

  • ACX704AKM

  • 9.60cm (3.78 Type) QVGA Reflective Color LCD Module

  • 32頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ACX704AKM
9.60cm (3.78 Type) QVGA Reflective Color LCD Module
Description
The ACX704AKM is a 9.60cm diagonal, QVGA
formatted active matrix reflective color TFT-LCD with
a high performance front light unit. This panel
provides ultra-high reflectivity (30% typ.) with high
contrast ratio (25:1 typ.). These characteristics are
realized by a newly developed reflective electrode
structure. In addition, this panel provides low power
consumption (20mW typ.) which is realized by built-
in 4-bit digital interface circuitry addressed by low
temperature polycrystalline silicon transistors.
Features
鈥?/div>
Number of dots:
鈥?/div>
Dot size:
鈥?/div>
High reflectivity:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
320
脳
RGB
脳
240
80碌m
脳
240碌m
30% (typ.)
High contrast ratio: 25:1 (typ.)
Number of colors: 4096
Low power consumption: 20mW (typ.)
Built-in 4-bit digital interface circuitry
Compact size
Thin and bright front light unit
Element Structure
鈥?/div>
Active matrix TFT-LCD panel with built-in peripheral driving circuitry using low temperature polycrystalline
silicon transistors
鈥?/div>
Number of dots
Total number of dots:
Number of active dots:
322
脳
3 (H)
脳
242 (V) = 233,772
320
脳
3 (H)
脳
240 (V) = 230,400
鈥?/div>

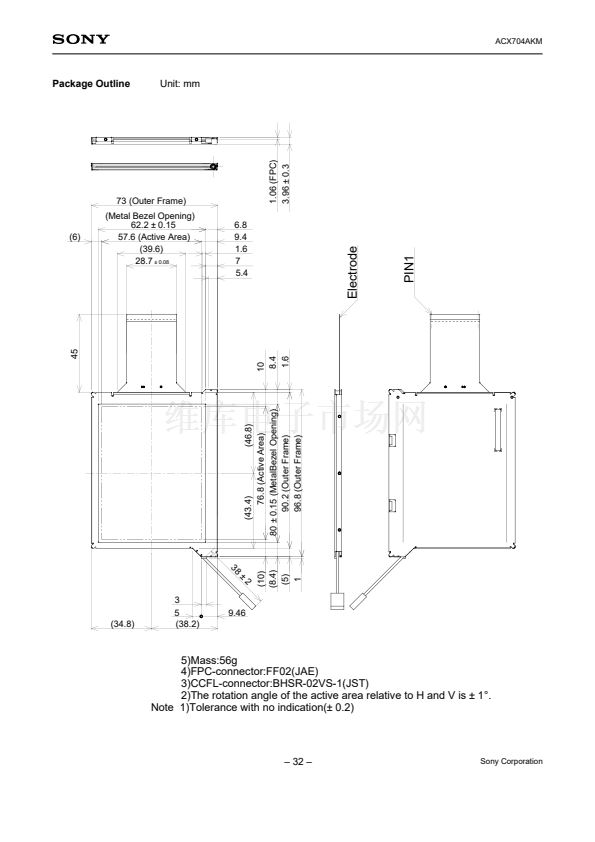

Dimensions
Module dimensions:
96.8 (W)
脳
73.0 (D)
脳
3.96 (H) (mm)
Effective display dimensions: 76.800 (H)
脳
57.600 (V) (mm)
Applications
PDA, etc.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E00813
