ACT8505

Radiation Hardened

64-Channel Analog Multiplexer Module

With MUX Output Monitor Function

Features

鈻?/div>

Radiation Environment

鈥?Radiation 300K(Si) Total Dose

鈥?/div>

No Latch-Up

or SEE to 120MeV/cm

/mg

CIRCUIT TECHNOLOGY

www.aeroflex.com

鈻?/div>

Full Military Temperature Range

Low Power Consumption < 75mW, typical 50mW

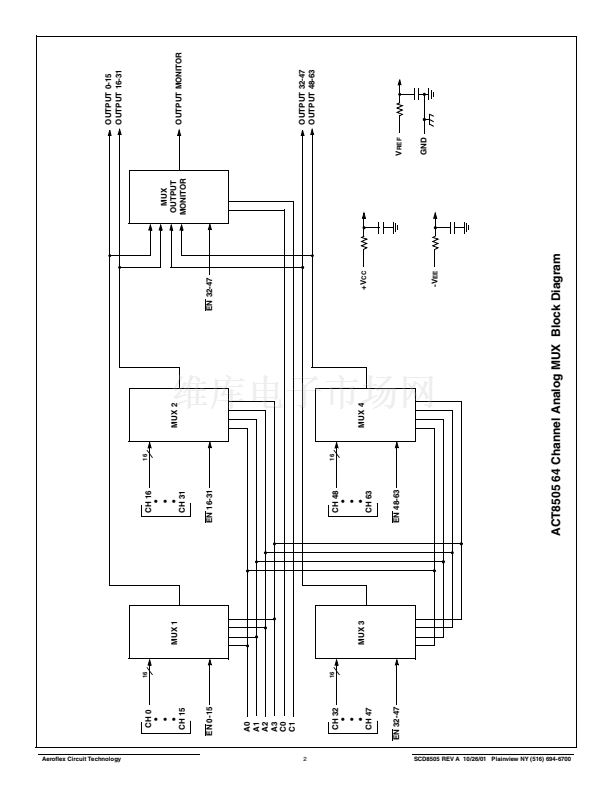

64 Channels Provided by Four (4) HS-1840RH Multiplexers

Address Bus (A

0-3

)

and Four Enable lines afford flexible organization

Output Monitoring of HS-1840RH outputs to a Fifth HS1840RH. Controlled with

Address Lines.

Fast Access Time 1500ns

鹵35V Input Over Voltage Protection (Power On or Off)

Break-Before-Make Switching

9001

High Analog Input Impedance (Power On or Off)

Dielectrically Isolated Device Islands

No Latch-Up

Same

Form / Fit / Function

as ACT8504 but no input Transorbs

Packaging 鈥?Hermetic Ceramic Quad Flat Pack

A E

ISO

鈥?96 Leads, 1.32"Sq x .20"Ht Quad Flat Pack

鈥?Typical Weight 15 grams

鈻?/div>

DESC SMD Pending

General Description

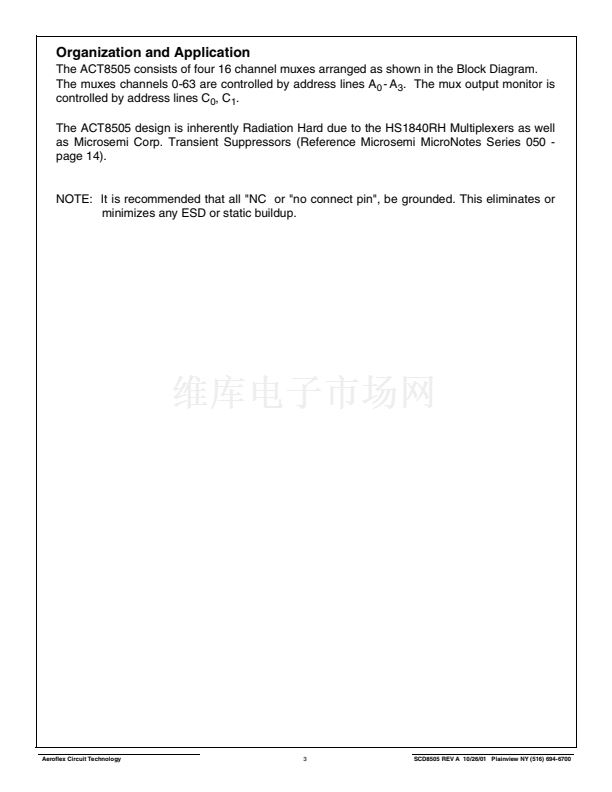

Aeroflex鈥檚 ACT8505 is a radiation hardened, multi-chip 64 channel multiplexer MCM (multi-chip

module) for use in space applications.

The ACT8505 has been specifically designed to meet exposure to radiation environments. The

multiplexer is available in a 96 lead High Temperature Co-Fired Ceramic (HTCC) Quad Flatpack

(QFP) and is guaranteed operational from -55擄C to +125擄C. Available screened in accordance with

MIL-PRF-38534, the ACT8505 is ideal for demanding military and space applications.

eroflex Circuit T

echnology

鈥?Multiplexer Modules For The Future 漏 SCD8505 REV A 10/26/01
