3.81cm = 1.5鈥欌€?/div>
Pin 1
20
19
COM
Pin 11
BENEFITS
Needs no external overvoltage protection
Enables equipment to meet IEC61000-4-5
standard
Interfaces directly with a microcontroller
Eliminates any stressing gate kick back on the
microcontroller
Array structure: design simplified, increase
reliability and space saving aspects
Mounting in SO-20 package enables the device
to meet IEC335-1 standard
s
s
s
s
s
s
GATE 1
DESCRIPTION
The ACS302 belongs to the AC line switch family
built around the ASD鈩?concept. This high
performance device inludes 3 bidirectionnal AC
switches able to control an 0.2A resistive or
inductive load device.
Each ACS鈩?switch embeds a high voltage
clamping structure to absorb the inductive turn off
energy and a gate level shifter driver to separate
the digital controller from the main switch. It is
triggered with a negative gate current flowing out
of the gate pin.
ASD and ACS are trademarks of STMicroelectronics.

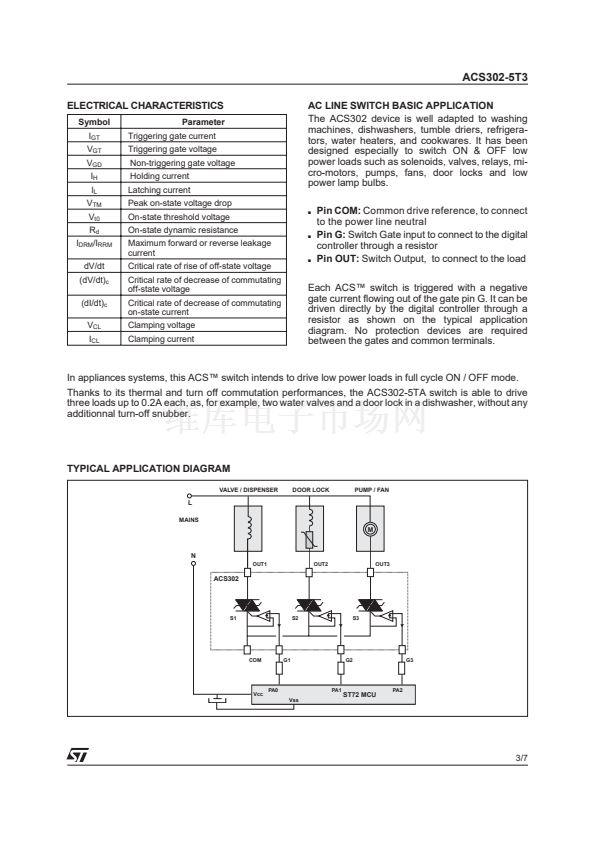

FUNCTIONAL DIAGRAM
OUT1
OUT2
OUT3
ACS302
S1
S2
S3
COM
G1
G2
G3
January 2003 - Ed: 2
1/8
