ACS108-5SA-TR Datasheet

  • ACS108-5SA-TR

  • AC LINE SWITCH

  • 117.07KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
ACS108-5Sx
ASD鈩?/div>
AC LINE SWITCH
AC Switch Family
MAIN APPLICATIONS
AC on-off static switching in appliance &
industrial control systems
Drive of low power high inductive or resistive
loads like:
- relay, valve, solenoid, dispenser
- pump, fan, micro-motor
- low power lamp bulb, door lock
s
s
OUT
G
COM
FEATURES
Blocking voltage: V
DRM
/ V
RRM
= 500V
Clamping voltage: V
CL
= 600V
Nominal current: I
T(RMS)
= 0.8 A
Gate triggering current : I
GT
< 10 mA
Triggering current is sourced by the gate
Switch integrated driver
Drive reference COM connected to the SOT-223
tab
BENEFITS
s
s
s
s
s
s
s
s
TO-92
ACS108-5SA
COM
OUT
COM
G
s
s
s
s
s
Needs no external overvoltage protection.
Enables the equipment to meet IEC61000-4-5
standard.
Allows straightforward connection of several
SOT-223 devices on the same cooling pad.
Reduces the switch component count by up to
80%.
Interfaces directly with the microcontroller.
Eliminates any stressing gate kick back on the
microcontroller.
SOT-223
ACS108-5SN
FUNCTIONAL DIAGRAM
OUT
DESCRIPTION
The ACS108 belongs to the AC line switches built
around the ASD鈩?concept. This high performance
device is able to control an 0.8 A load device.
The ACS鈩?switch embeds a high voltage
clamping structure to absorb the inductive
turn-off energy and a gate level shifter driver to
separate the digital controller from the main
switch. It is triggered with a negative gate current
flowing out of the gate pin.
For further technical information, please refer to
AN1172 the Application note.
ASD and ACS are a trademarks of STMicroelectronics.
ACS108
S
ON
D
COM
G
1/8
October 2001 - Ed: 6C

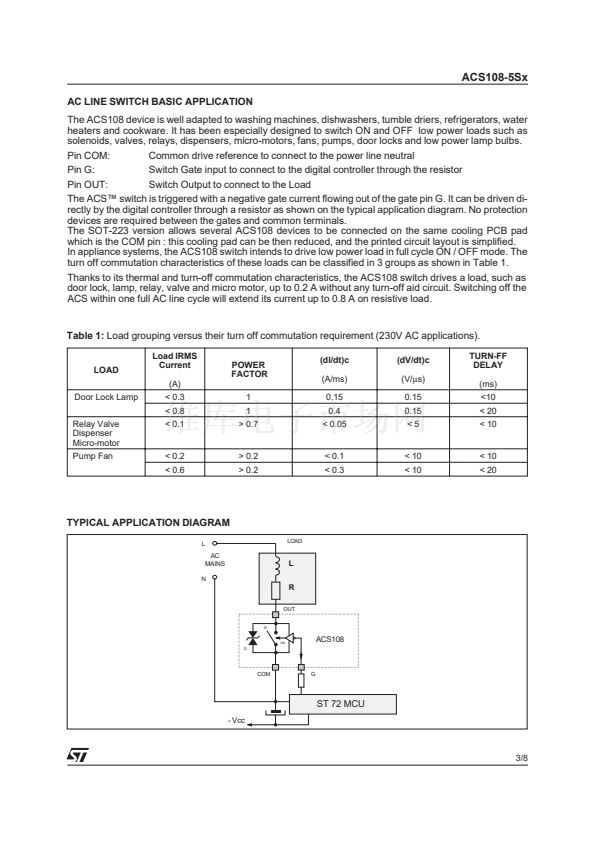

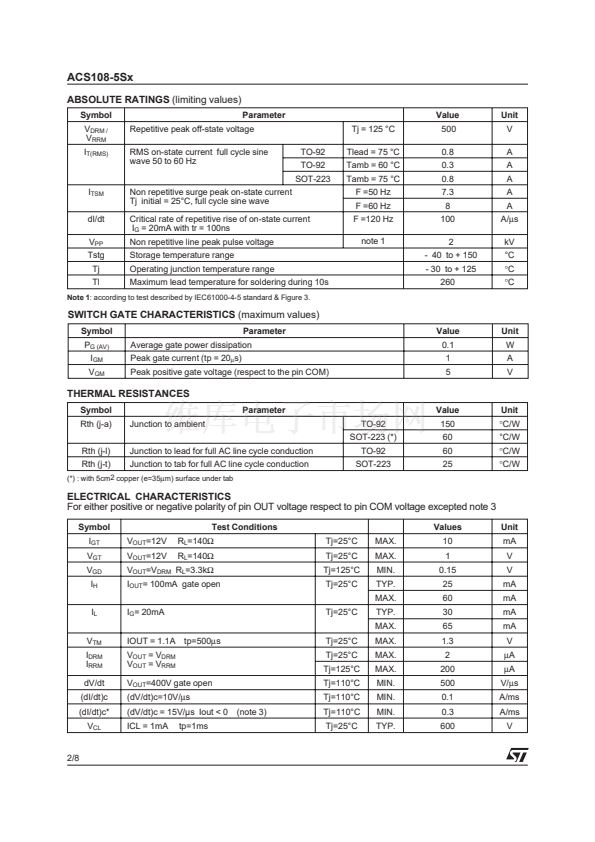

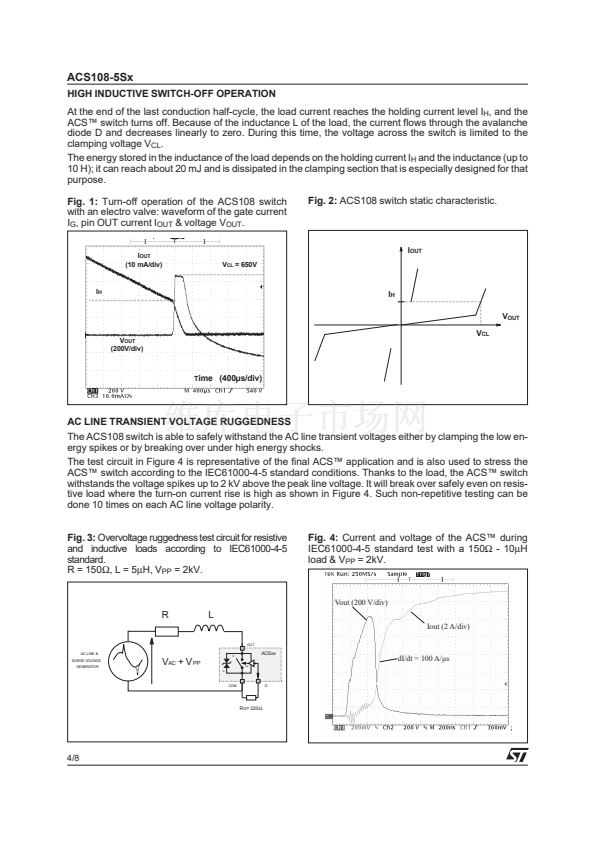

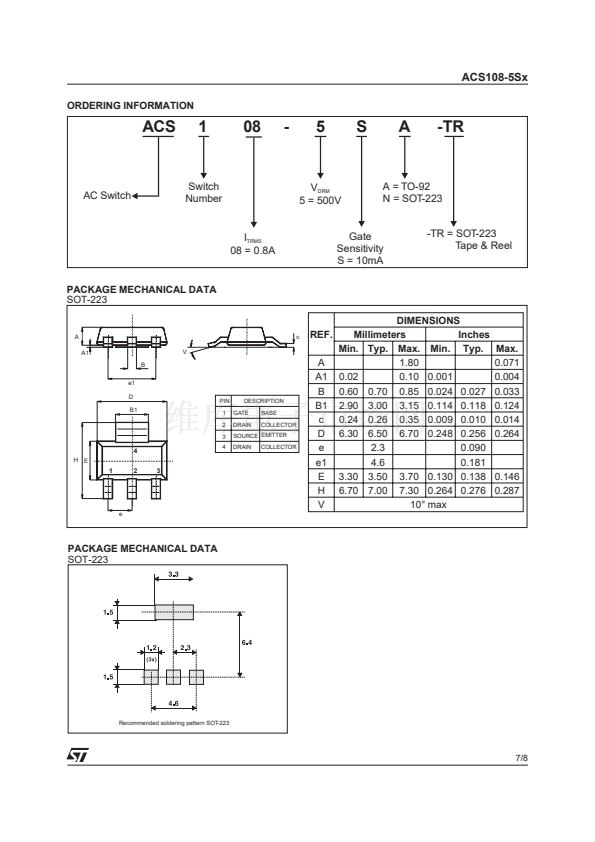

ACS108-5SA-TR 產品屬性

  • 2,000

  • 分離式半導體產品

  • 三端雙向可控硅開關

  • ASD™

  • 邏輯 - 靈敏柵極

  • 500V

  • 800mA

  • 1V

  • 7.3A，8A

  • 10mA

  • 25mA

  • 單一

  • 通孔

  • TO-226-3、TO-92-3（TO-226AA）成形引線

  • TO-92-3

  • 帶卷 (TR)
