8XC196KC20 Datasheet

  • 8XC196KC20

  • COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

  • 25頁

  • INTEL   INTEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

8XC196KC 8XC196KC20
COMMERCIAL EXPRESS CHMOS
MICROCONTROLLER
87C196KC
83C196KC
80C196KC
16 and 20 MHz Available
488 Byte Register RAM
28 Interrupt Sources 16 Vectors
Peripheral Transaction Server
1 4
ms
16 x 16 Multiply (20 MHz)
2 4
ms
32 16 Divide (20 MHz)
Powerdown and Idle Modes
Five 8-Bit I O Ports
16-Bit Watchdog Timer
Extended Temperature Available
16 Kbytes of On-Chip OTPROM
16 Kbytes ROM
ROMless
Y
Dynamically Configurable 8-Bit or
16-Bit Buswidth
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Register-to-Register Architecture
Full Duplex Serial Port
High Speed I O Subsystem
16-Bit Timer
16-Bit Up Down Counter with Capture
3 Pulse-Width-Modulated Outputs
Four 16-Bit Software Timers
8- or 10-Bit A D Converter with
Sample Hold
HOLD HLDA Bus Protocol
OTPROM One-Time Programmable
Version
Y
Y
The 80C196KC 16-bit microcontroller is a high performance member of the MCS 96 microcontroller family
The 80C196KC is an enhanced 80C196KB device with 488 bytes RAM 16 and 20 MHz operation and an
optional 16 Kbytes of ROM OTPROM Intel鈥檚 CHMOS III process provides a high performance processor
along with low power consumption
The 87C196KC is an 80C196KC with 16 Kbytes on-chip OTPROM The 83C196KC is an 80C196KC with 16
Kbytes factory programmed ROM In this document the 80C196KC will refer to all products unless otherwise
stated
Four high-speed capture inputs are provided to record times when events occur Six high-speed outputs are
available for pulse or waveform generation The high-speed output can also generate four software timers or
start an A D conversion Events can be based on the timer or up down counter
With the commercial (standard) temperature option operational characteristics are guaranteed over the tem-
perature range of 0 C to
a
70 C With the extended (Express) temperature range option operational charac-
teristics are guaranteed over the temperature range of
b
40 C to
a
85 C Unless otherwise noted the specifi-
cations are the same for both options

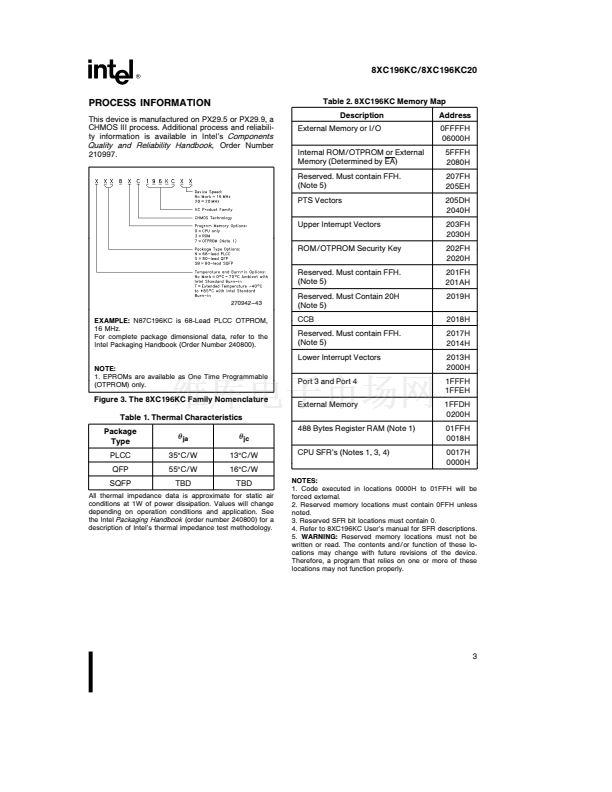

See the Packaging information for extended temperature designators
Other brands and names are the property of their respective owners
Information in this document is provided in connection with Intel products Intel assumes no liability whatsoever including infringement of any patent or
copyright for sale and use of Intel products except as provided in Intel鈥檚 Terms and Conditions of Sale for such products Intel retains the right to make
changes to these specifications at any time without notice Microcomputer Products may have minor variations to this specification known as errata
COPYRIGHT
INTEL CORPORATION 1995
November 1994
Order Number 270942-005
