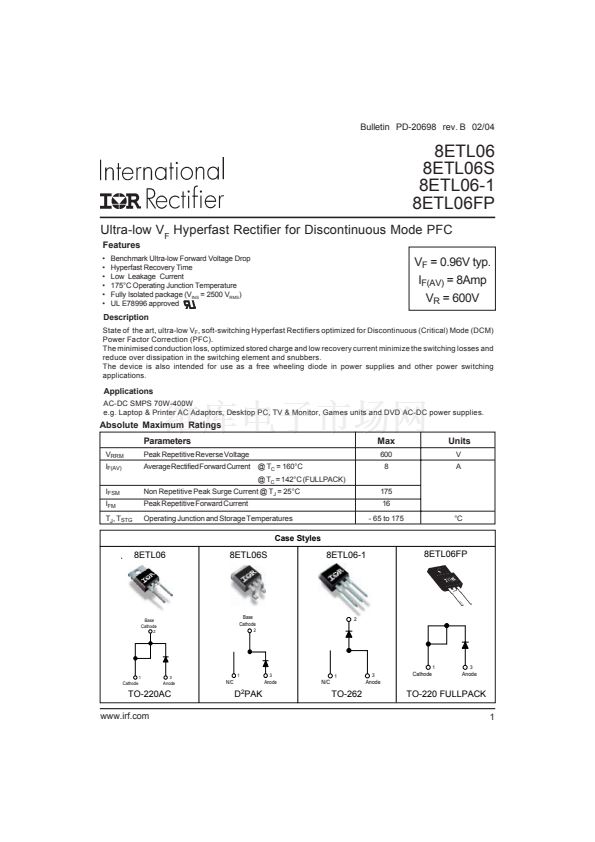

Bulletin PD-20698 rev. B 02/04

8ETL06

8ETL06S

8ETL06-1

8ETL06FP

Ultra-low V

F

Hyperfast Rectifier for Discontinuous Mode PFC

Features

鈥?/div>

Benchmark Ultra-low Forward Voltage Drop

Hyperfast Recovery Time

Low Leakage Current

175擄C Operating Junction Temperature

Fully Isolated package (V

INS

= 2500 V

RMS

)

UL E78996 approved

V

F

= 0.96V typ.

I

F(AV)

= 8Amp

V

R

= 600V

Description

State of the art, ultra-low V

F

, soft-switching Hyperfast Rectifiers optimized for Discontinuous (Critical) Mode (DCM)

Power Factor Correction (PFC).

The minimised conduction loss, optimized stored charge and low recovery current minimize the switching losses and

reduce over dissipation in the switching element and snubbers.

The device is also intended for use as a free wheeling diode in power supplies and other power switching

applications.

Applications

AC-DC SMPS 70W-400W

e.g. Laptop & Printer AC Adaptors, Desktop PC, TV & Monitor, Games units and DVD AC-DC power supplies.

Absolute Maximum Ratings

Parameters

V

RRM

I

F(AV)

I

FSM

I

FM

T

J

, T

STG

Peak Repetitive Reverse Voltage

Average Rectified Forward Current @ T

C

= 160擄C

@ T

C

= 142擄C (FULLPACK)

Non Repetitive Peak Surge Current @ T

J

= 25擄C

Peak Repetitive Forward Current

Operating Junction and Storage Temperatures

175

16

- 65 to 175

擄C

Max

600

8

Units

V

A

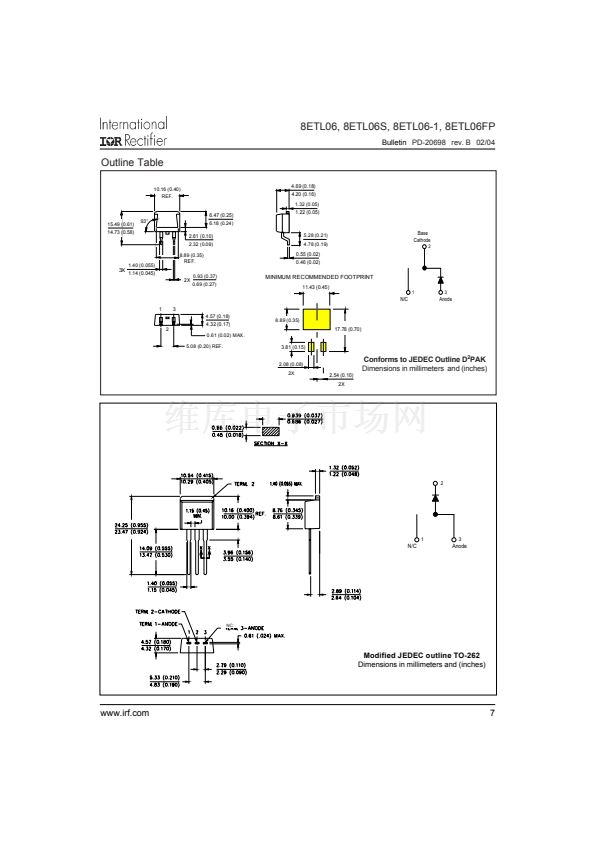

Case Styles

8ETL06

8ETL06S

8ETL06-1

8ETL06FP

Base

Cathode

2

Base

Cathode

2

1

3

1

3

1

3

Cathode

Anode

Cathode

Anode

N/C

Anode

N/C

Anode

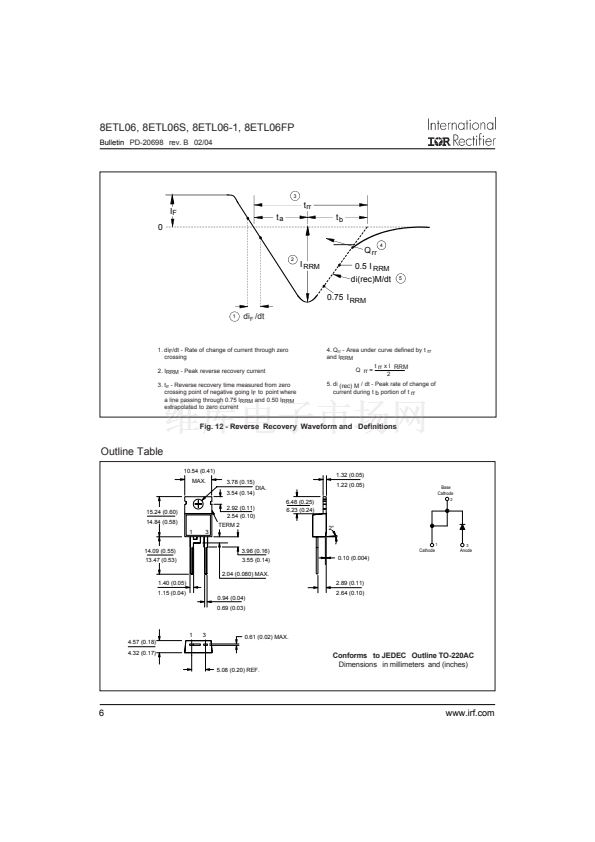

TO-220AC

www.irf.com

D PAK

2

TO-262

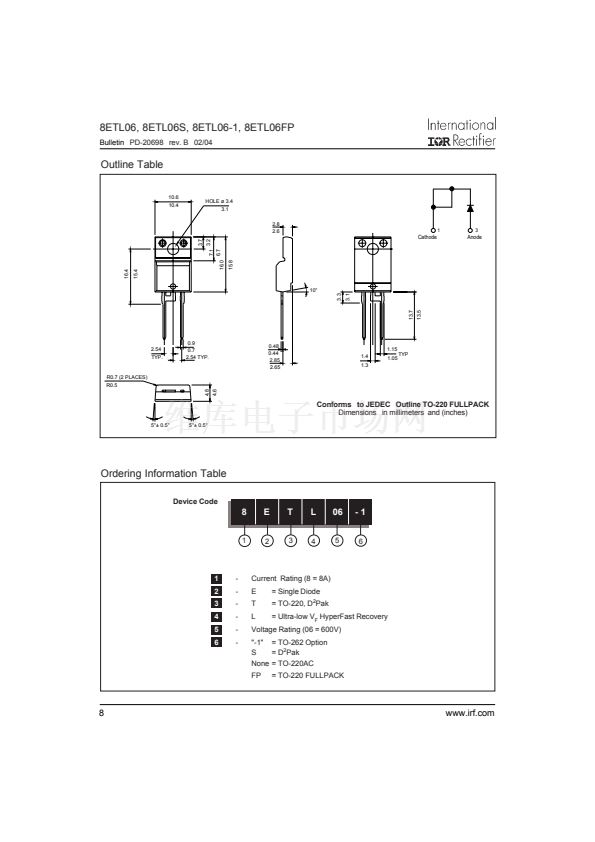

TO-220 FULLPACK

1

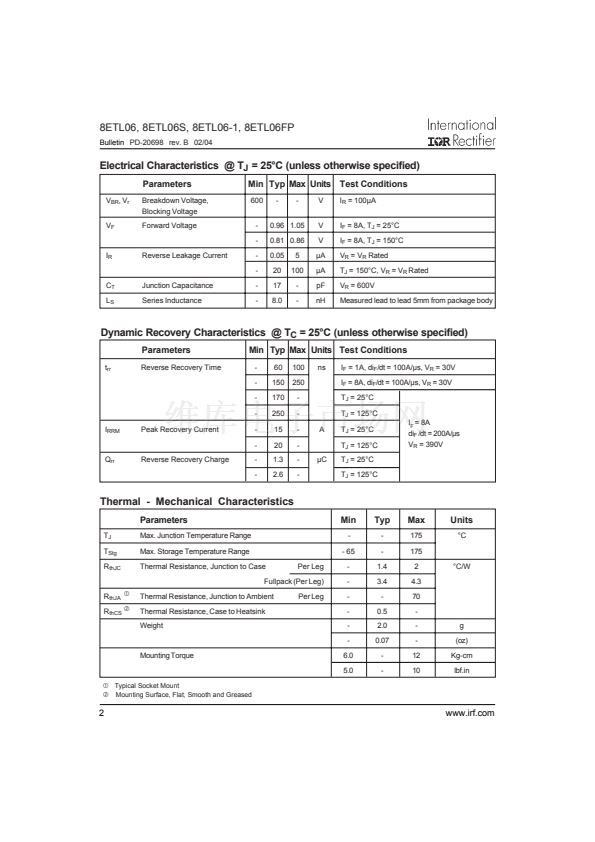

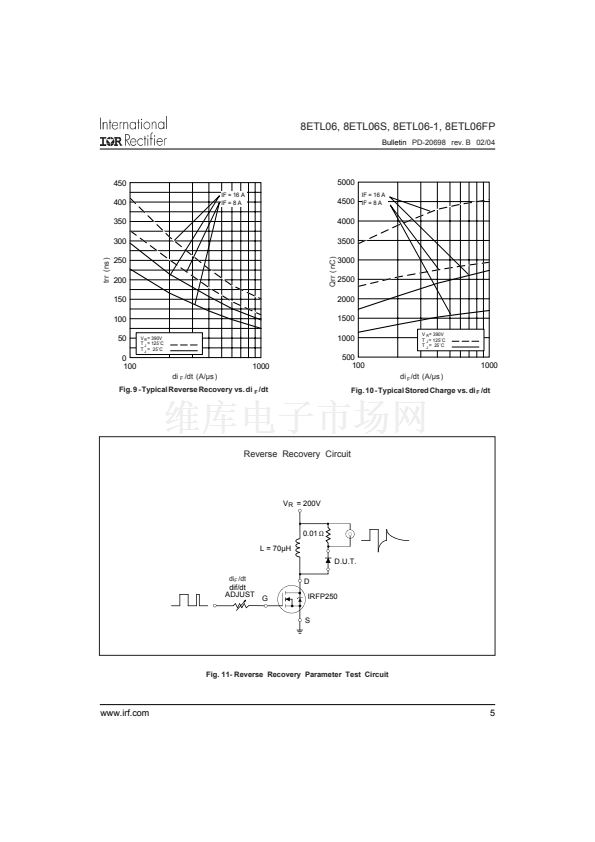

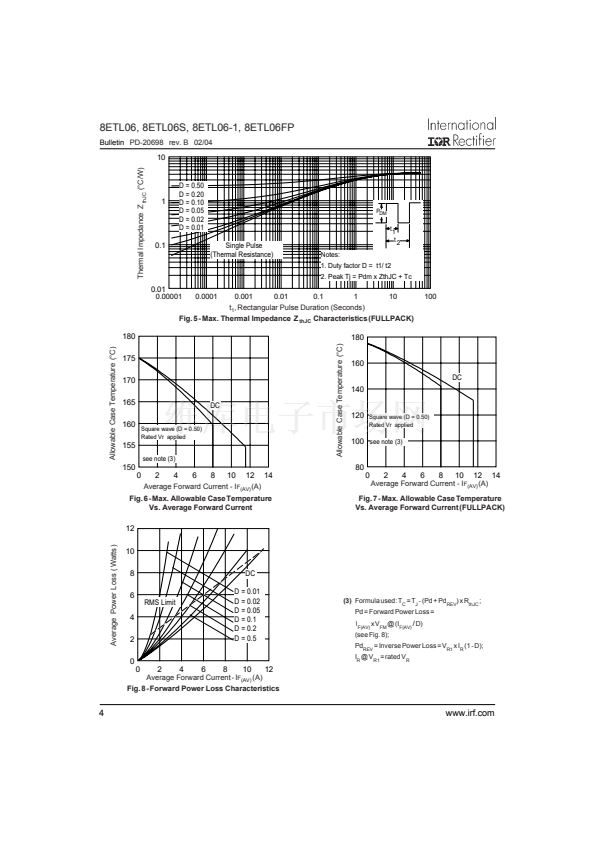

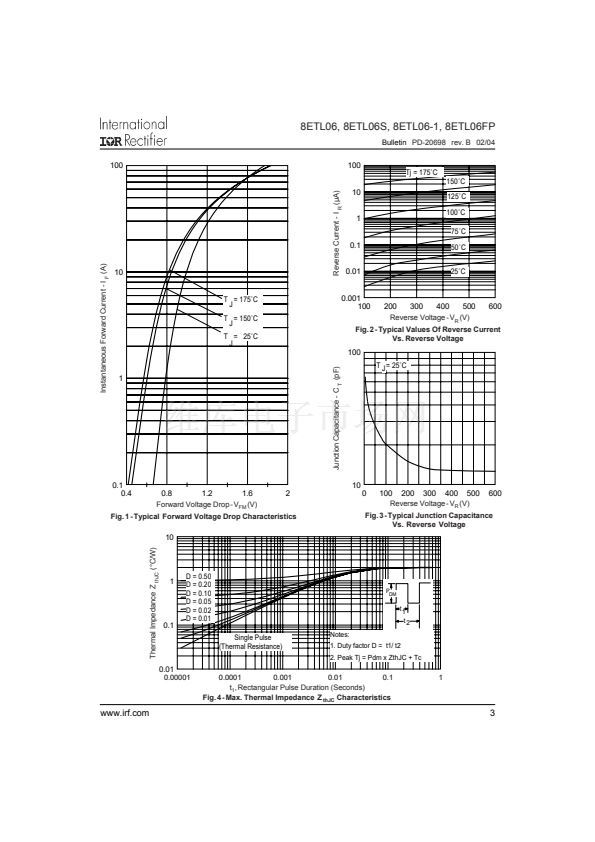

標準包裝
1,000
類別
分離式半導體產品
家庭
單二極管/整流器
系列
FRED Pt™
二極管類型
標準
電壓 - (Vr)（最大）
600V
電流 - 平均整流 (Io)
8A
電壓 - 在 If 時為正向 (Vf)（最大）
1.05V @ 8A
速度
快速恢復 = 200mA（Io）
反向恢復時間
250ns
電流 - 在 Vr 時反向漏電
5µA @ 600V
電容@ Vr, F
-
安裝類型
通孔
封裝/外殼
TO-220-2 熔斷式，TO-220AC
供應商設備封裝
TO-220AC
包裝
管件
其它名稱
*8ETL06VS-8ETL06VS-8ETL06-NDVS8ETL06VS8ETL06-ND
