8ETH06S Datasheet

  • 8ETH06S

  • Hyperfast Rectifier

  • 9頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

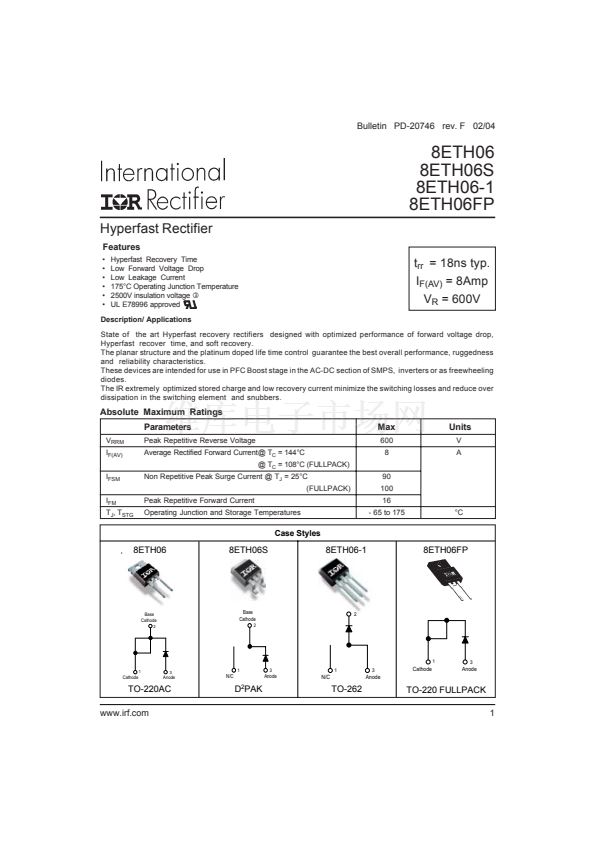

Bulletin PD-20746 rev. F 02/04
8ETH06
8ETH06S
8ETH06-1
8ETH06FP
Hyperfast Rectifier
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Hyperfast Recovery Time
Low Forward Voltage Drop
Low Leakage Current
175擄C Operating Junction Temperature
2500V insulation voltage
UL E78996 approved
t
rr
= 18ns typ.
I
F(AV)
= 8Amp
V
R
= 600V
Description/ Applications
State of the art Hyperfast recovery rectifiers designed with optimized performance of forward voltage drop,
Hyperfast recover time, and soft recovery.
The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness
and reliability characteristics.
These devices are intended for use in PFC Boost stage in the AC-DC section of SMPS, inverters or as freewheeling
diodes.
The IR extremely optimized stored charge and low recovery current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
Absolute Maximum Ratings
Parameters
V
RRM
I
F(AV)
I
FSM
I
FM
T
J
, T
STG
Peak Repetitive Reverse Voltage
Average Rectified Forward Current@ T
C
= 144擄C
@ T
C
= 108擄C (FULLPACK)
Non Repetitive Peak Surge Current @ T
J
= 25擄C
(FULLPACK)
Peak Repetitive Forward Current
Operating Junction and Storage Temperatures
90
100
16
- 65 to 175
擄C
Max
600
8
Units
V
A
Case Styles
8ETH06
8ETH06S
8ETH06-1
8ETH06FP
Base
Cathode
2
Base
Cathode
2
2
1
1
3
3
1
3
1
3
Cathode
Anode
Cathode
Anode
N/C
Anode
N/C
Anode
TO-220AC
www.irf.com
D
2
PAK
TO-262
TO-220 FULLPACK
1

8ETH06S 產品屬性

  • 1,000

  • 分離式半導體產品

  • 單二極管/整流器

  • FRED Pt™

  • 標準

  • 600V

  • 8A

  • 2.4V @ 8A

  • 快速恢復 = 200mA（Io）

  • 25ns

  • 50µA @ 600V

  • -

  • 表面貼裝

  • TO-263-3，D²Pak（2 引線+接片），TO-263AB

  • D2PAK（SMD-220）

  • 管件

  • *8ETH06SVS-8ETH06SVS-8ETH06S-NDVS8ETH06SVS8ETH06S-ND
