80386EXTB Datasheet

  • 80386EXTB

  • Microprocessor

  • 20頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

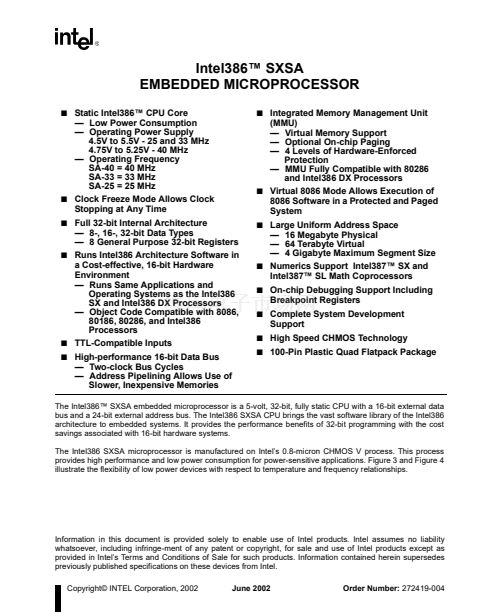

Intel386鈩?SXSA
EMBEDDED MICROPROCESSOR
鈻?/div>
Static Intel386鈩?CPU Core
鈻?/div>
Integrated Memory Management Unit
鈥?Low Power Consumption
鈥?Operating Power Supply
4.5V to 5.5V - 25 and 33 MHz
4.75V to 5.25V - 40 MHz
鈥?Operating Frequency
SA-40 = 40 MHz
SA-33 = 33 MHz
SA-25 = 25 MHz
鈻?/div>
Clock Freeze Mode Allows Clock
Stopping at Any Time
鈻?/div>
Full 32-bit Internal Architecture
(MMU)
鈥?Virtual Memory Support
鈥?Optional On-chip Paging
鈥?4 Levels of Hardware-Enforced
Protection
鈥?MMU Fully Compatible with 80286
and Intel386 DX Processors
鈻?/div>
Virtual 8086 Mode Allows Execution of
8086 Software in a Protected and Paged
System
鈻?/div>
Large Uniform Address Space
鈥?8-, 16-, 32-bit Data Types
鈥?8 General Purpose 32-bit Registers
鈻?/div>
Runs Intel386 Architecture Software in
a Cost-effective, 16-bit Hardware
Environment
鈥?Runs Same Applications and
Operating Systems as the Intel386
SX and Intel386 DX Processors
鈥?Object Code Compatible with 8086,
80186, 80286, and Intel386
Processors
鈻?/div>
TTL-Compatible Inputs
鈻?/div>
High-performance 16-bit Data Bus
鈥?16 Megabyte Physical
鈥?64 Terabyte Virtual
鈥?4 Gigabyte Maximum Segment Size
鈻?/div>
Numerics Support Intel387鈩?SX and
Intel387鈩?SL Math Coprocessors
鈻?/div>
On-chip Debugging Support Including
Breakpoint Registers
鈻?/div>
Complete System Development
Support
鈻?/div>
High Speed CHMOS Technology
鈻?/div>
100-Pin Plastic Quad Flatpack Package
鈥?Two-clock Bus Cycles
鈥?Address Pipelining Allows Use of
Slower, Inexpensive Memories
The Intel386鈩?SXSA embedded microprocessor is a 5-volt, 32-bit, fully static CPU with a 16-bit external data
bus and a 24-bit external address bus. The Intel386 SXSA CPU brings the vast software library of the Intel386
architecture to embedded systems. It provides the performance benefits of 32-bit programming with the cost
savings associated with 16-bit hardware systems.
The Intel386 SXSA microprocessor is manufactured on Intel鈥檚 0.8-micron CHMOS V process. This process

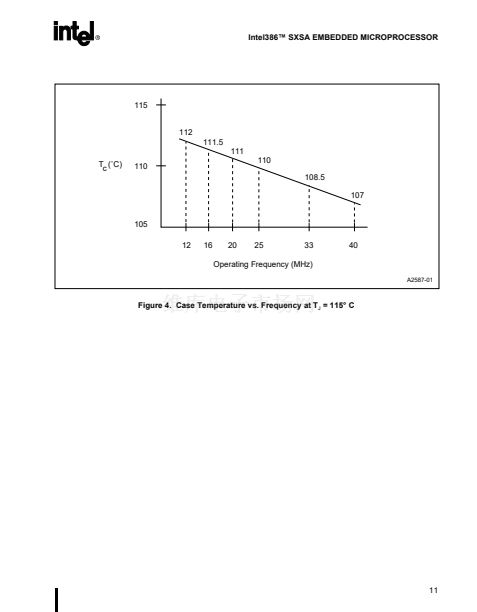

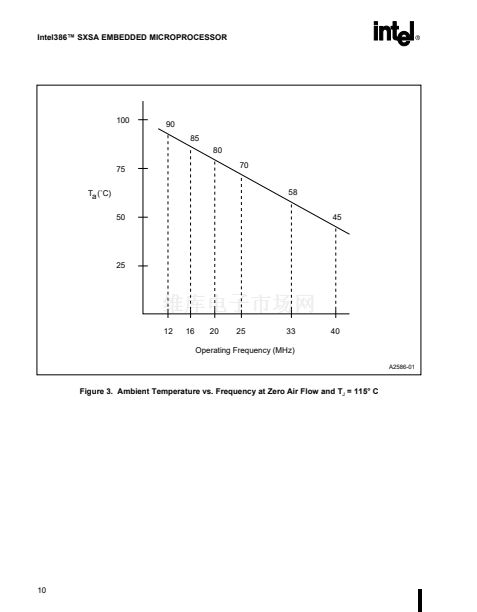

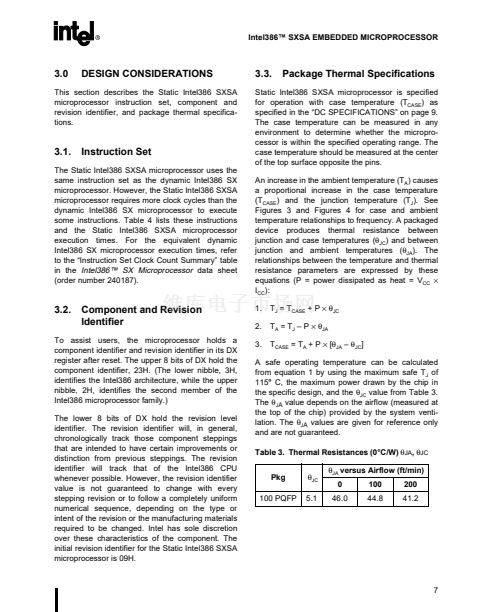

provides high performance and low power consumption for power-sensitive applications. Figure 3 and Figure 4
illustrate the flexibility of low power devices with respect to temperature and frequency relationships.
Information in this document is provided solely to enable use of Intel products. Intel assumes no liability
whatsoever, including infringe-ment of any patent or copyright, for sale and use of Intel products except as
provided in Intel鈥檚 Terms and Conditions of Sale for such products. Information contained herein supersedes
previously published specifications on these devices from Intel.
Copyright漏 INTEL Corporation, 2002
June 2002
Order Number:
272419-004
