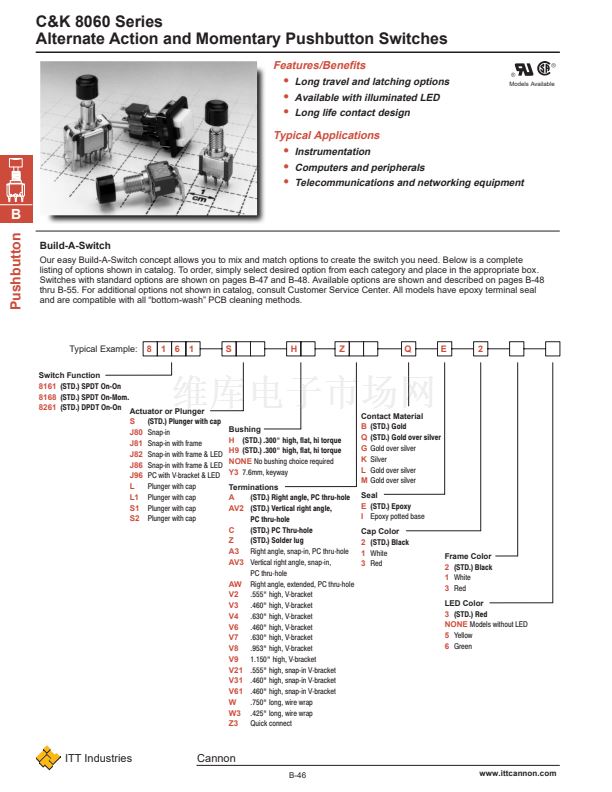

C&K 8060 Series

Alternate Action and Momentary Pushbutton Switches

Features/Benefits

S

S

S

S

S

S

Long travel and latching options

Available with illuminated LED

Long life contact design

Models Available

Typical Applications

Instrumentation

Computers and peripherals

Telecommunications and networking equipment

B

Pushbutton

Build-A-Switch

Our easy Build-A-Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.

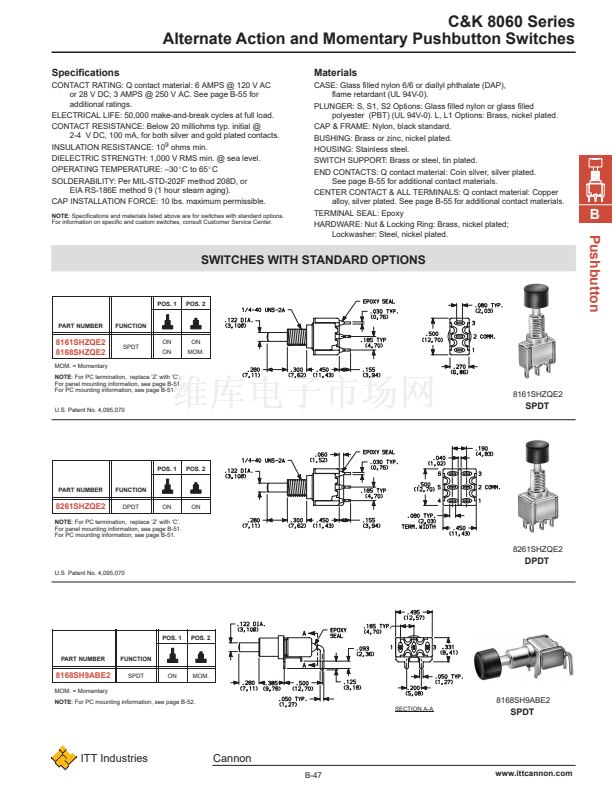

Switches with standard options are shown on pages B-47 and B-48. Available options are shown and described on pages B-48

thru B-55. For additional options not shown in catalog, consult Customer Service Center. All models have epoxy terminal seal

and are compatible with all 鈥渂ottom-wash鈥?PCB cleaning methods.

Typical Example:

8

1 6

1

S

H

Z

Q

E

2

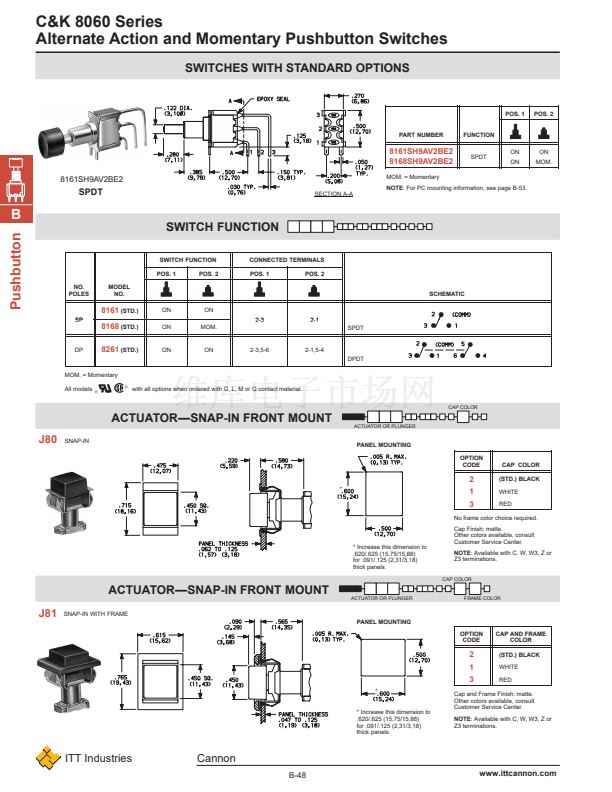

Switch Function

8161

(STD.) SPDT On On

8168

(STD.) SPDT On Mom.

8261

(STD.) DPDT On On

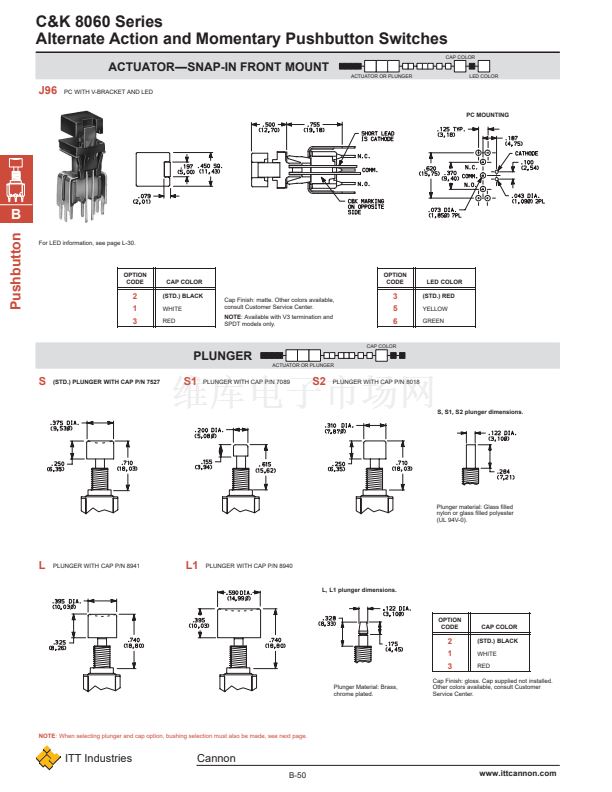

Actuator or Plunger

S

J80

J81

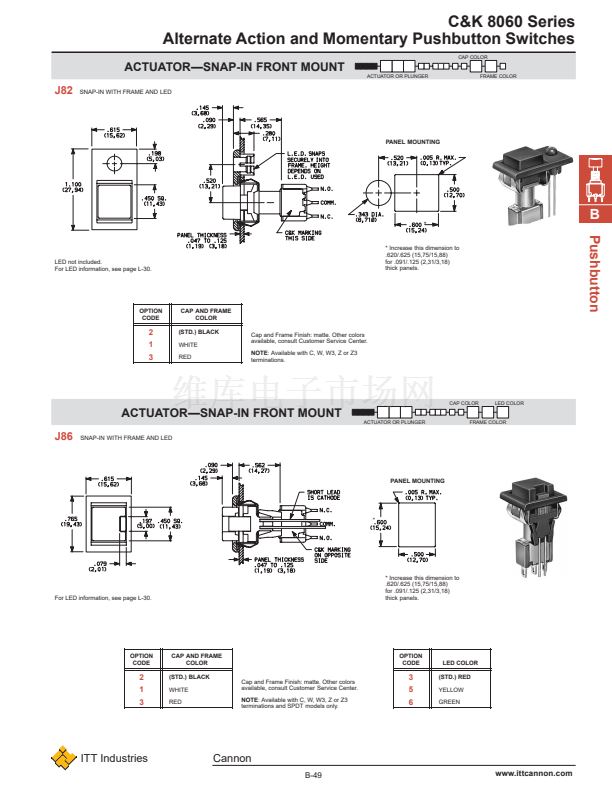

J82

J86

J96

L

L1

S1

S2

(STD.) Plunger with cap

Snap in

Snap in with frame

Snap in with frame & LED

Snap in with frame & LED

PC with V bracket & LED

Plunger with cap

Plunger with cap

Plunger with cap

Plunger with cap

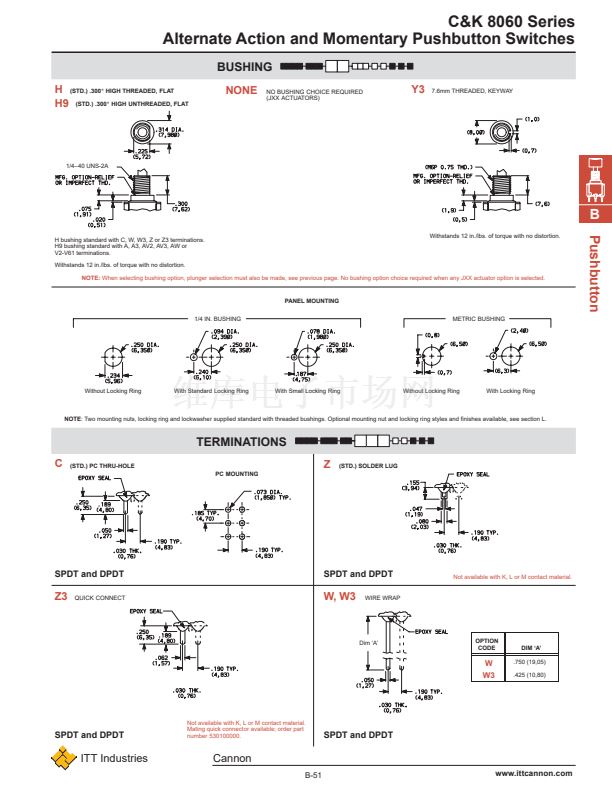

Bushing

H

(STD.) .300 high, flat, hi torque

H9

(STD.) .300 high, flat, hi torque

NONE

No bushing choice required

Y3

7.6mm, keyway

Terminations

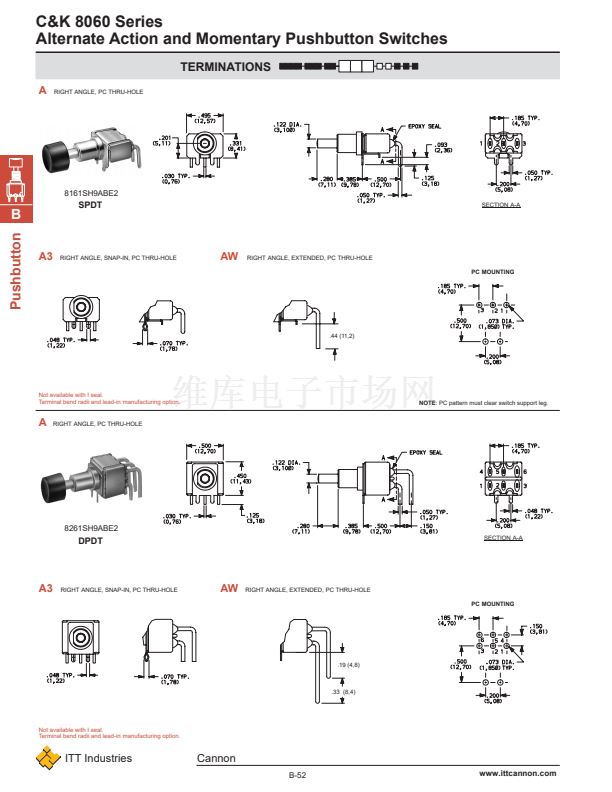

A

(STD.) Right angle, PC thru hole

AV2

(STD.) Vertical right angle,

PC thru hole

C

(STD.) PC Thru hole

Z

(STD.) Solder lug

A3

Right angle, snap in, PC thru hole

AV3

Vertical right angle, snap in,

PC thru hole

AW

Right angle, extended, PC thru hole

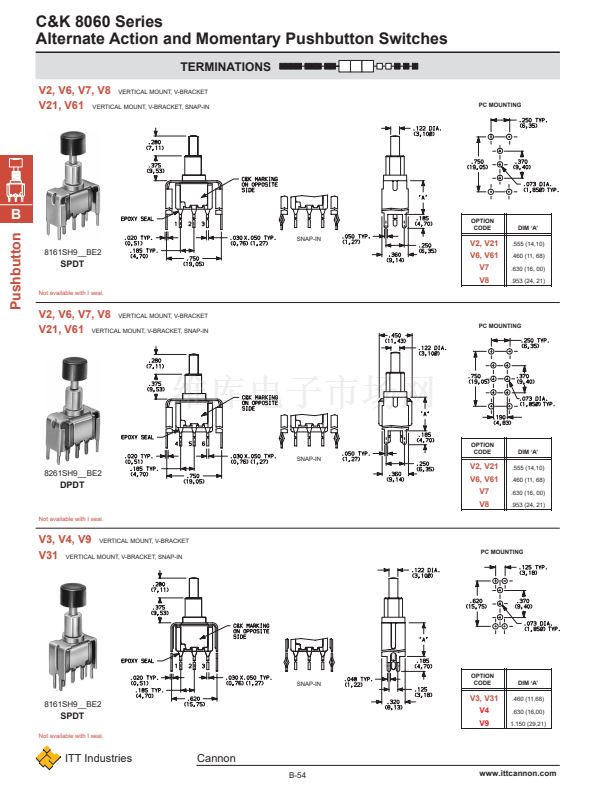

V2

.555 high, V bracket

V3

.460 high, V bracket

V4

.630 high, V bracket

V6

.460 high, V bracket

V7

.630 high, V bracket

V8

.953 high, V bracket

V9

1.150 high, V bracket

V21

.555 high, snap in V bracket

V31

.460 high, snap in V bracket

V61

.460 high, snap in V bracket

W

.750 long, wire wrap

W3

.425 long, wire wrap

Z3

Quick connect

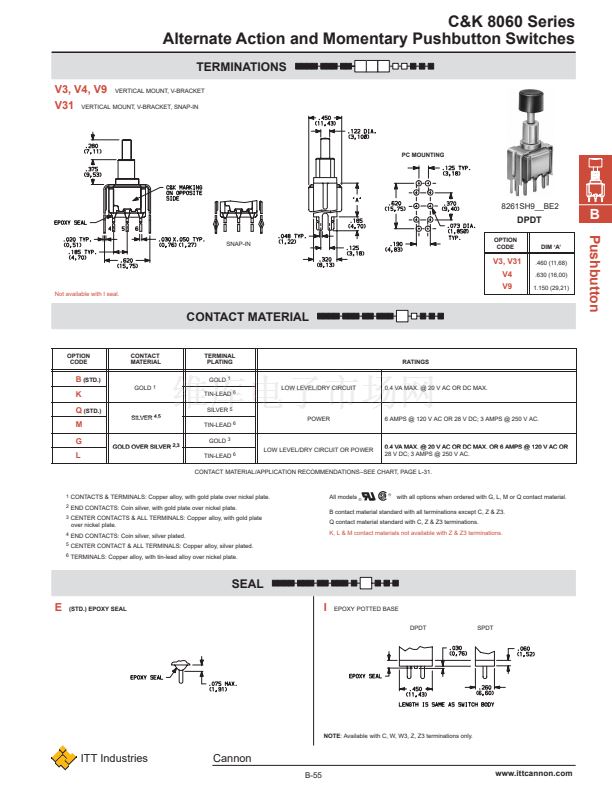

Contact Material

B

(STD.) Gold

Q

(STD.) Gold over silver

G

Gold over silver

K

Silver

L

Gold over silver

M

Gold over silver

Seal

E

(STD.) Epoxy

I

Epoxy potted base

Cap Color

2

(STD.) Black

1

White

3

Red

Frame Color

2

(STD.) Black

1

White

3

Red

LED Color

3

(STD.) Red

NONE

Models without LED

5

Yellow

6

Green

ITT Industries

Cannon

B-46

www.ittcannon.com
