74VHC164SJX Datasheet

  • 74VHC164SJX

  • SHIFT REGISTER|HC-CMOS|SOP|14PIN|PLASTIC

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74VHC164 8-Bit Serial-In, Parallel-Out Shift Register
August 1993
Revised February 2002
74VHC164
8-Bit Serial-In, Parallel-Out Shift Register
General Description
The VHC164 is an advanced high-speed CMOS device
fabricated with silicon gate CMOS technology. It achieves
the high-speed operation similar to equivalent Bipolar
Schottky TTL while maintaining the CMOS low power dissi-
pation. The VHC164 is a high-speed 8-Bit Serial-In/Paral-
lel-Out Shift Register. Serial data is entered through a 2-
input AND gate synchronous with the LOW-to-HIGH transi-
tion of the clock. The device features an asynchronous
Master Reset which clears the register, setting all outputs
LOW independent of the clock. An input protection circuit
insures that 0V to 7V can be applied to the input pins with-
out regard to the supply voltage. This device can be used
to interface 5V to 3V systems and two supply systems such
as battery backup. This circuit prevents device destruction
due to mismatched supply and input voltages.
Features
s
High Speed: f
MAX
=
175 MHz at V
CC
=
5V
s
Low power dissipation: I
CC
=
4
碌
A (max) at T
A
=
25
擄
C
s
High noise immunity: V
NIH
=
V
NIL
=
28% V
CC
(min)
s
Power down protection provided on all inputs
s
Low noise: V
OLP
=
0.8V (max)
s
Pin and function compatible with 74HC164
Ordering Code:
Order Number
74VHC164M
74VHC164SJ
74VHC164MTC
74VHC164N
Package Number
M14A
M14D
MTC14
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Connection Diagram
Pin Descriptions
Pin Names
A, B
CP
MR
Q
0
鈥換
7
Data Inputs
Clock Pulse Input (Active Rising Edge)
Master Reset Input (Active LOW)
Outputs
Description
漏 2002 Fairchild Semiconductor Corporation
DS011636
www.fairchildsemi.com

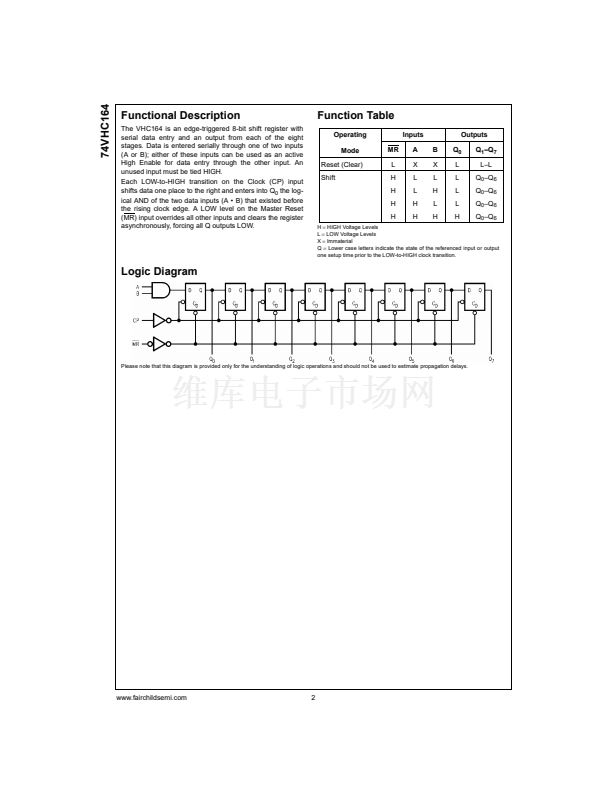

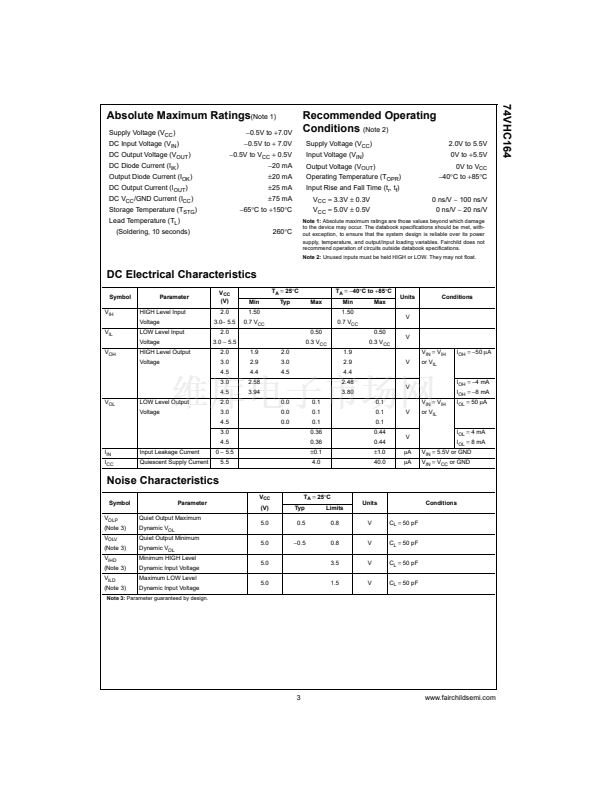

74VHC164SJX 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 邏輯 - 移位寄存器

  • 74VHC

  • 移位寄存器

  • 標準

  • 1

  • 8

  • 串行至并行

  • 2 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC（0.209"，5.30mm 寬）

  • 14-SOIC

  • 帶卷 (TR)
