74VCX32MX Datasheet

  • 74VCX32MX

  • Quad 2-input OR Gate

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74VCX32 Low Voltage Quad 2-Input OR Gate with 3.6V Tolerant Inputs and Outputs
July 1999
Revised January 2001
74VCX32
Low Voltage Quad 2-Input OR Gate with
3.6V Tolerant Inputs and Outputs
General Description
The VCX32 contains four 2-input OR gates. This product is
designed for low voltage (1.65V to 3.6V) V
CC
applications
with I/O compatibility up to 3.6V.
The VCX32 is fabricated with an advanced CMOS technol-
ogy to achieve high-speed operation while maintaining low
CMOS power dissipation.
Features
s
1.65V-3.6V V
CC
supply operation
s
3.6V tolerant inputs and outputs
s
t
PD
2.8 ns max for 3.0V to 3.6V V
CC
3.7 ns max for 2.3V to 2.7V V
CC
7.4 ns max for 1.65V to 1.95V V
CC
s
Power-off high impedance inputs and outputs
s
Static Drive (I
OH
/I
OL
)
鹵
24 mA @ 3.0V V
CC
鹵
18 mA @ 2.3V V
CC
鹵
6 mA @ 1.65V V
CC
s
Uses patented Quiet Series
錚?/div>
noise/EMI reduction
circuitry
s
Latchup performance exceeds 300 mA
s
ESD performance:
Human body model
>
2000V
Machine model
>
250V
Ordering Code:
Order Number
74VCX32M
74VCX32MTC
Package Number
M14A
MTC14
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
IEEC/IEC
Connection Diagram
Pin Descriptions
Pin Names
A
n
, B
n
O
n
Quiet Series錚?is a trademark of Fairchild Semiconductor Corporation.
Description
Inputs
Outputs
漏 2001 Fairchild Semiconductor Corporation
ds500162
www.fairchildsemi.com

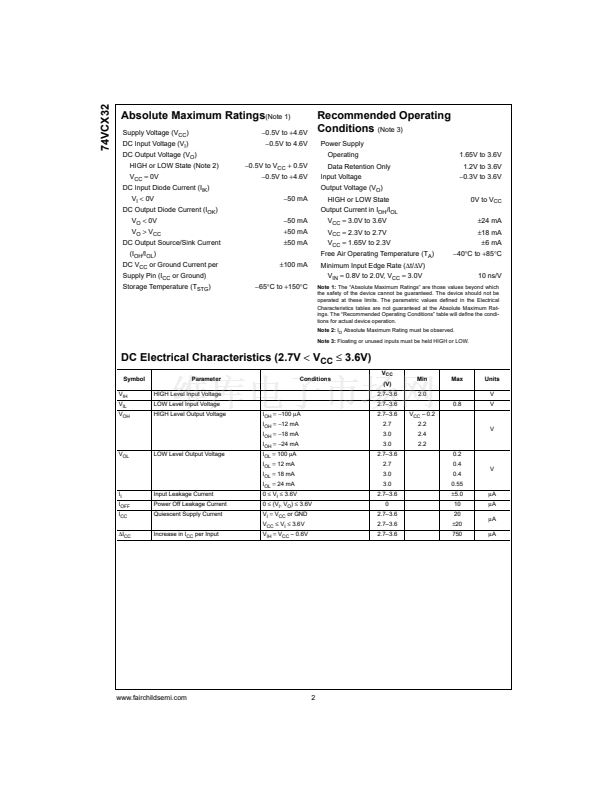

74VCX32MX 產品屬性

  • 2,500

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74VCX

  • 或門

  • 4

  • 2

  • -

  • 1.2 V ~ 3.6 V

  • 20µA

  • 24mA，24mA

  • 0.7 V ~ 0.8 V

  • 1.6 V ~ 2 V

  • 2.8ns @ 3.3V，30pF

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC

  • 14-SOIC（0.154"，3.90mm 寬）

  • 帶卷 (TR)
