74LX1G70CTR Datasheet

  • 74LX1G70CTR

  • SINGLE BUFFER

  • 10頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74LX1G70
SINGLE BUFFER
s
s
s
s
s
s
s
s
5V TOLERANT INPUTS
HIGH SPEED: t
PD
= 4.2ns (MAX.) at V
CC
= 3V
LOW POWER DISSIPATION:
I
CC
= 1碌A(chǔ) (MAX.) at T
A
= 25擄C
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3V
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 5.5V
(1.2V Data Retention)
IMPROVED LATCH-UP IMMUNITY

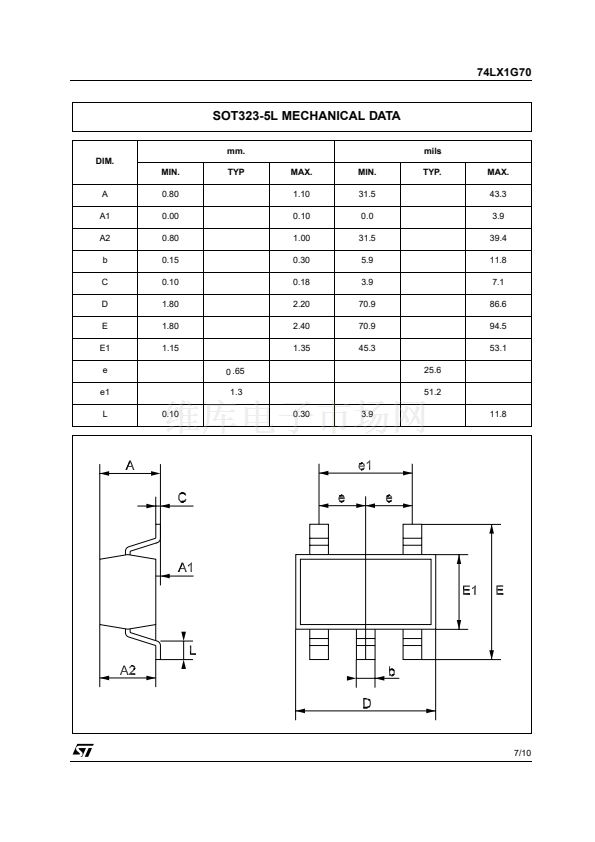

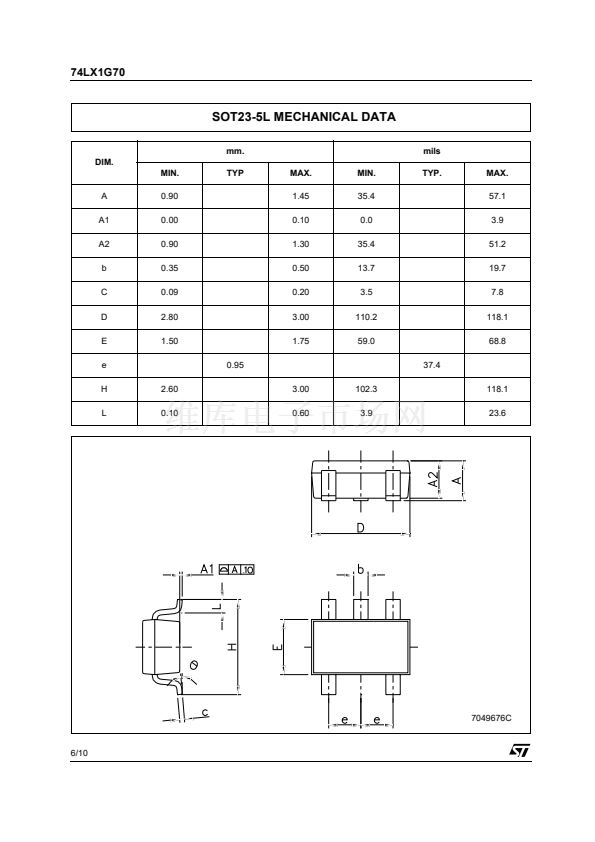

SOT23-5L
SOT323-5L
ORDER CODES
PACKAGE
SOT23-5L
SOT323-5L
T&R
74LX1G70STR
74LX1G70CTR

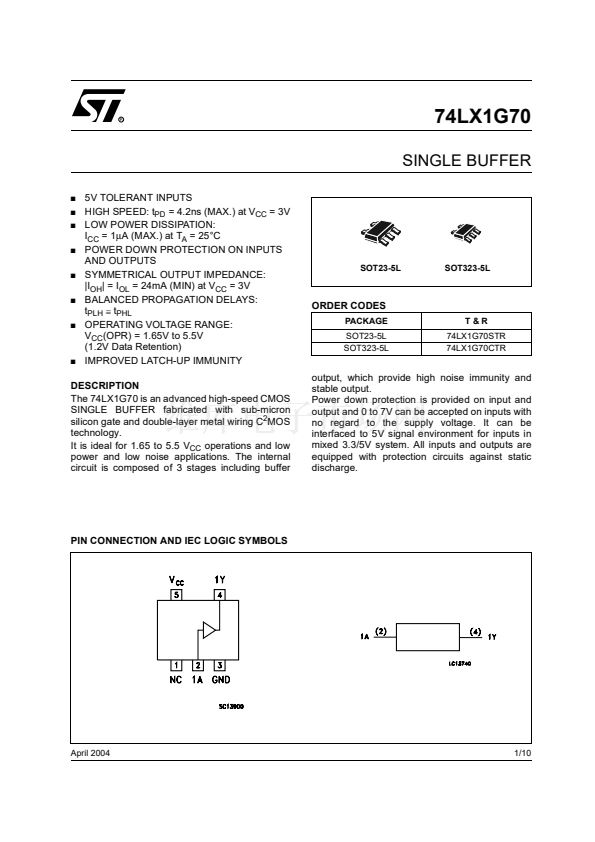

DESCRIPTION
The 74LX1G70 is an advanced high-speed CMOS
SINGLE BUFFER fabricated with sub-micron
silicon gate and double-layer metal wiring C
2
MOS
technology.
It is ideal for 1.65 to 5.5 V
CC
operations and low
power and low noise applications. The internal
circuit is composed of 3 stages including buffer
output, which provide high noise immunity and
stable output.
Power down protection is provided on input and
output and 0 to 7V can be accepted on inputs with
no regard to the supply voltage. It can be
interfaced to 5V signal environment for inputs in
mixed 3.3/5V system. All inputs and outputs are
equipped with protection circuits against static
discharge.
PIN CONNECTION AND IEC LOGIC SYMBOLS
April 2004
1/10

74LX1G70CTR 產品屬性

  • 74LX1G70 View All Specifications

  • 1

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LX

  • 緩沖器/線路驅動器，非反相

  • 1

  • 1

  • 32mA，32mA

  • 1.65 V ~ 5.5 V

  • -55°C ~ 125°C

  • 表面貼裝

  • 6-TSSOP（5 引線），SC-88A，SOT-353

  • SOT-323-5

  • Digi-Reel®

  • 497-4519-6
