74LVX374 Low Voltage Octal D-Type Flip-Flop with 3-STATE Outputs
October 1993
Revised April 2005
74LVX374
Low Voltage Octal D-Type Flip-Flop with
3-STATE Outputs
General Description
The LVX374 is a high-speed, low-power octal D-type flip-
flop featuring separate D-type inputs for each flip-flop and
3-STATE outputs for bus-oriented applications. A buffered
Clock (CP) and Output Enable (OE) are common to all flip-
flops. The inputs tolerate up to 7V allowing interface of 5V
systems to 3V systems.
Features
s
Input voltage translation from 5V to 3V
s
Ideal for low power/low noise 3.3V applications
s
Guaranteed simultaneous switching noise level and
dynamic threshold performance
Ordering Code:
Order Number
74LVX374M
74LVX374SJ
74LVX374MTC
Package Number
M20B
M20D
MTC20
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
Pb-Free 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Pb-Free package per JEDEC J-STD-020B.
Logic Symbols
Connection Diagram
IEEE/IEC
Pin Descriptions
Pin Names
D
0
鈥揇
7
CP
OE
O
0
鈥揙
7
Data Inputs
Clock Pulse Input
3-STATE Output Enable Input
3-STATE Outputs
Description

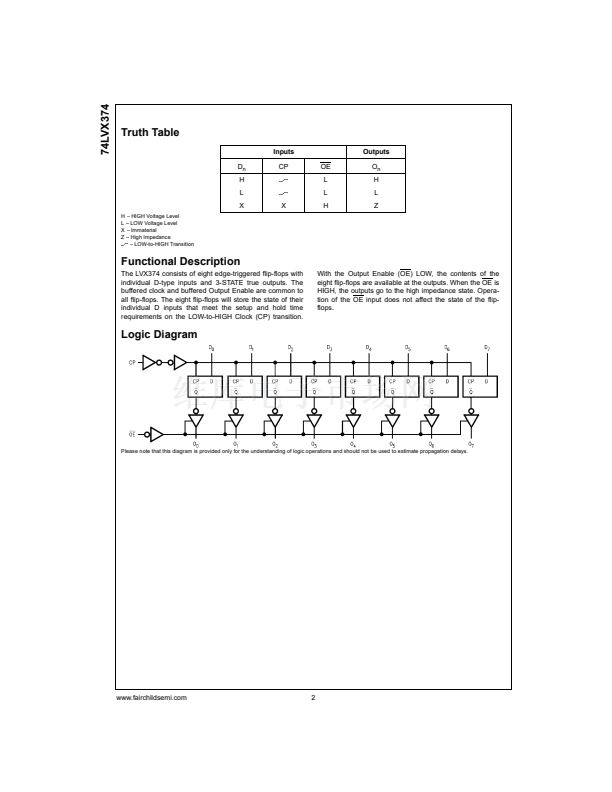

漏 2005 Fairchild Semiconductor Corporation
DS011612
www.fairchildsemi.com
