74LVTH16652 Low Voltage 16-Bit Transceiver/Register with 3-STATE Outputs
January 2000
Revised November 2000
74LVTH16652
Low Voltage 16-Bit Transceiver/Register
with 3-STATE Outputs
General Description
The LVTH16652 consists of sixteen bus transceiver circuits
with D-type flip-flops, and control circuitry arranged for mul-
tiplexed transmission of data directly from the input bus or
from the internal registers. Each byte has separate control
inputs which can be shorted together for full 16-bit opera-
tion. Data on the A or B bus will be clocked into the regis-
ters as the appropriate clock pin goes to the HIGH logic
level. Output Enable pins (OEAB, OEBA) are provided to
control the transceiver function (see Functional Descrip-
tion).
The LVTH16652 data inputs include bushold, eliminating
the need for external pull-up resistors to hold unused
inputs.
The transceivers are designed for low-voltage (3.3V) V
CC
applications, but with the capability to provide a TTL inter-
face to a 5V environment. The LVTH16652 is fabricated
with an advanced BiCMOS technology to achieve high
speed operation similar to 5V ABT while maintaining low
power dissipation.
Features
s
Input and output interface capability to systems at
5V V
CC
s
Bushold data inputs eliminate the need for external
pull-up resistors to hold unused inputs
s
Live insertion/extraction permitted
s
Power Up/Down high impedance provides glitch-free
bus loading
s
Outputs source/sink
鈭?/div>
32 mA/
+
64 mA
s
Functionally compatible with the 74 series 16652
s
Latch-up performance exceeds 500 mA
s
ESD performance:
Human-body model
>
2000V
Machine model
>
200V
Charged-device model
>
1000V
Ordering Code:
Order Number
74LVTH16652MEA
74LVTH16652MTD
Package Number
MS56A
MTD56
Package Description
56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300 Wide
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
漏 2000 Fairchild Semiconductor Corporation
DS012024
www.fairchildsemi.com

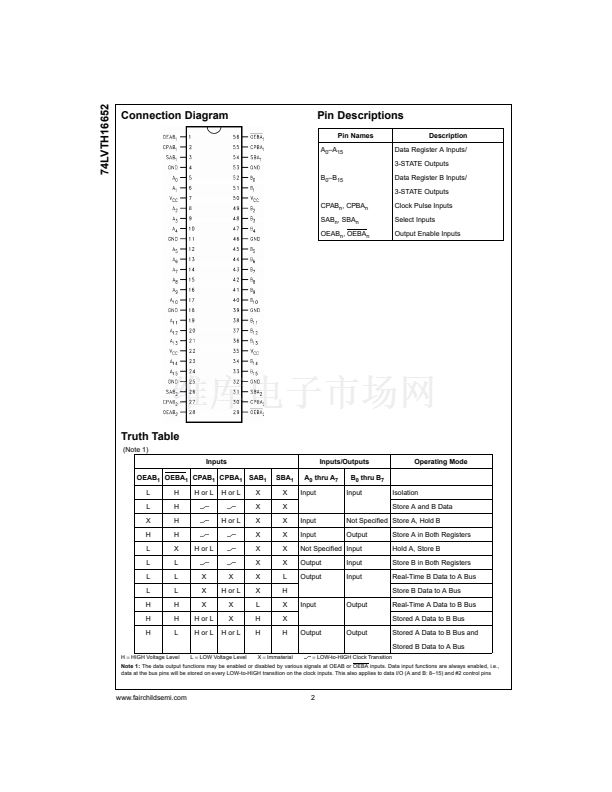

74LVTH16652MTDX 產品屬性

  • 1,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LVTH

  • 寄存收發器，非反相

  • 2

  • 8

  • 32mA，64mA

  • 2.7 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 56-TFSOP（0.240"，6.10mm 寬）

  • 56-TSSOP

  • 帶卷 (TR)
