74LVTH16244MTDX Datasheet

  • 74LVTH16244MTDX

  • BUFFER/DRIVER|QUAD|4-BIT|LVT/ALVT-BICMOS|TSSOP|48PIN|PLASTIC

  • 92.87KB

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

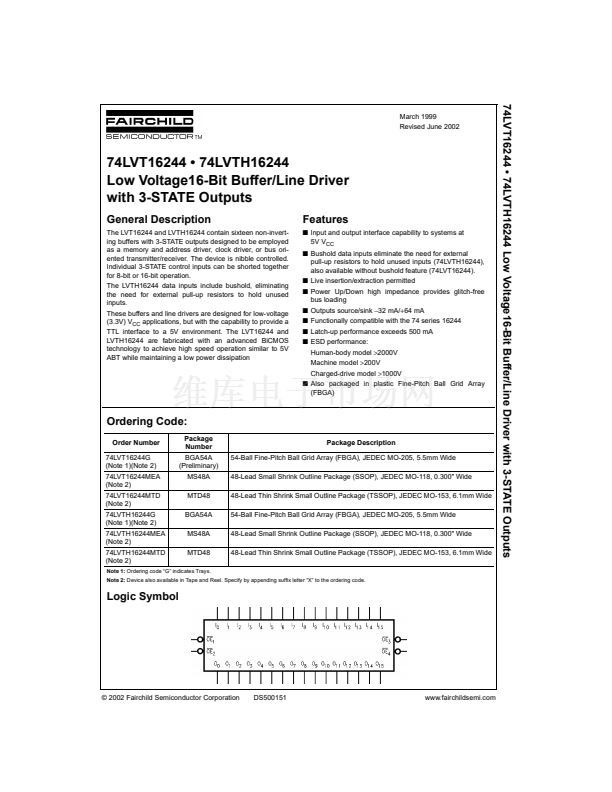

74LVT16244 鈥?74LVTH16244 Low Voltage16-Bit Buffer/Line Driver with 3-STATE Outputs
March 1999
Revised June 2002
74LVT16244 鈥?74LVTH16244
Low Voltage16-Bit Buffer/Line Driver
with 3-STATE Outputs
General Description
The LVT16244 and LVTH16244 contain sixteen non-invert-
ing buffers with 3-STATE outputs designed to be employed
as a memory and address driver, clock driver, or bus ori-
ented transmitter/receiver. The device is nibble controlled.
Individual 3-STATE control inputs can be shorted together
for 8-bit or 16-bit operation.
The LVTH16244 data inputs include bushold, eliminating
the need for external pull-up resistors to hold unused
inputs.
These buffers and line drivers are designed for low-voltage
(3.3V) V
CC
applications, but with the capability to provide a
TTL interface to a 5V environment. The LVT16244 and
LVTH16244 are fabricated with an advanced BiCMOS
technology to achieve high speed operation similar to 5V
ABT while maintaining a low power dissipation
Features
s
Input and output interface capability to systems at
5V V
CC
s
Bushold data inputs eliminate the need for external
pull-up resistors to hold unused inputs (74LVTH16244),
also available without bushold feature (74LVT16244).
s
Live insertion/extraction permitted
s
Power Up/Down high impedance provides glitch-free
bus loading
s
Outputs source/sink
鈭?/div>
32 mA/
+
64 mA
s
Functionally compatible with the 74 series 16244
s
Latch-up performance exceeds 500 mA
s
ESD performance:
Human-body model
>
2000V
Machine model
>
200V
Charged-drive model
>
1000V
s
Also packaged in plastic Fine-Pitch Ball Grid Array
(FBGA)
Ordering Code:
Order Number
74LVT16244G
(Note 1)(Note 2)
74LVT16244MEA
(Note 2)
74LVT16244MTD
(Note 2)
74LVTH16244G
(Note 1)(Note 2)
74LVTH16244MEA
(Note 2)
74LVTH16244MTD
(Note 2)
Package
Number
BGA54A
(Preliminary)
MS48A
MTD48
BGA54A
MS48A
MTD48
Package Description

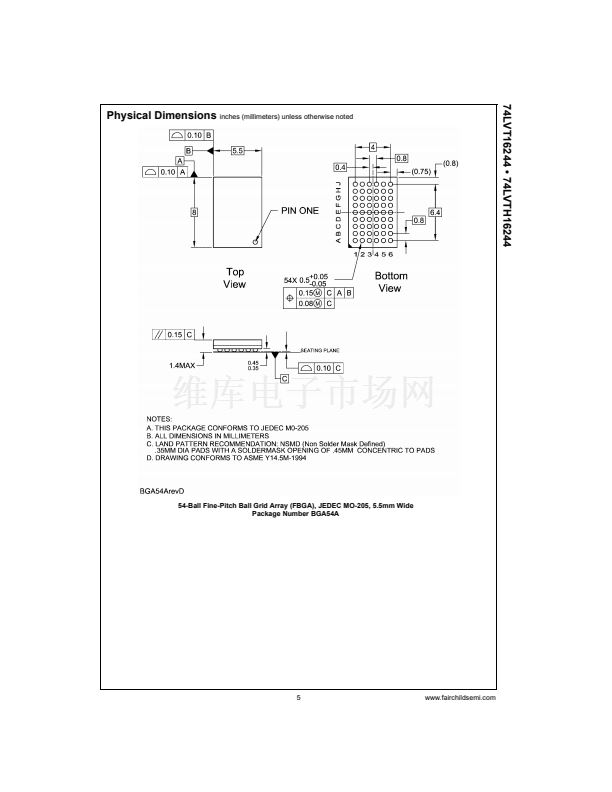

54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide

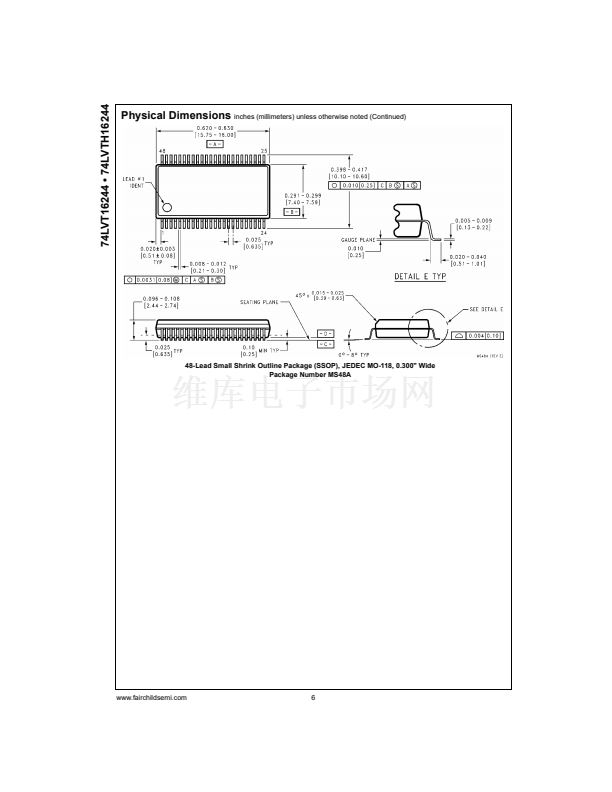

48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide

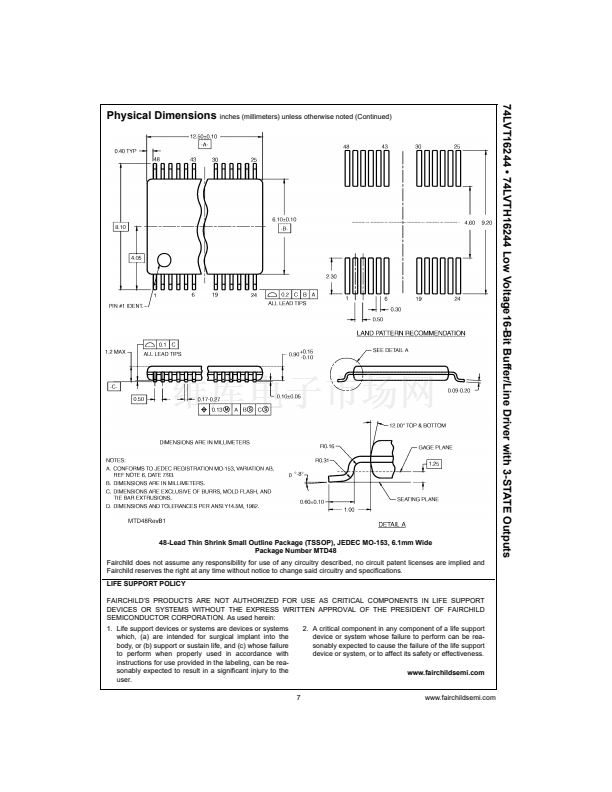

48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Note 1:
Ordering code 鈥淕鈥?indicates Trays.
Note 2:
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.

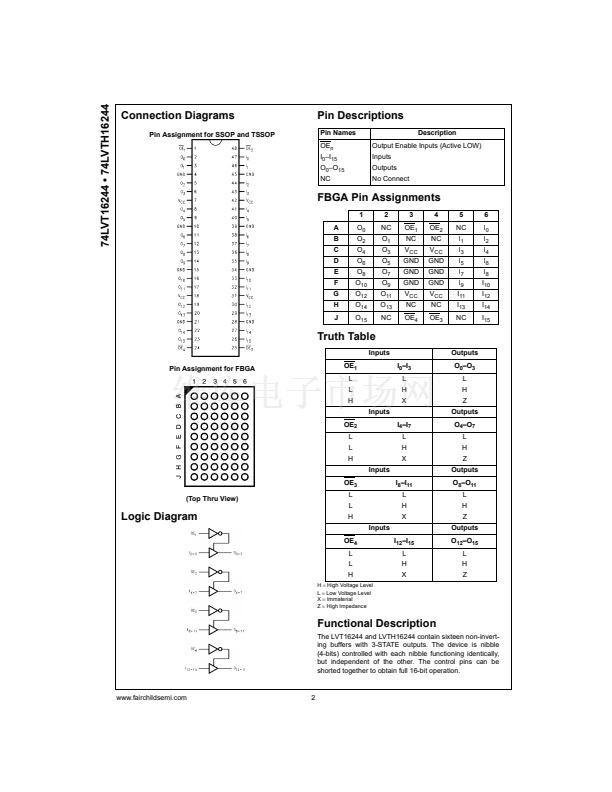

Logic Symbol
漏 2002 Fairchild Semiconductor Corporation
DS500151
www.fairchildsemi.com

74LVTH16244MTDX 產品屬性

  • 1,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74LVTH

  • 緩沖器/線路驅動器，非反相

  • 4

  • 4

  • 32mA，64mA

  • 2.7 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 48-TFSOP（0.240"，6.10mm 寬）

  • 48-TSSOP

  • 帶卷 (TR)

  • 74LVTH16244MTDX-ND74LVTH16244MTDXTR
