Family
Operates From 2.7 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t
pd
of 3.7 ns at 3.3 V
I
off
and Power-Up 3-State Support Hot
Insertion
Supports Mixed-Mode Signal Operation on
All Ports (5-V Input/Output Voltage With
3.3-V V
CC
)
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
鈥?2000-V Human-Body Model (A114-A)
鈥?1000-V Charged-Device Model (C101)
DGG, DGV, OR DL PACKAGE
(TOP VIEW)
description/ordering information
This 16-bit (dual-octal) noninverting bus
transceiver is designed for 2.7-V to 3.6-V V
CC
operation.
The SN74LVCZ16245A is designed for
asynchronous communication between data
buses. The control-function implementation
minimizes external timing requirements.
1DIR
1B1
1B2
GND
1B3
1B4
V
CC
1B5
1B6
GND
1B7
1B8
2B1
2B2
GND
2B3
2B4
V
CC
2B5
2B6
GND
2B7
2B8
2DIR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
1OE
1A1
1A2
GND
1A3
1A4
V
CC
1A5
1A6
GND
1A7
1A8
2A1
2A2
GND
2A3
2A4
V
CC
2A5
2A6
GND
2A7
2A8
2OE

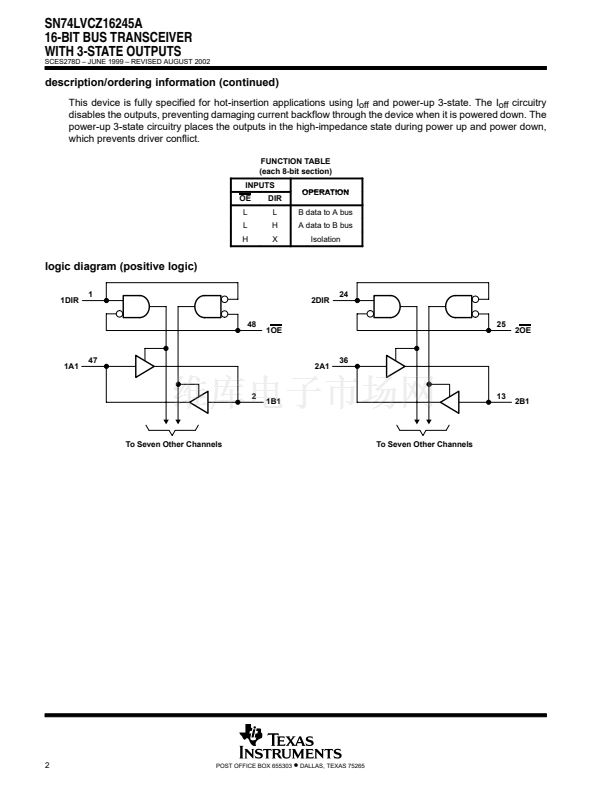

This device can be used as two 8-bit transceivers
or one 16-bit transceiver. It allows data
transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the
direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses
are effectively isolated.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators
in a mixed 3.3-V/5-V system environment.
When V
CC
is between 0 and 1.5 V, the device is in the high-impedance state during power up or power down.
However, to ensure the high-impedance state above 1.5 V, OE should be tied to V
CC
through a pullup resistor;
the minimum value of the resistor is determined by the current-sinking capability of the driver.
ORDERING INFORMATION
TA
PACKAGE鈥?/div>
SSOP 鈥?DL
鈥?0擄C to 85擄C
40擄C
TSSOP 鈥?DGG
TVSOP 鈥?DGV
Tube
Tape and reel
Tape and reel
Tape and reel
ORDERABLE
PART NUMBER
SN74LVCZ16245ADL
SN74LVCZ16245ADLR
SN74LVCZ16245ADGGR
SN74LVCZ16245ADGVR
TOP-SIDE
MARKING
LVCZ16245A
LVCZ16245A
CW245A
鈥?Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines
are available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Widebus is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
2002, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
