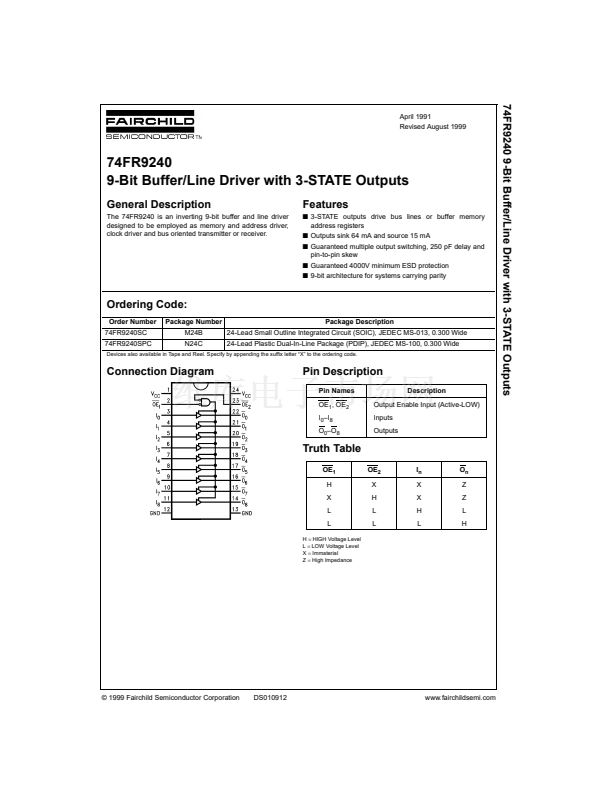

74FR9240 9-Bit Buffer/Line Driver with 3-STATE Outputs
April 1991
Revised August 1999
74FR9240
9-Bit Buffer/Line Driver with 3-STATE Outputs
General Description
The 74FR9240 is an inverting 9-bit buffer and line driver
designed to be employed as memory and address driver,
clock driver and bus oriented transmitter or receiver.
Features
s
3-STATE outputs drive bus lines or buffer memory
address registers
s
Outputs sink 64 mA and source 15 mA
s
Guaranteed multiple output switching, 250 pF delay and
pin-to-pin skew
s
Guaranteed 4000V minimum ESD protection
s
9-bit architecture for systems carrying parity
Ordering Code:
Order Number
74FR9240SC
74FR9240SPC
Package Number
M24B
N24C
Package Description
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Pin Description
Pin Names
OE
1
, OE
2
I
0
鈥揑
8
O
0
鈥揙
8
Description
Output Enable Input (Active-LOW)
Inputs
Outputs
Truth Table
OE
1
H
X
L
L
H
=
HIGH Voltage Level
L
=
LOW Voltage Level
X
=
Immaterial
Z
=
High Impedance
OE
2
X
H
L
L
I
n
X
X
H
L
O
n
Z
Z
L
H
漏 1999 Fairchild Semiconductor Corporation
DS010912
www.fairchildsemi.com
