74FR16245 16-Bit Transceiver with 3-STATE Outputs
October 1989
Revised August 1999
74FR16245
16-Bit Transceiver with 3-STATE Outputs
General Description
The 74FR16245 contains sixteen non-inverting bidirec-
tional buffers with 3-STATE outputs and is intended for bus-
oriented applications. Current sinking capability is 64 mA
on both the A and B Ports. The device is byte controlled.
Each byte has separate control inputs which can be
shorted together for full 16-bit operation. The transmit/
receive (T/R
n
) inputs determine the direction of data flow
through the transceiver. The output enable (OE
n
) inputs
disable both A and B Ports by placing them in an high
impedance state.
Features
s
Non-inverting buffers
s
Bidirectional data paths
s
A and B output sink capability of 64 mA, source
capability of 15 mA
s
Separate control pins for each byte
s
Guaranteed pin-to-pin skew
s
Low 3-STATE I
IL
s
16-Bit version of the 74F245 or 74F645
Ordering Code:
Order Number
74FR16245QC
74FR16245SSC
Package Number
V44A
MS48A
Package Description

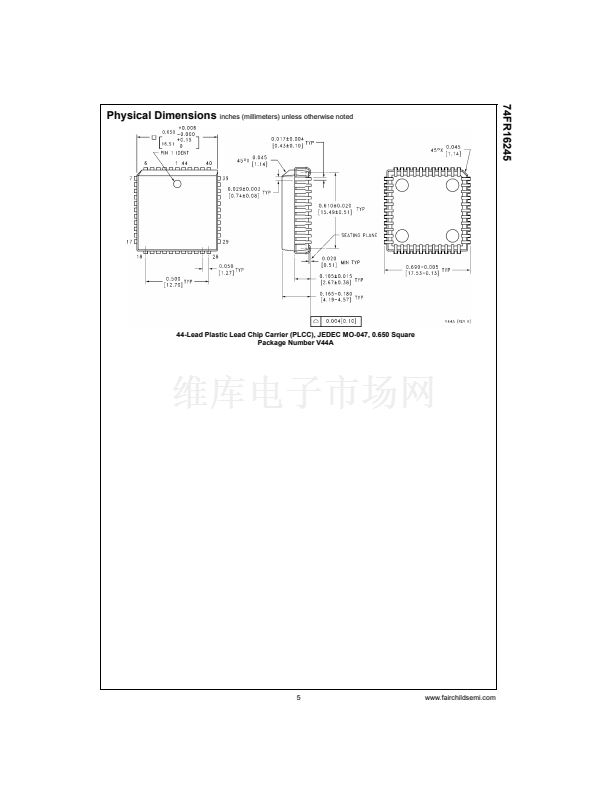

44-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.650 Square
48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagrams
Pin Assignment for SSOP
Pin Assignment for PLCC
Logic Symbol
漏 1999 Fairchild Semiconductor Corporation
DS010614
www.fairchildsemi.com
