74F676 16-Bit Serial/Parallel-In, Serial-Out Shift Register
April 1988
Revised August 1999
74F676
16-Bit Serial/Parallel-In, Serial-Out Shift Register
General Description
The 74F676 contains 16 flip-flops with provision for syn-
chronous parallel or serial entry and serial output. When
the Mode (M) input is HIGH, information present on the
parallel data (P
0
鈥揚
15
) inputs is entered on the falling edge
of the Clock Pulse (CP) input signal. When M is LOW, data
is shifted out of the most significant bit position while infor-
mation present on the Serial (SI) input shifts into the least
significant bit position. A HIGH signal on the Chip Select
(CS) input prevents both parallel and serial operations.
Features
s
16-bit parallel-to-serial conversion
s
16-bit serial-in, serial-out
s
Chip select control
s
Slim 24 lead 300 mil package

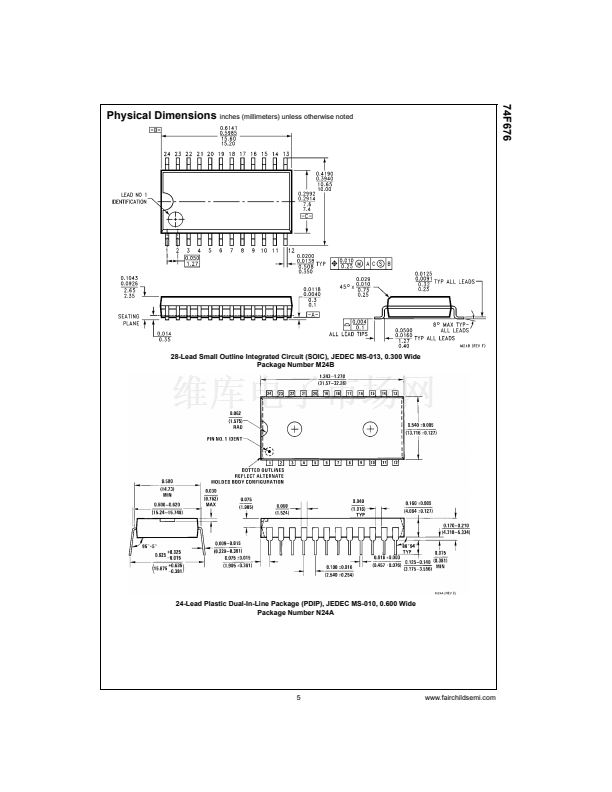

Ordering Code:
Order Number
74F676SC
74F676PC
74F676SPC
Package Number
M24B
N24A
N24C
Package Description
28-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-010, 0.600 Wide
24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbols
Connection Diagram
IEEE/IEC
漏 1999 Fairchild Semiconductor Corporation
DS009588
www.fairchildsemi.com
