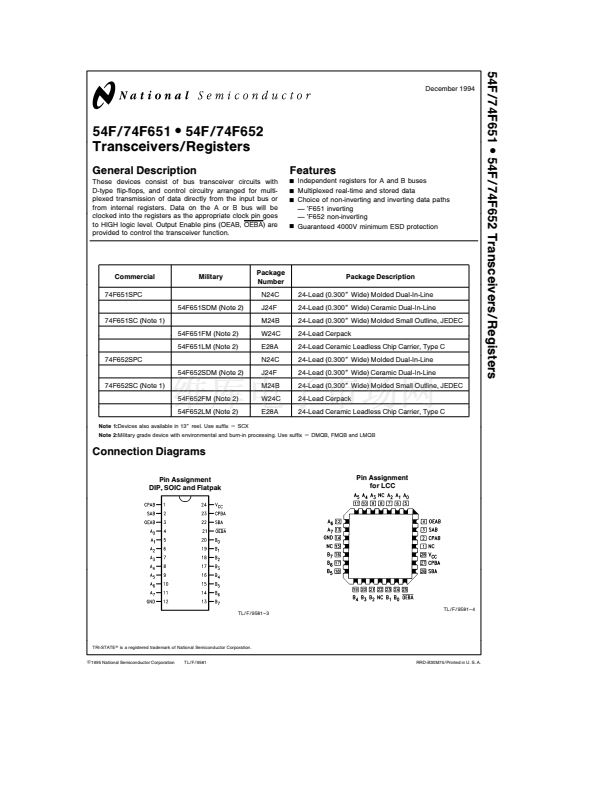

54F 74F651
54F 74F652 Transceivers Registers
December 1994
54F 74F651
54F 74F652
Transceivers Registers

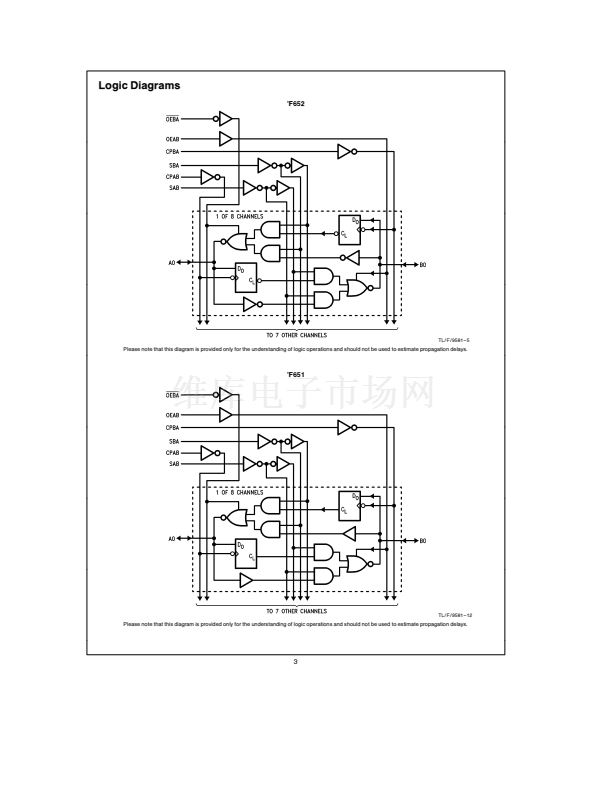

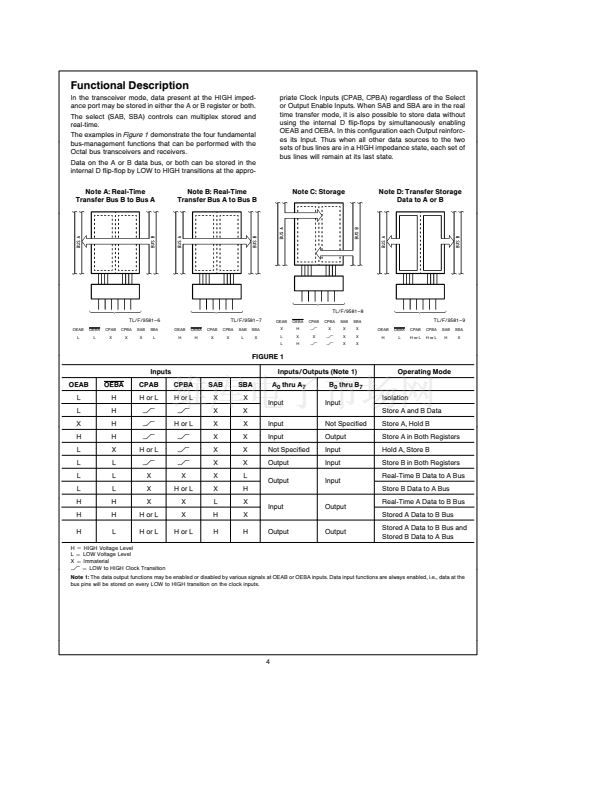

General Description
These devices consist of bus transceiver circuits with
D-type flip-flops and control circuitry arranged for multi-
plexed transmission of data directly from the input bus or
from internal registers Data on the A or B bus will be
clocked into the registers as the appropriate clock pin goes
to HIGH logic level Output Enable pins (OEAB OEBA) are
provided to control the transceiver function
Features
Y
Y
Y
Y
Independent registers for A and B buses
Multiplexed real-time and stored data
Choice of non-inverting and inverting data paths
鈥橣651 inverting
鈥橣652 non-inverting
Guaranteed 4000V minimum ESD protection
Commercial
74F651SPC
Military

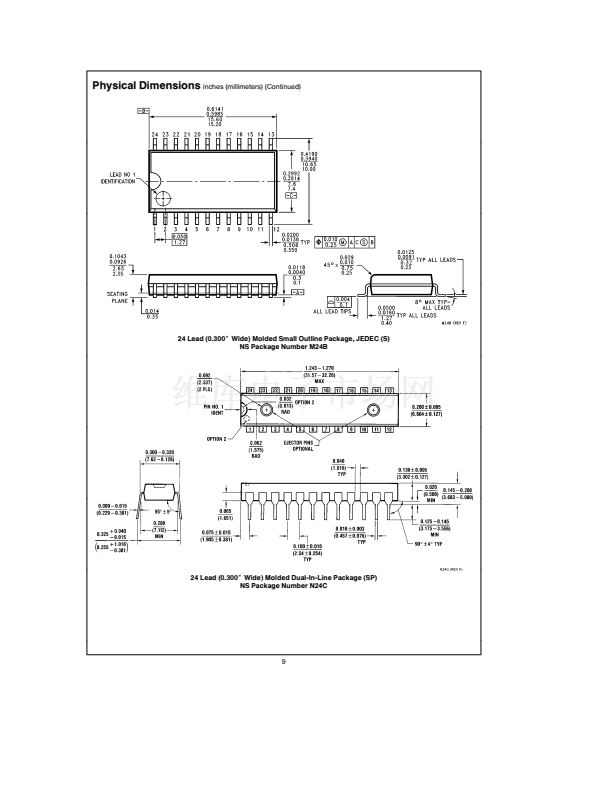

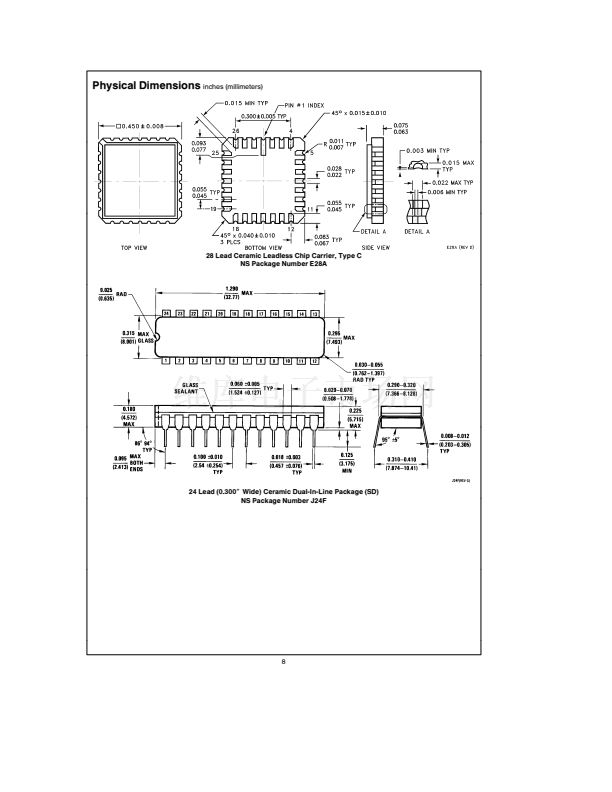

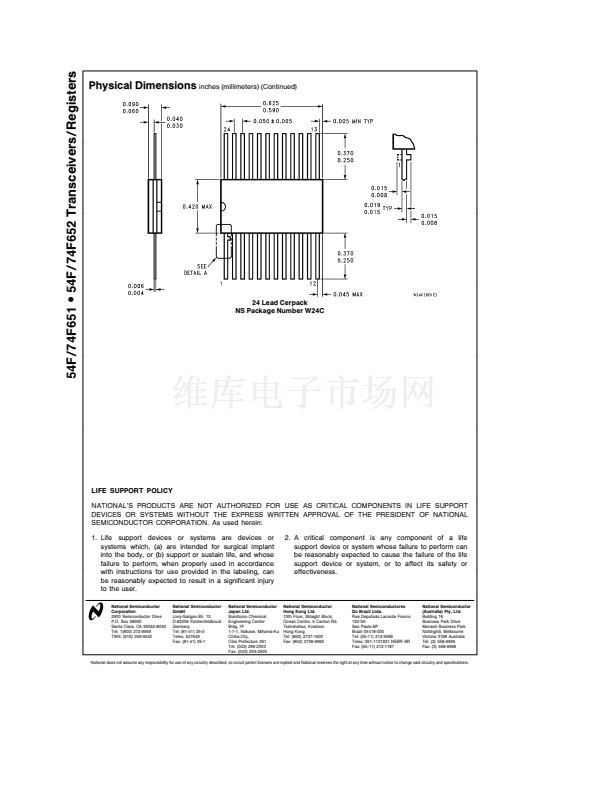

Package
Number
N24C
Package Description
24-Lead (0 300 Wide) Molded Dual-In-Line
24-Lead (0 300 Wide) Ceramic Dual-In-Line
24-Lead (0 300 Wide) Molded Small Outline JEDEC
24-Lead Cerpack
24-Lead Ceramic Leadless Chip Carrier Type C
24-Lead (0 300 Wide) Molded Dual-In-Line
24-Lead (0 300 Wide) Ceramic Dual-In-Line
24-Lead (0 300 Wide) Molded Small Outline JEDEC
24-Lead Cerpack
24-Lead Ceramic Leadless Chip Carrier Type C
54F651SDM (Note 2)
74F651SC (Note 1)
54F651FM (Note 2)
54F651LM (Note 2)
74F652SPC
54F652SDM (Note 2)
74F652SC (Note 1)
54F652FM (Note 2)
54F652LM (Note 2)
Note 1
Devices also available in 13 reel Use suffix
e
SCX
J24F
M24B
W24C
E28A
N24C
J24F
M24B
W24C
E28A
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
Connection Diagrams
Pin Assignment
DIP SOIC and Flatpak
Pin Assignment
for LCC
TL F 9581 鈥?3
TL F 9581 鈥?4
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9581
RRD-B30M75 Printed in U S A
