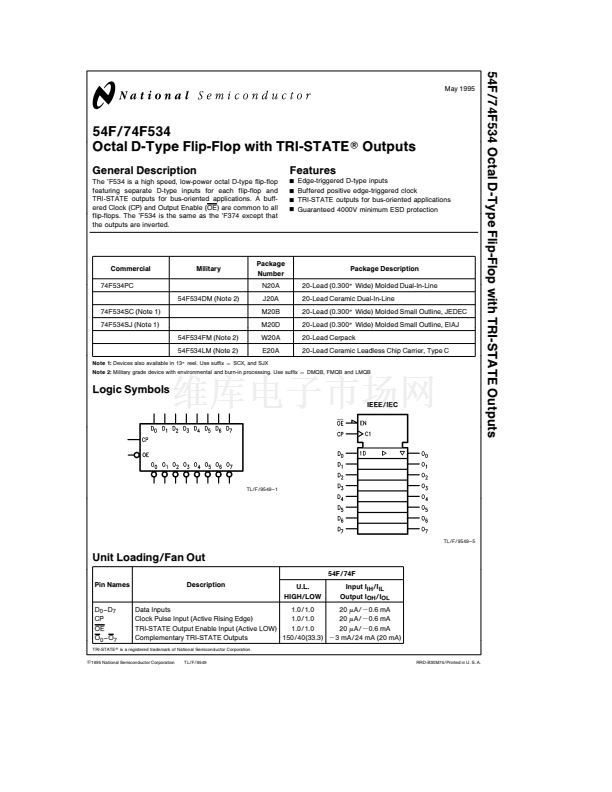

54F 74F534 Octal D-Type Flip-Flop with TRI-STATE Outputs
May 1995
54F 74F534
Octal D-Type Flip-Flop with TRI-STATE Outputs
General Description
The 鈥橣534 is a high speed low-power octal D-type flip-flop
featuring separate D-type inputs for each flip-flop and
TRI-STATE outputs for bus-oriented applications A buff-
ered Clock (CP) and Output Enable (OE) are common to all
flip-flops The 鈥橣534 is the same as the 鈥橣374 except that
the outputs are inverted
Features
Y
Y
Y
Y
Edge-triggered D-type inputs
Buffered positive edge-triggered clock
TRI-STATE outputs for bus-oriented applications
Guaranteed 4000V minimum ESD protection
Commercial
74F534PC
Military
Package
Number
N20A
Package Description
20-Lead (0 300 Wide) Molded Dual-In-Line
20-Lead Ceramic Dual-In-Line
20-Lead (0 300 Wide) Molded Small Outline JEDEC
20-Lead (0 300 Wide) Molded Small Outline EIAJ
20-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
54F534DM (Note 2)
74F534SC (Note 1)
74F534SJ (Note 1)
54F534FM (Note 2)
54F534LM (Note 2)
J20A
M20B
M20D
W20A
E20A
Note 1
Devices also available in 13 reel Use suffix
e
SCX and SJX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
Logic Symbols
IEEE IEC
TL F 9549 鈥?1
TL F 9549 鈥?5
Unit Loading Fan Out
54F 74F
Pin Names
Description
UL
HIGH LOW
Input I
IH
I
IL
Output I
OH
I
OL
D
0
鈥揇
7
CP
OE
O
0
鈥揙
7
Data Inputs
10 10
20
mA
b
0 6 mA
Clock Pulse Input (Active Rising Edge)
10 10
20
mA
b
0 6 mA
TRI-STATE Output Enable Input (Active LOW)
10 10
20
mA
b
0 6 mA
b
3 mA 24 mA (20 mA)
Complementary TRI-STATE Outputs
150 40(33 3)
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9549
RRD-B30M75 Printed in U S A

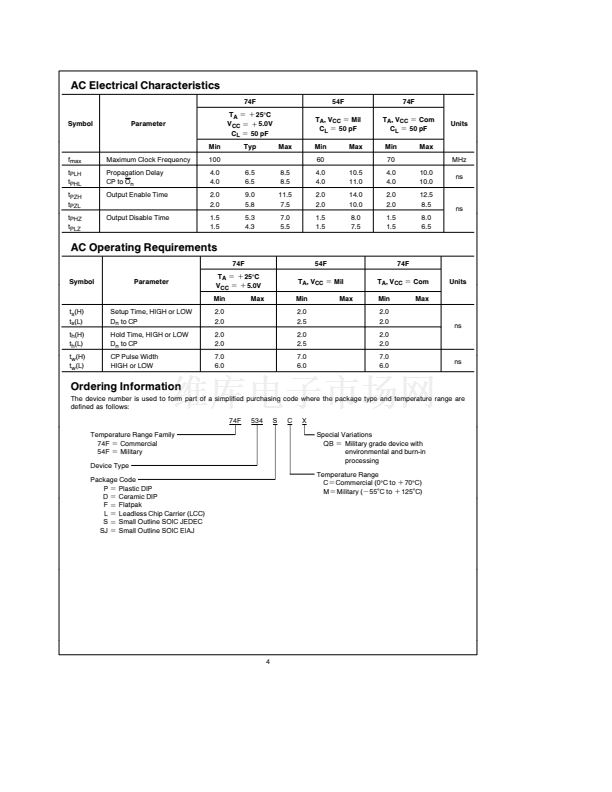

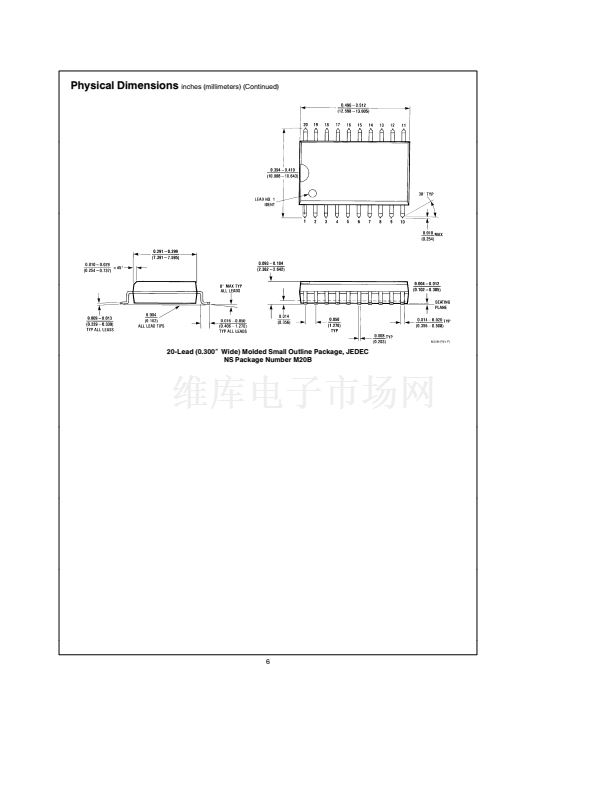

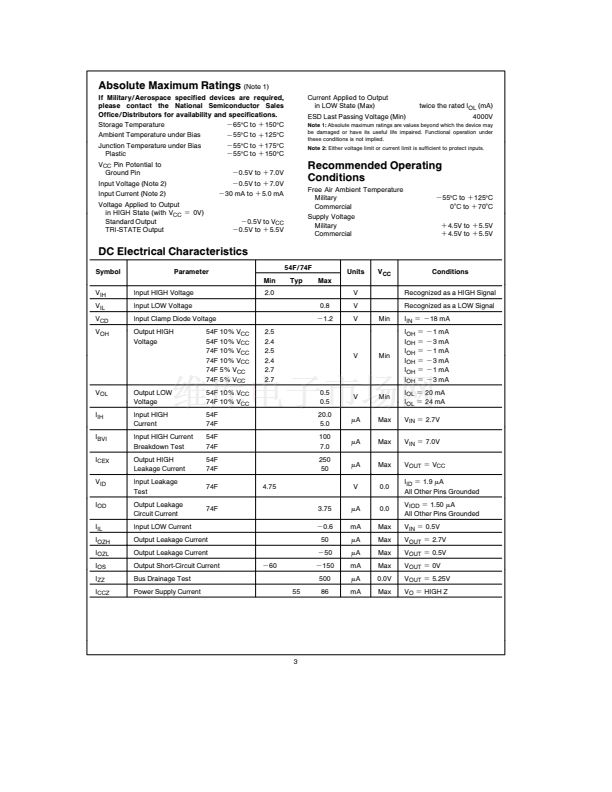

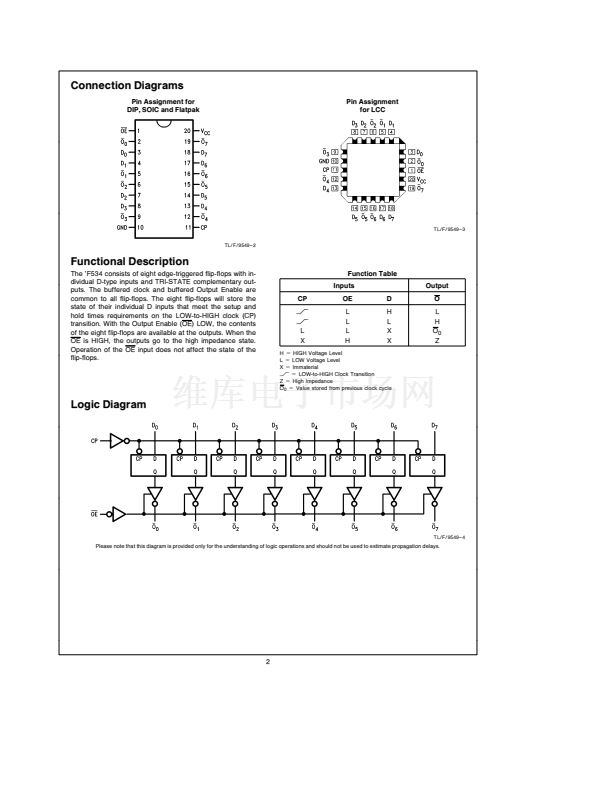

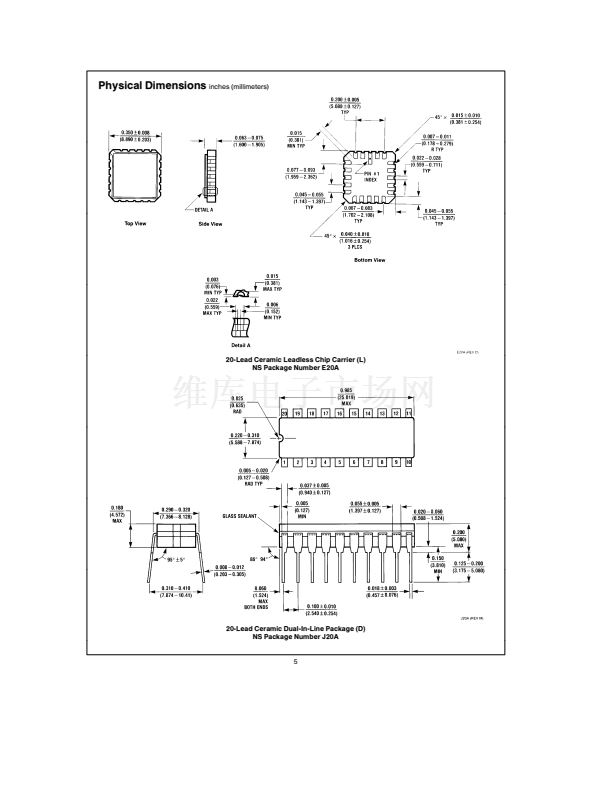

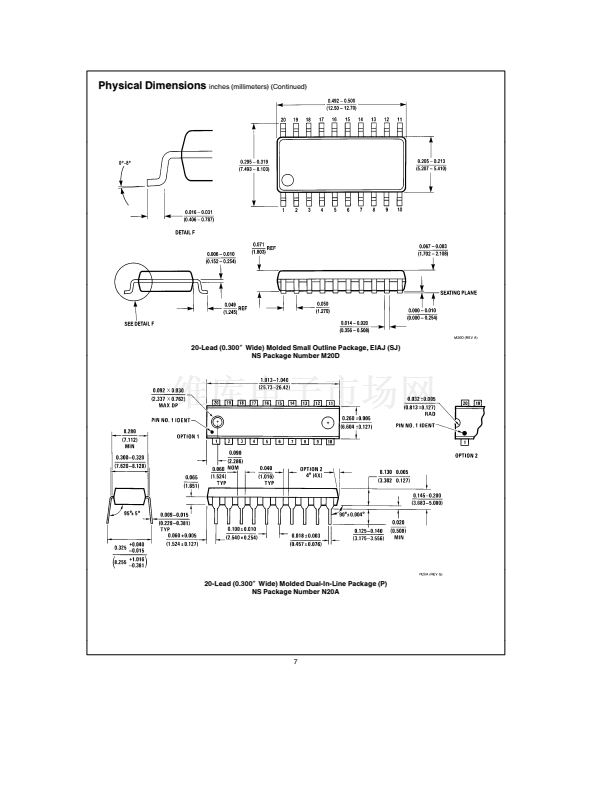

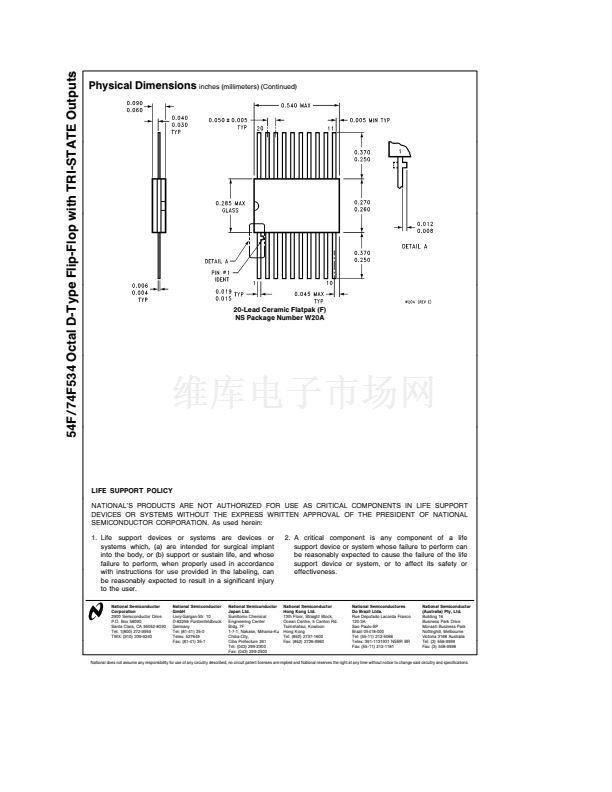

74F534SJ 產品屬性

  • 38

  • 集成電路 (IC)

  • 邏輯 - 觸發器

  • 74F

  • 標準

  • D 型總線

  • 三態非反相

  • 1

  • 8

  • 100MHz

  • 6.5ns

  • 正邊沿

  • 3mA，24mA

  • 4.5 V ~ 5.5 V

  • 0°C ~ 70°C

  • 表面貼裝

  • 20-SOIC（0.209"，5.30mm 寬）

  • 管件

74F534SJ相關型號PDF文件下載
