74ALVCH32245LBR Datasheet

  • 74ALVCH32245LBR

  • BUS TRANSCEIVER|QUAD|8-BIT|AVC/ALVC-CMOS|BGA|96PIN|PLASTIC

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ALVCH32245
LOW VOLTAGE CMOS 32-BIT BUS TRANSCEIVER
(3-STATE) WITH 3.6V TOLERANTAT INPUTS AND OUTPUTS
s
s
s
s
s
s
s
s
s
3.6V TOLERANT INPUTS AND OUTPUTS
HIGH SPEED:
t
PD
= 3.0ns (MAX.) at V
CC
= 3.0 to 3.6V
t
PD
= 3.7ns (MAX.) at V
CC
= 2.3 to 2.7V
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3V
|I
OH
| = I
OL
= 8mA (MIN) at V
CC
= 2.3V
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 3.6V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 32245
BUS HOLD PROVIDED ON BOTH SIDE
LATCH-UP PERFORMANCE EXCEEDS
300mA
ESD PERFORMANCE:
HBM > 2000V (MIL STD 883 method 3015);
MM > 200V
LFBGA96
(Top and Bottom view)
ORDER CODES
PACKAGE
LFBGA96
TRAY
74ALVCH32245LB
T&R
74ALVCH32245LBR
DESCRIPTION
The 74ALVCH32245 is a low voltage CMOS
32-BIT
BUS
TRANSCEIVER
(3-STATE)
fabricated with sub-micron silicon gate and
five-layer metal wiring C
2
MOS technology. It is
ideal for 1.65 to 3.6 V applications; it can be
interfaced to 3.6V signal enviroment for both
inputs and outputs.
LOGIC DIAGRAM
This IC is intended for two-ways asynchronous
communication between data buses: the direction
of data trasmission is determined by DIR input.
Any nG contol output governs eight BUS
TRANSCEIVERS. Output Enable input (nG) tied
together gives full 32-bit operation. When nG is
LOW, the output are enabled. When nG is HIGH,
the output are in high impedance state so that the
buses are effectively isolated. Bus hold on data
inputs is provided in order to eliminate the need for
external pull-up or pull-down resistor.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
February 2002
1/9

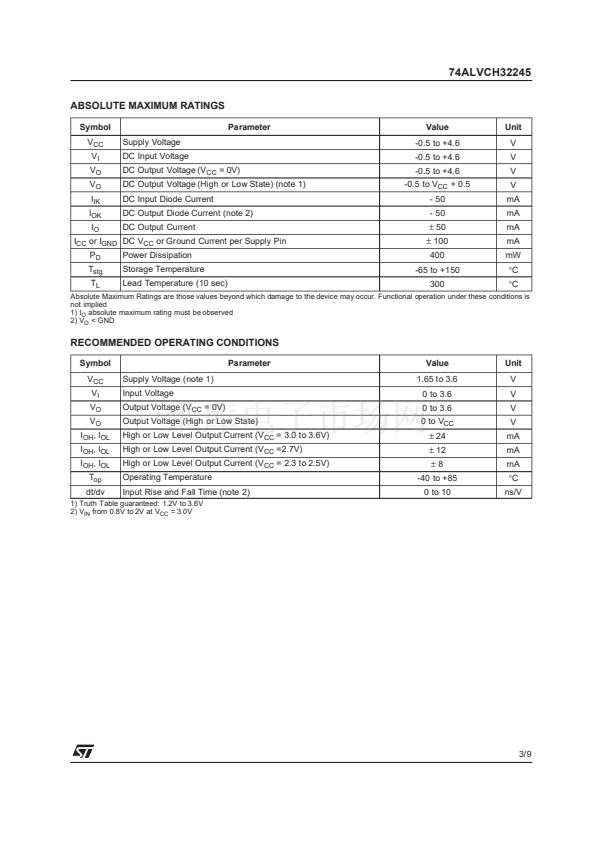

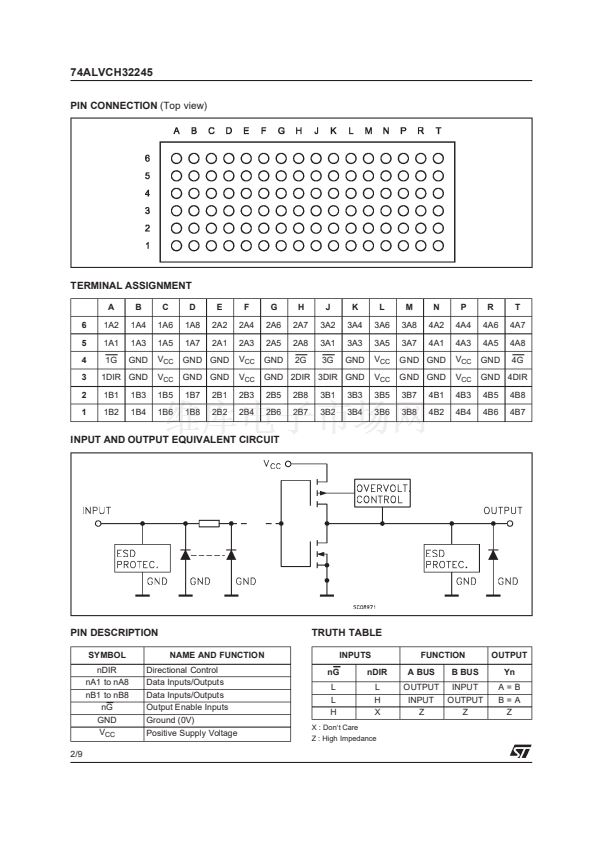

74ALVCH32245LBR 產品屬性

  • 2,000

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74ALVCH

  • 收發器，非反相

  • 4

  • 8

  • 24mA，24mA

  • 1.65 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 96-LFBGA

  • 96-LFBGA（13.5x5.5）

  • 帶卷 (TR)

  • 497-3705-2
