74ACTQ00SC Datasheet

  • 74ACTQ00SC

  • Quiet Series⑩ Quad 2-Input NAND Gate

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ACTQ00 Quiet Series鈩?Quad 2-Input NAND Gate
August 1990
Revised April 1999
74ACTQ00
Quiet Series鈩?Quad 2-Input NAND Gate
General Description
The ACTQ00 contains four 2-input NAND gates and uti-
lizes Fairchild FACT Quiet Series鈩?technology to guaran-
tee quiet output switching and improve dynamic threshold
performance FACT Quiet Series features GTO鈩?output
control and undershoot corrector in addition to a split
ground bus for superior ACMOS performance.
Features
s
I
CC
reduced by 50%
s
Guaranteed simultaneous switching noise level and
dynamic threshold performance
s
Improved latch-up immunity
s
Outputs source/sink 24 mA
s
Has TTL-compatible inputs
Ordering Code:
Order Number
74ACTQ00SC
74ACTQ00PC
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150鈥?Narrow Body
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Pin Assignment for
DIP and SOIC
Pin Descriptions
Pin Names
A
n
, B
n
O
n
Description
Inputs
Outputs
FACT鈩? Quiet Series鈩? FACT Quiet Series鈩? and GTO鈩?are trademarks of Fairchild Semiconductor Corporation.
漏 1999 Fairchild Semiconductor Corporation
DS010888.prf
www.fairchildsemi.com

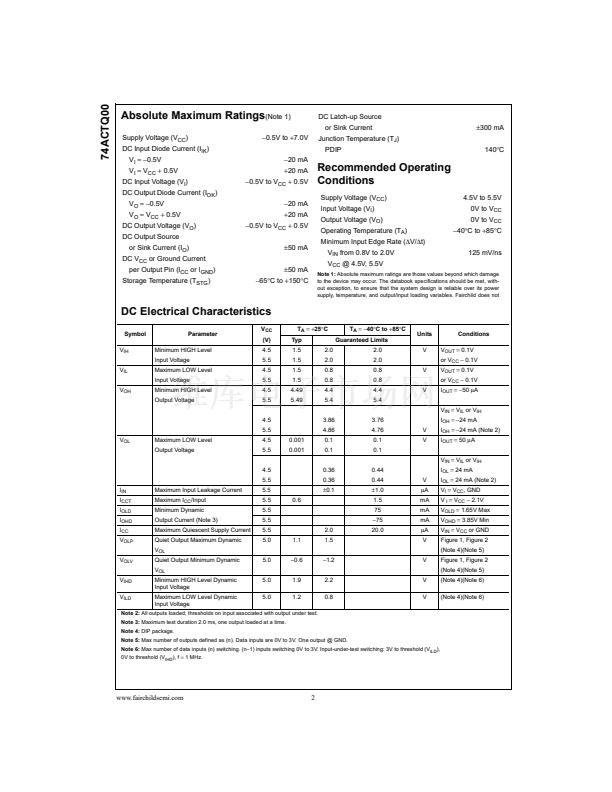

74ACTQ00SC 產品屬性

  • 55

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74ACTQ

  • 與非門

  • 4

  • 2

  • -

  • 4.5 V ~ 5.5 V

  • 2µA

  • 24mA，24mA

  • 0.8V

  • 2V

  • 7.5ns @ 5V，50pF

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC

  • 14-SOIC（0.154"，3.90mm 寬）

  • 管件
