74ACT16543MTD Datasheet

  • 74ACT16543MTD

  • 16-Bit Registered Transceiver with 3-STATE Outputs

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74ACT16543 16-Bit Registered Transceiver with 3-STATE Outputs
August 1999
Revised October 1999
74ACT16543
16-Bit Registered Transceiver with 3-STATE Outputs
General Description
The ACT16543 contains sixteen non-inverting transceivers
containing two sets of D-type registers for temporary stor-
age of data flowing in either direction. Each byte has sepa-
rate control inputs which can be shorted together for full
16-bit operation. Separate Latch Enable and Output
Enable inputs are provided for each register to permit inde-
pendent input and output control in either direction of data
flow.
Features
s
Independent registers for A and B buses
s
Separate controls for data flow in each direction
s
Back-to-back registers for storage
Multiplexed real-time and stored data transfers
s
Separate control logic for each byte
s
Outputs source/sink 24 mA
s
TTL-compatible inputs
Ordering Code:
Order Number
74ACT16543SSC
74ACT16543MTD
Package Number
MS56A
MTD56
Package Description
56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300鈥?Wide
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Connection Diagram
Pin Descriptions
Pin Names
OEAB
n
OEBA
n
CEAB
n
CEBA
n
LEAB
n
LEBA
n
A
0
鈥揂
15
B
0
鈥揃
15
Descriptions
A-to-B Output Enable Input (Active LOW)
B-to-A Output Enable Input (Active LOW)
A-to-B Enable Input (Active LOW)
B-to-A Enable Input (Active LOW)
A-to-B Latch Enable Input (Active LOW)
B-to-A Latch Enable Input (Active LOW)
A-to-B Data Inputs or
B-to-A 3-STATE Outputs
B-to-A Data Inputs or
A-to-B 3-STATE Outputs
FACT鈩?is a trademark of Fairchild Semiconductor Corporation.
漏 1999 Fairchild Semiconductor Corporation
DS500301
www.fairchildsemi.com

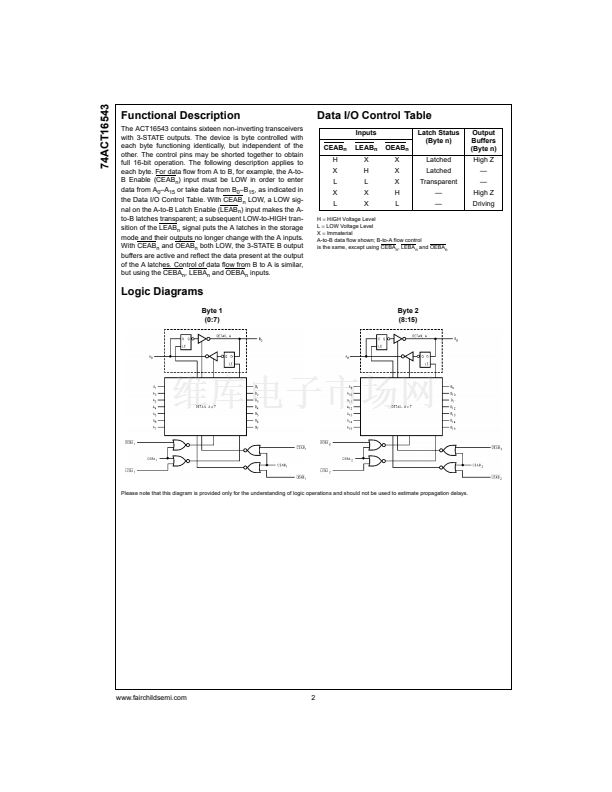

74ACT16543MTD 產品屬性

  • 34

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74ACT

  • 寄存收發器，非反相

  • 2

  • 8

  • 24mA，24mA

  • 4.5 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 56-TFSOP（0.240"，6.10mm 寬）

  • 56-TSSOP
