74AC244TTR Datasheet

  • 74AC244TTR

  • Dual 4-Bit Non-Inverting Buffer/Driver

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

74AC244
OCTAL BUS BUFFER
WITH 3 STATE OUTPUTS (NON INVERTED)
s
s
s
s
s
s
s
s
s
HIGH SPEED: t
PD
= 3.8ns (TYP.) at V
CC
= 5V
LOW POWER DISSIPATION:
I
CC
= 4碌A(chǔ)(MAX.) at T
A
=25擄C
HIGH NOISE IMMUNITY:
V
NIH
= V
NIL
= 28 % V
CC
(MIN.)
50鈩?TRANSMISSION LINE DRIVING
CAPABILITY
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN)
BALANCED PROPAGATION DELAYS:
t
PLH
鈮?/div>
t
PHL
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 2V to 6V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 244
IMPROVED LATCH-UP IMMUNITY
DIP
SOP
TSSOP
ORDER CODES
PACKAGE
DIP
SOP
TSSOP
TUBE
74AC244B
74AC244M
T&R
74AC244MTR
74AC244TTR
DESCRIPTION
The 74AC244 is an advanced high-speed CMOS
OCTAL BUS BUFFER (3-STATE) fabricated with
sub-micron silicon gate and double-layer metal
wiring C
2
MOS tecnology.
The G input controls four BUS BUFFERs.
This device is designed to be used with 3 state
memory address drivers, etc.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.

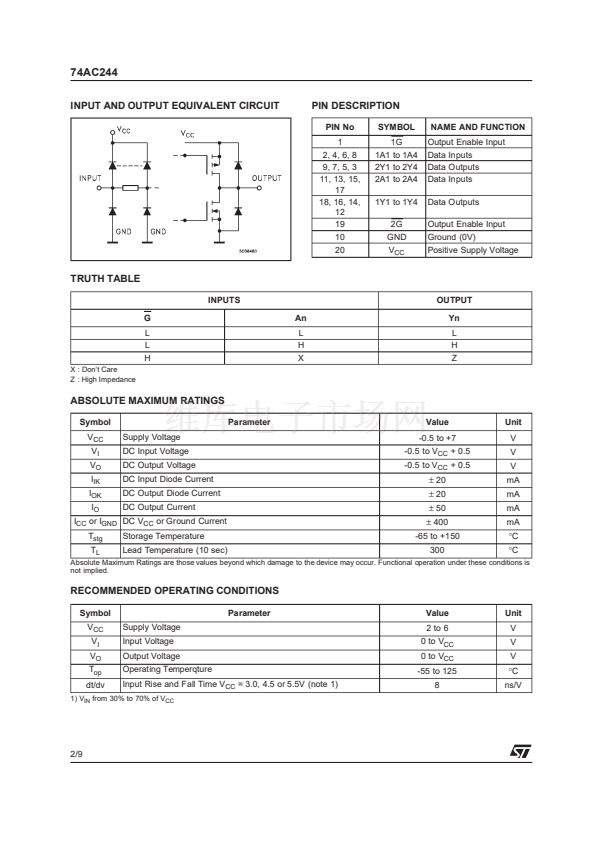

PIN CONNECTION AND IEC LOGIC SYMBOLS
April 2001
1/9

74AC244TTR 產品屬性

  • 1

  • 集成電路 (IC)

  • 邏輯 - 緩沖器，驅動器，接收器，收發器

  • 74AC

  • 緩沖器/線路驅動器，非反相

  • 2

  • 4

  • 24mA，24mA

  • 2 V ~ 6 V

  • -55°C ~ 125°C

  • 表面貼裝

  • 20-TSSOP（0.173"，4.40mm 寬）

  • 20-TSSOP

  • Digi-Reel®

  • 497-2913-6
