74AC151MTC Datasheet

  • 74AC151MTC

  • 8-Input Multiplexer

  • 9頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

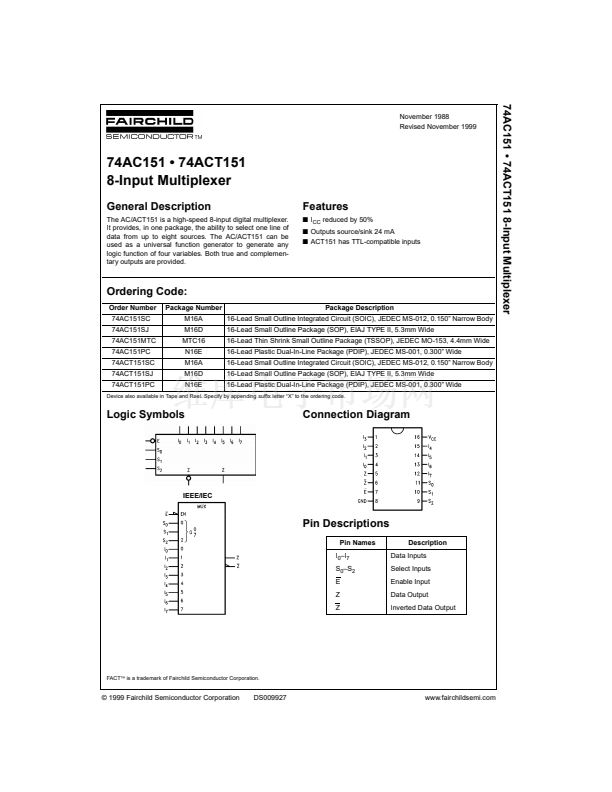

74AC151 鈥?74ACT151 8-Input Multiplexer
November 1988
Revised November 1999
74AC151 鈥?74ACT151
8-Input Multiplexer
General Description
The AC/ACT151 is a high-speed 8-input digital multiplexer.
It provides, in one package, the ability to select one line of
data from up to eight sources. The AC/ACT151 can be
used as a universal function generator to generate any
logic function of four variables. Both true and complemen-
tary outputs are provided.
Features
s
I
CC
reduced by 50%
s
Outputs source/sink 24 mA
s
ACT151 has TTL-compatible inputs
Ordering Code:
Order Number
74AC151SC
74AC151SJ
74AC151MTC
74AC151PC
74ACT151SC
74ACT151SJ
74ACT151PC
Package Number
M16A
M16D
MTC16
N16E
M16A
M16D
N16E
Package Description

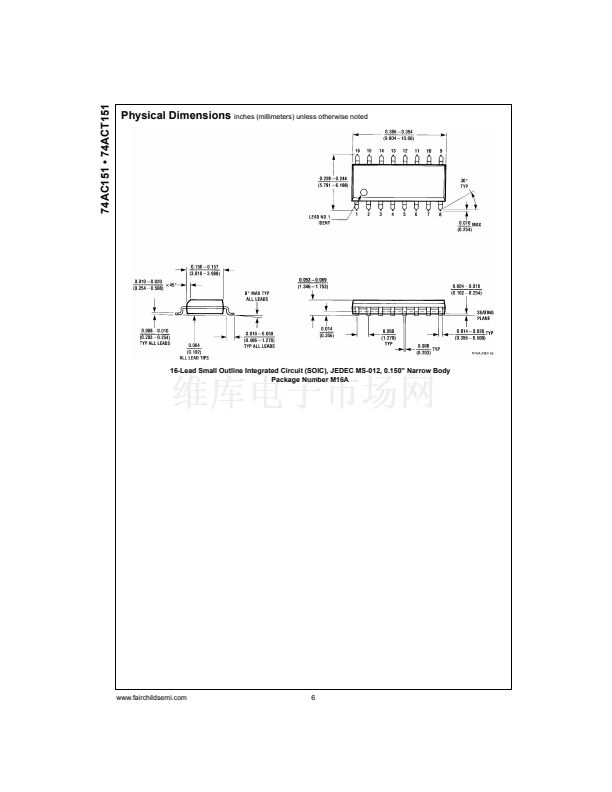

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150鈥?Narrow Body

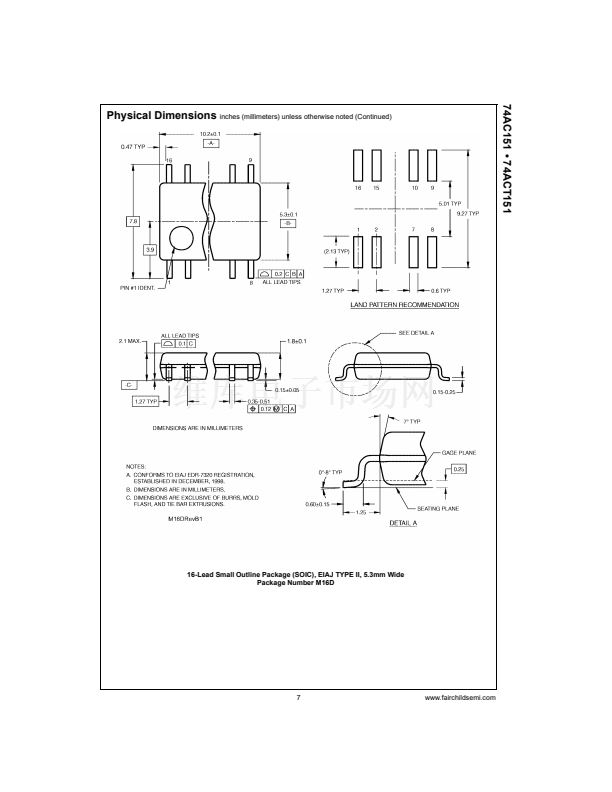

16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

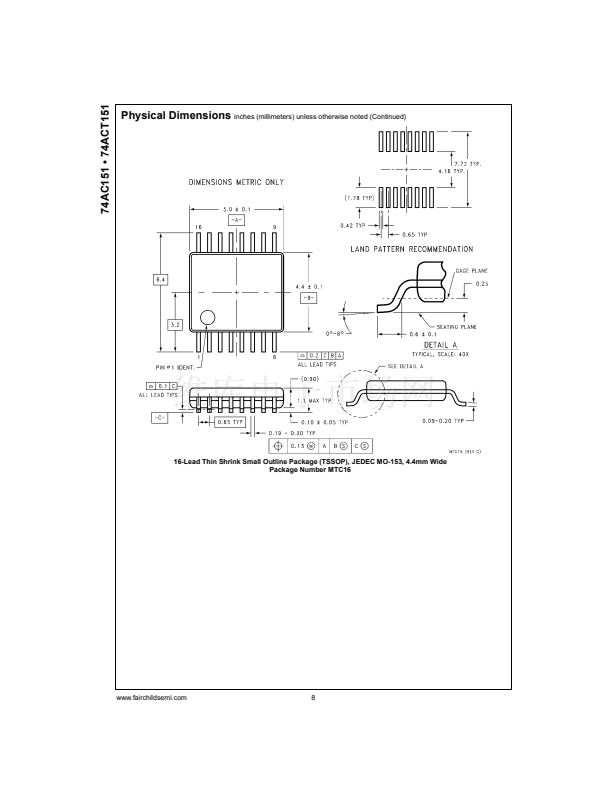

16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

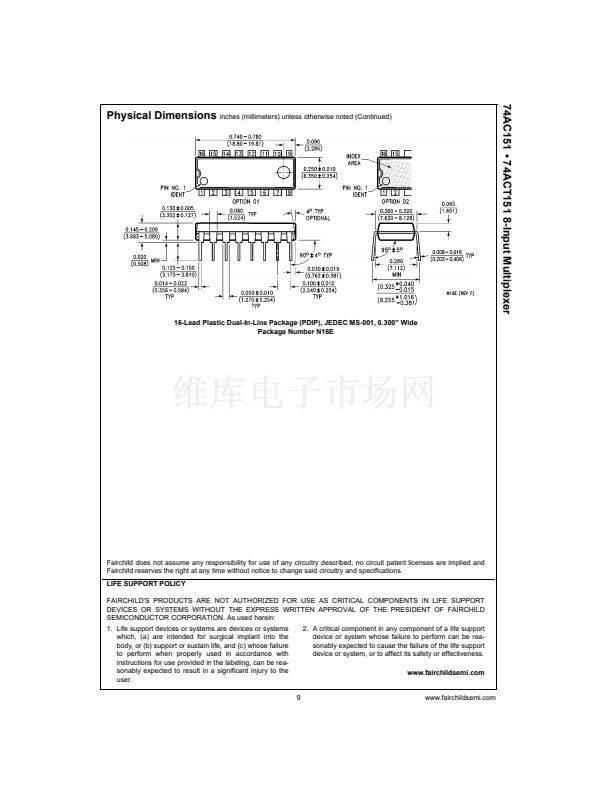

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150鈥?Narrow Body
16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300鈥?Wide
Device also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.

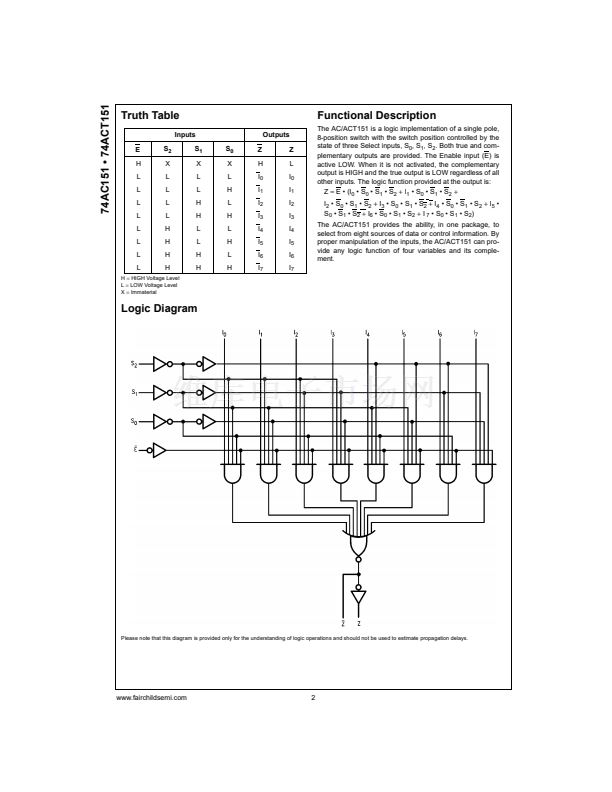

Logic Symbols
Connection Diagram
IEEE/IEC
Pin Descriptions
Pin Names
I
0
鈥揑
7
S
0
鈥揝
2
E
Z
Z
Description
Data Inputs
Select Inputs
Enable Input
Data Output
Inverted Data Output
FACT錚?is a trademark of Fairchild Semiconductor Corporation.
漏 1999 Fairchild Semiconductor Corporation
DS009927
www.fairchildsemi.com

74AC151MTC 產品屬性

  • 2,350

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • 74AC

  • 多路復用器

  • 1 x 8:1

  • 1

  • 24mA，24mA

  • 單電源

  • 2 V ~ 6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 16-TSSOP（0.173"，4.40mm 寬）

  • 16-TSSOP

  • 管件
