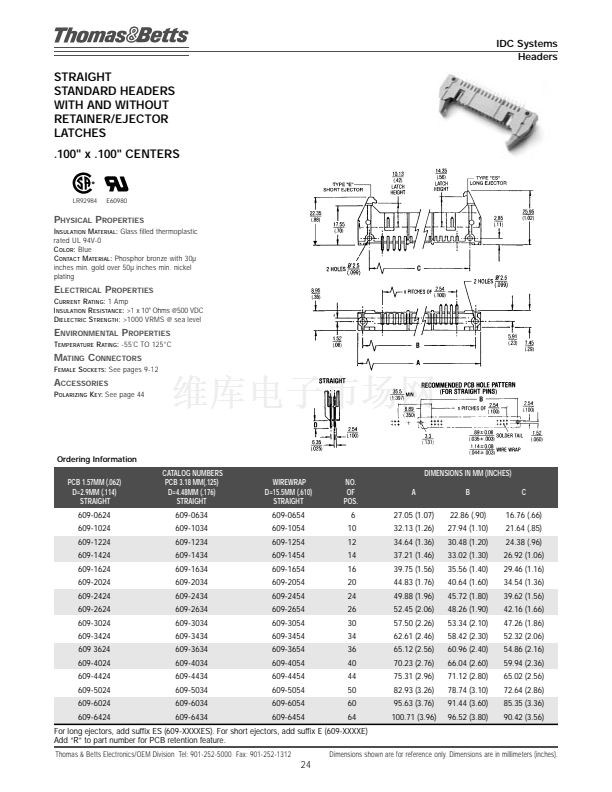

IDC Systems
Headers
STRAIGHT
STANDARD HEADERS
WITH AND WITHOUT
RETAINER/EJECTOR
LATCHES
.100" x .100" CENTERS
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Blue
C
ONTACT
M
ATERIAL
:
Phosphor bronze with 30碌
inches min. gold over 50碌 inches min. nickel
plating
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
1 Amp
I
NSULATION
R
ESISTANCE
:
>1 x 10
9
Ohms @500 VDC
D
IELECTRIC
S
TRENGTH
:
>1000 VRMS @ sea level
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55藲C TO 125擄C
M
ATING
C
ONNECTORS
F
EMALE
S
OCKETS
:
See pages 9-12
A
CCESSORIES
P
OLARIZING
K
EY
:
See page 44
Ordering Information
PCB 1.57MM (.062)
D=2.9MM (.114)
STRAIGHT
609-0624
609-1024
609-1224
609-1424
609-1624
609-2024
609-2424
609-2624
609-3024
609-3424
609 3624
609-4024
609-4424
609-5024
609-6024
609-6424
CATALOG NUMBERS
PCB 3.18 MM(.125)
D=4.48MM (.176)
STRAIGHT
609-0634
609-1034
609-1234
609-1434
609-1634
609-2034
609-2434
609-2634
609-3034
609-3434
609-3634
609-4034
609-4434
609-5034
609-6034
609-6434
DIMENSIONS IN MM (INCHES)
WIREWRAP
D=15.5MM (.610)
STRAIGHT
609-0654
609-1054
609-1254
609-1454
609-1654
609-2054
609-2454
609-2654
609-3054
609-3454
609-3654
609-4054
609-4454
609-5054
609-6054
609-6454
NO.
OF
POS.
6
10
12
14
16
20
24
26
30
34
36
40
44
50
60
64
A
27.05 (1.07)
32.13 (1.26)
34.64 (1.36)
37.21 (1.46)
39.75 (1.56)
44.83 (1.76)
49.88 (1.96)
52.45 (2.06)
57.50 (2.26)
62.61 (2.46)
65.12 (2.56)
70.23 (2.76)
75.31 (2.96)
82.93 (3.26)
95.63 (3.76)
100.71 (3.96)
B
22.86 (.90)
27.94 (1.10)
30.48 (1.20)
33.02 (1.30)
35.56 (1.40)
40.64 (1.60)
45.72 (1.80)
48.26 (1.90)
53.34 (2.10)
58.42 (2.30)
60.96 (2.40)
66.04 (2.60)
71.12 (2.80)
78.74 (3.10)
91.44 (3.60)
96.52 (3.80)
C
16.76 (.66)
21.64 (.85)
24.38 (.96)
26.92 (1.06)
29.46 (1.16)
34.54 (1.36)
39.62 (1.56)
42.16 (1.66)
47.26 (1.86)
52.32 (2.06)
54.86 (2.16)
59.94 (2.36)
65.02 (2.56)
72.64 (2.86)
85.35 (3.36)
90.42 (3.56)
For long ejectors, add suffix ES (609-XXXXES). For short ejectors, add suffix E (609-XXXXE)
Add 鈥淩鈥?to part number for PCB retention feature.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
