Male Connectors
P
RODUCT
D
ESCRIPTION
Male Connectors are designed to
mate with Female Socket Transition
Connectors. Used primarily for in-line
cable splice and 鈥淭鈥?tap applications,
they are available with optional
mounting ears for l/O applications.
Retainer/ejector latches provide a
convenient means of disconnect.
MALE CONNECTORS
D
ESIGN
A
DVANTAGES
鈥?13 connector sizes-10,14,16, 20,
24, 26, 34, 40, 44, 50, 56, 60 and
64-position.
鈥?Available with or without mounting
ears.
鈥?Contact Material鈥擝eryllium copper
with 30 micro inches min. gold over
50 micro inches min. nickel plating.
鈥?30碌鈥?(minimum) gold plating in
contact mating areas.
鈥?Box shape assures polarization and
protects mating pins.
鈥?Connector designed for center
bump and dual slot polarizing
methods.
鈥?Solid .025鈥?square posts for
strength and durability.
鈥?Strain relief available for both
connector versions.
鈥?Optional polarizing key.
MALE CONNECTORS INDEX

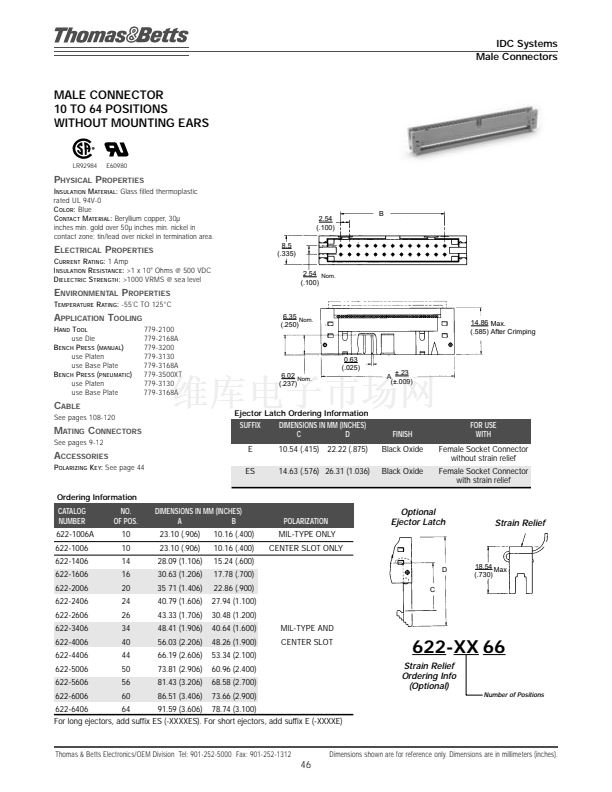

Male connectors 10 to 64 pos. w/o mounting ears ................46

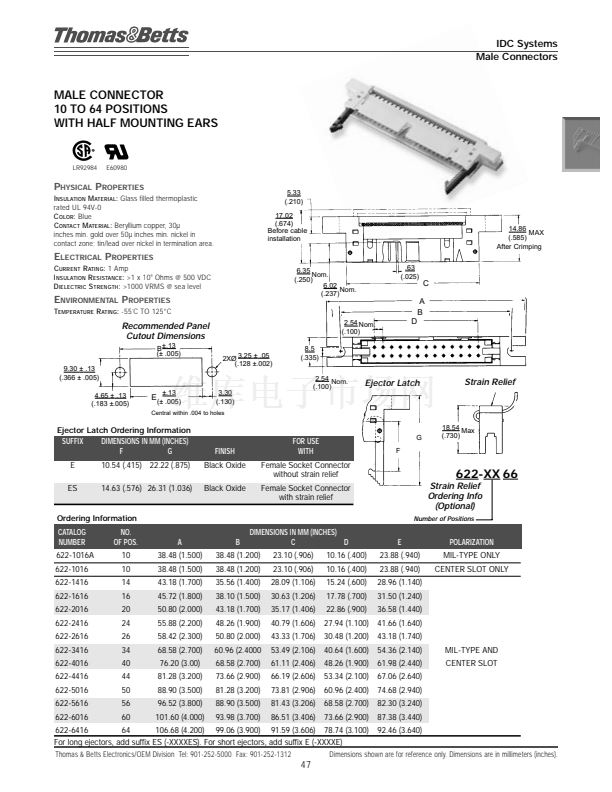

Male connectors 10 to 64 pos. w/half mounting ears ............47
