0.56 inch ( 14.22 mm )
DUAL DIGIT NUMERIC LED DISPLAYS
DESCRIPTION
The UVD-6X10/6X40 is 0.56 inch (14.22mm) height dual digit display.
Choices of five colors-high efficiency red/bright red/green/yellow/red orange.
High efficirncy red displays has red face and red segments. Bright red displays has balck face and red segments.
Green and yellow displays have gray face and white segments. Red orange displays has orange face and orange segments.
The bright red and green LED chip are made from GaP on a transparent GaP substrate.
The yellow and red orange LED chip are made from GaAsP on a transparent GaP substrate.
UVD-6XX0 SERIES
FEATURES
l
l
l
l
l
Industuy Standard Size
Wide Viewing angle
Continuous uniform segments.
Excellent characters appearance
Low power requirement
DEVICES
PART NO.
UVD-6X10
UVD-6X40
DESCRIPTION
Common Anode
Common Cathode

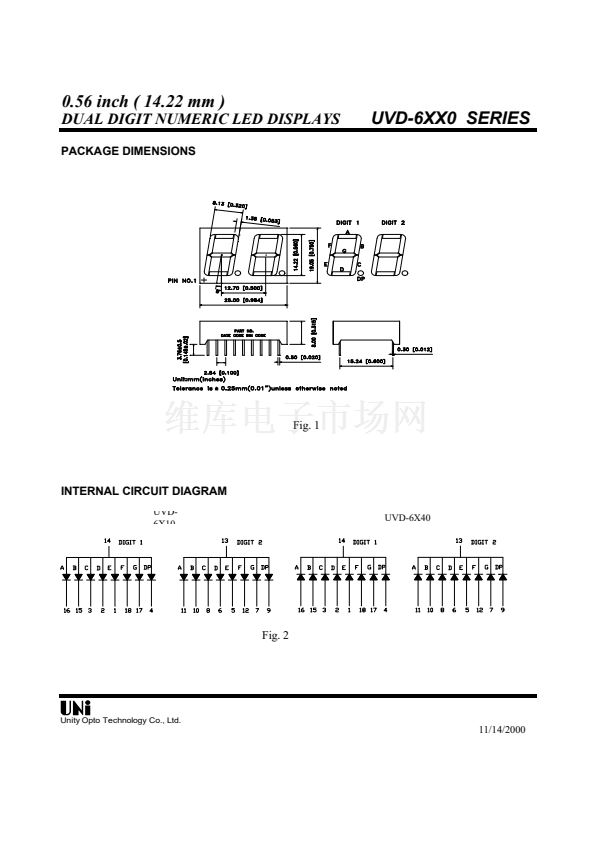

PACKAGE
DIMENSION
Fig. 1
INTERNAL CIRCUIT
DIAGRAM
Fig. 2
ABSOLUTE MAXIMUM RATINGS
@ T
A
=25
o
C
PARAMETER
HI.EFF. BRIGHT
GREEN
RED
RED
75
40
75
YELLO
RED
W
ORANGE
60
75
100
25
0.33
5
UNIT
mW
mA
mA
mA/
o
C
V
Power Dissipation Per Segment
Peak Forward Current Per Segment
100
60
100
80
( 1/10 Duty Cycle. ,0.1ms pulse width)
Continuous Forward Current Per Segment
25
15
25
20
o
Derating Linear From 25
C
Per Segment
0.33
0.2
0.33
0.27
Reverse Voltage Per Segment
5
5
5
5
o
Operating Temperature Range
-35
C
to+85
o
C
Storage Temperature Range
-35
o
C
to+85
o
C
Solder Temperature 1/16 inch Below Seating Plane for 3 Seconds at 260
o
C
Unity Opto Technology Co., Ltd.
11/14/2000
