DESCRIPTION
The
66181
high voltage isolator consisting of a LED optically coupled to a high speed, high gain inverting detector gate.
Output is TTL capable with switching propagation delays of 55ns typical, hermetically sealed in TO-46 packages and mounted
in a highly reliability, hermetically sealed ceramic package. Available in commercial (0
擄
to +70
擄
C), extended temperature range
(-40
擄
to +85
擄
) and full Military temperature range (-55
擄
to +125
擄
C).
Contact the factory for special custom or multi-channel
requirements!
ABSOLUTE MAXIMUM RATINGS
Storage Temperature............................................................................................................................................-65
擄
C to +150
擄
C
Operating Free-Air Temperature Range ..............................................................................................................-55
擄
C to +125
擄
C
Lead Solder Temperature.........................................................................................260
擄
C for 10s (1.6mm below seating plane)
Peak Forward Input Current ........................................................................................................................ 40mA (1ms duration)
Average Forward Input Current ............................................................................................................................................20mA
Input Power Dissipation .......................................................................................................................................................35mW
Reverse Input Voltage ...............................................................................................................................................................5V
Supply voltage - V
CC
................................................................................................................................. 7V(1 minute maximum)
Output Current - I
O
................................................................................................................................................................25mA
Output Power Dissipation ....................................................................................................................................................40mW
Output Voltage - V
O
...................................................................................................................................................................7V
Total Power Dissipation .....................................................................................................................................................350mW

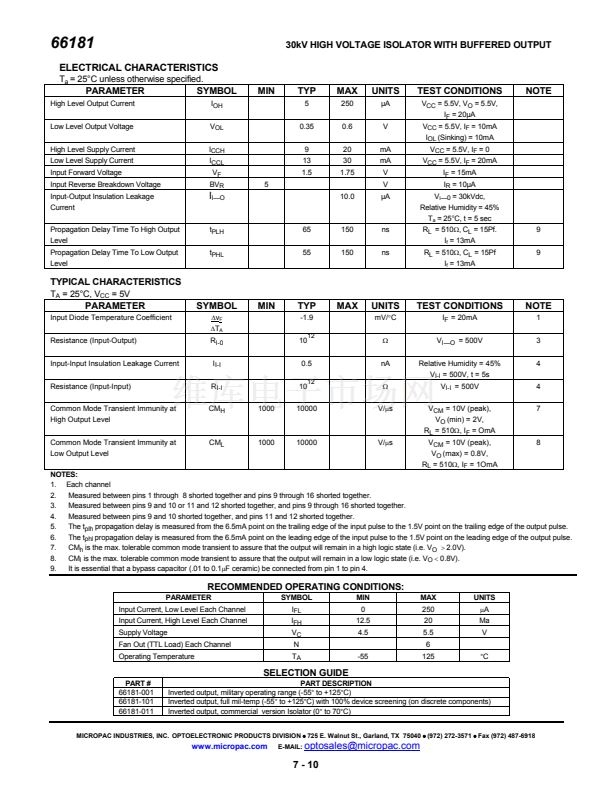

Package Dimensions
脴0.300 [7.62]
脴0.018 [0.46]
Schematic Diagram
A
VCC
TYP
A (BLACK DOT)
K
GND (RED DOT)
CASE
Vout
Vcc
Vout
2.220 [56.39]
K
GND
CASE
NOTE:
0.500 [12.70]
0.500 [12.70]
MIN
DIMENSIONS ARE INCHES(MILLIMETERS)
MIN
A.01 TO 0.1
F BYPASS
CAPACITOR MUST BE
CONNECTED BETWEEN
Vcc AND GROUND.
ENCAPSULATION IN A
SUITABLE EPOXY IS
REQUIRED TO MEET 30KV
ISOLATION VOLTAGE
