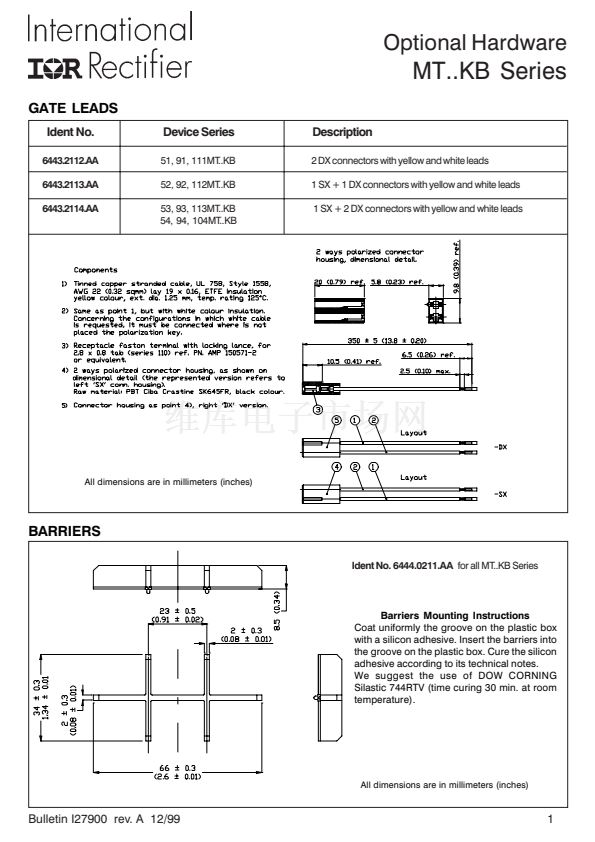

Optional Hardware

MT..KB Series

GATE LEADS

Ident No.

6443.2112.AA

6443.2113.AA

6443.2114.AA

Device Series

51, 91, 111MT..KB

52, 92, 112MT..KB

53, 93, 113MT

..KB

54, 94, 104MT..KB

Description

2 DX connectors with yellow and white leads

1 SX + 1 DX connectors with yellow and white leads

1 SX + 2 DX connectors with yellow and white leads

All dimensions are in millimeters (inches)

BARRIERS

Ident No. 6444.0211.AA

for all MT..KB Series

Barriers Mounting Instructions

Coat uniformly the groove on the plastic box

with a silicon adhesive. Insert the barriers into

the groove on the plastic box. Cure the silicon

adhesive according to its technical notes.

We suggest the use of DOW CORNING

Silastic 744RTV (time curing 30 min. at room

temperature).

All dimensions are in millimeters (inches)

Bulletin I27900 rev. A 12/99

1
