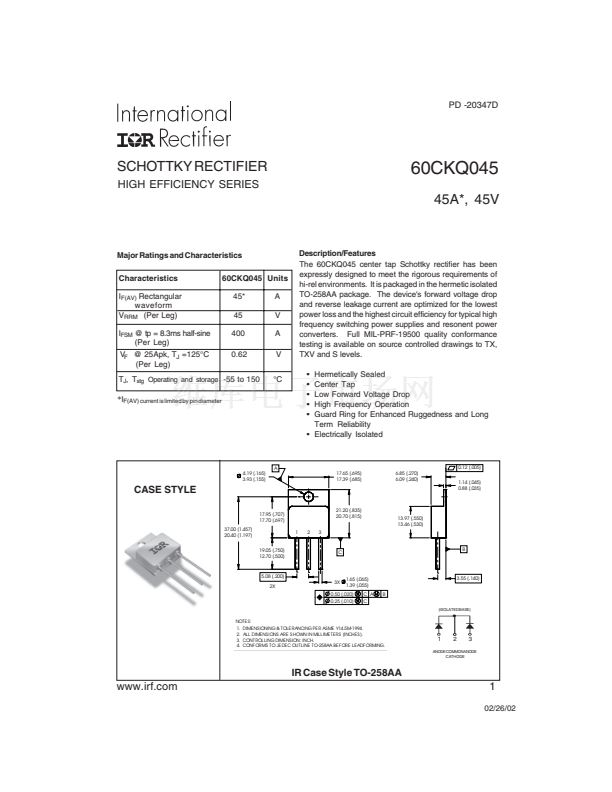

PD -20347D
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
60CKQ045
45A*, 45V
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half-sine
(Per Leg)
V
F
@ 25Apk, T
J
=125擄C
(Per Leg)
60CKQ045 Units
45*
45
400
0.62
A
V
A
V
擄C
Description/Features
The 60CKQ045 center tap Schottky rectifier has been
expressly designed to meet the rigorous requirements of
hi-rel environments. It is packaged in the hermetic isolated
TO-258AA package. The device's forward voltage drop
and reverse leakage current are optimized for the lowest
power loss and the highest circuit efficiency for typical high
frequency switching power supplies and resonent power
converters. Full MIL-PRF-19500 quality conformance
testing is available on source controlled drawings to TX,
TXV and S levels.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long
Term Reliability
鈥?Electrically Isolated
T
J
, T
stg
Operating and storage
-55 to 150
*I
F(AV) current is limited by pin diameter
A
4.19 [.165]
3.93 [.155]
17.65 [.695]
17.39 [.685]
6.85 [.270]
6.09 [.240]
0.12 [.005]
1.14 [.045]
0.88 [.035]
CASE STYLE
17.95 [.707]
17.70 [.697]
37.00 [1.457]
20.40 [1.197]
19.05 [.750]
12.70 [.500]
1
2
3
21.20 [.835]
20.70 [.815]
13.97 [.550]
13.46 [.530]
C
B
5.08 [.200]
2X
3X
1.65 [.065]
1.39 [.055]
C A
C
B
3.55 [.140]
0.50 [.020]
0.25 [.010]
(ISOLATED BASE)
NOT ES:
1.
2.
3.
4.
DIMENSIONING & T OLERANCING PER ASME Y14.5M-1994.
ALL DIMENSIONS ARE S HOWN IN MILLIMET ERS [INCHES ].
CONT ROLLING DIMENSION: INCH.
CONFORMS T O JEDEC OUT LINE T O-258AA BEFORE LEADFORMING.
1
2
3
ANODE COMMONANODE
CATHODE
IR Case Style TO-258AA
www.irf.com
1
02/26/02
