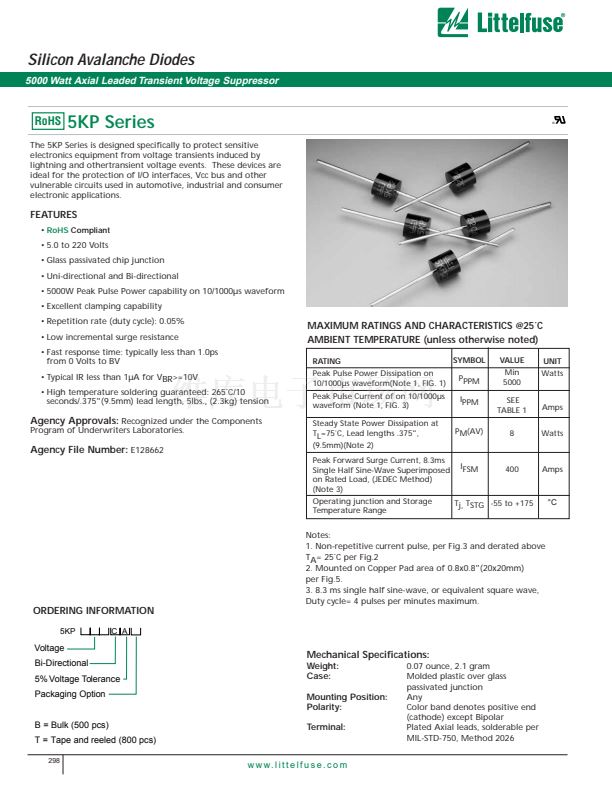

Silicon Avalanche Diodes

5000 Watt Axial Leaded Transient Voltage Suppressor

RoHS

5KP Series

廬

The 5KP Series is designed specifically to protect sensitive

electronics equipment from voltage transients induced by

lightning and othertransient voltage events. These devices are

ideal for the protection of I/O interfaces, Vcc bus and other

vulnerable circuits used in automotive, industrial and consumer

electronic applications.

FEATURES

鈥?/div>

RoHS

Compliant

鈥?/div>

5.0 to 220 Volts

鈥?/div>

Glass passivated chip junction

鈥?/div>

Uni-directional and Bi-directional

鈥?/div>

5000W Peak Pulse Power capability on 10/1000碌s waveform

鈥?/div>

Excellent clamping capability

鈥?/div>

Repetition rate (duty cycle): 0.05%

鈥?/div>

Low incremental surge resistance

鈥?/div>

Fast response time: typically less than 1.0ps

MAXIMUM RATINGS AND CHARACTERISTICS @25藲C

AMBIENT TEMPERATURE (unless otherwise noted)

RATING

Peak Pulse Power Dissipation on

10/1000碌s waveform(Note 1, FIG. 1)

Peak Pulse Current of on 10/1000碌s

waveform (Note 1, FIG. 3)

Steady State Power Dissipation at

TL=75藲C, Lead lengths .375",

(9.5mm)(Note 2)

Peak Forward Surge Current, 8.3ms

400

Single Half Sine-Wave Superimposed IFSM

on Rated Load, (JEDEC Method)

(Note 3)

Operating junction and Storage

Tj, TSTG -55 to +175

Temperature Range

Amps

SYMBOL

PPPM

IPPM

VALUE

Min

5000

SEE

TABLE 1

8

UNIT

Watts

from 0 Volts to BV

鈥?/div>

Typical IR less than 1碌A for VBR>=10V

鈥?/div>

High temperature soldering guaranteed: 265藲C/10

seconds/.375"(9.5mm) lead length, 5lbs., (2.3kg) tension

Amps

Watts

Agency Approvals:

Recognized under the Components

Program of Underwriters Laboratories.

Agency File Number:

E128662

PM(AV)

擄C

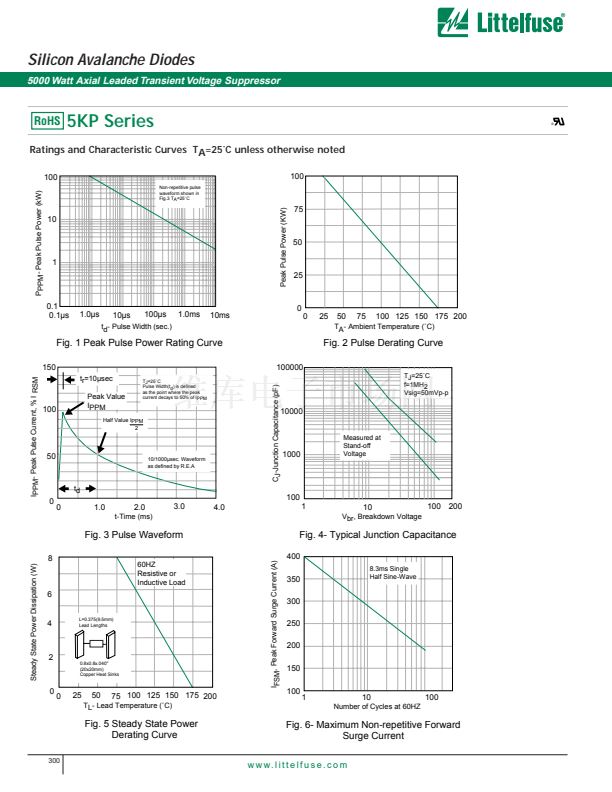

Notes:

1. Non-repetitive current pulse, per Fig.3 and derated above

TA= 25藲C per Fig.2

2. Mounted on Copper Pad area of 0.8x0.8"(20x20mm)

per Fig.5.

3. 8.3 ms single half sine-wave, or equivalent square wave,

Duty cycle= 4 pulses per minutes maximum.

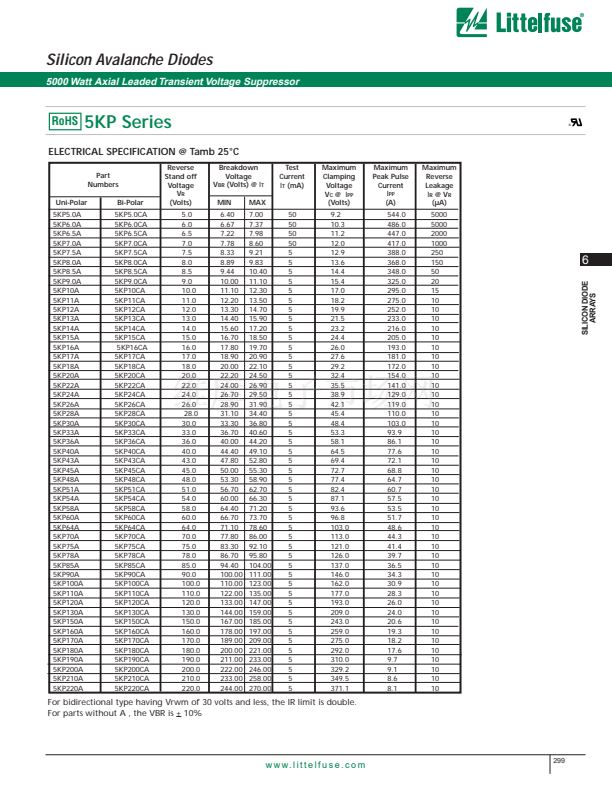

ORDERING INFORMATION

5KP

C A

Voltage

Bi-Directional

5% Voltage Tolerance

Packaging Option

B = Bulk (500 pcs)

T = Tape and reeled (800 pcs)

298

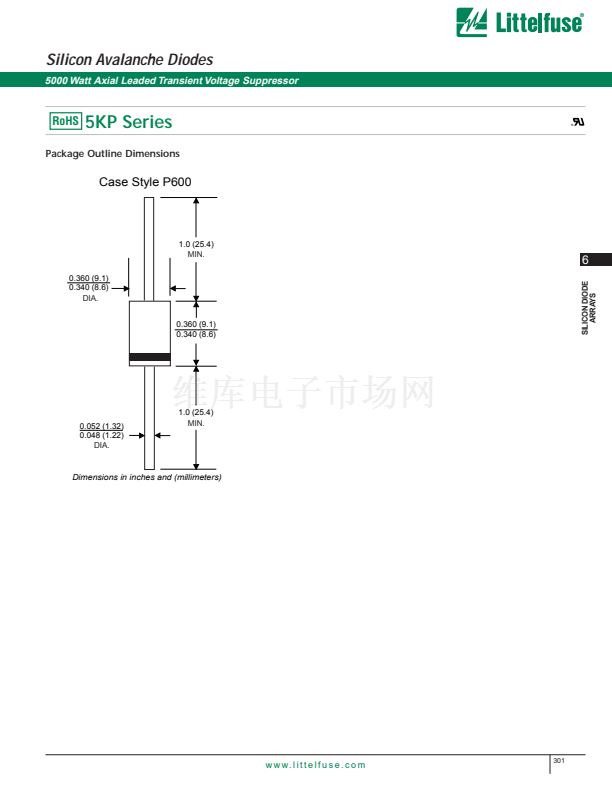

Mechanical Specifications:

Weight:

Case:

Mounting Position:

Polarity:

Terminal:

0.07 ounce, 2.1 gram

Molded plastic over glass

passivated junction

Any

Color band denotes positive end

(cathode) except Bipolar

Plated Axial leads, solderable per

MIL-STD-750, Method 2026

w w w. l i t t e l f u s e . c o m

產品培訓模塊
Transient Voltage Suppression (TVS) Diodes
標準包裝
1
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
5KP
電壓 - 反向隔離（標準值）
75V
電壓 - 擊穿
83.3V
功率（瓦特）
5000W
電極標記
單向
安裝類型
通孔
封裝/外殼
P600，軸向
供應商設備封裝
P600
包裝
剪切帶 (CT)
其它名稱
5KP75ACT5KP75ACT-ND5KP75ALFCTF3405CTF3405CT-ND
