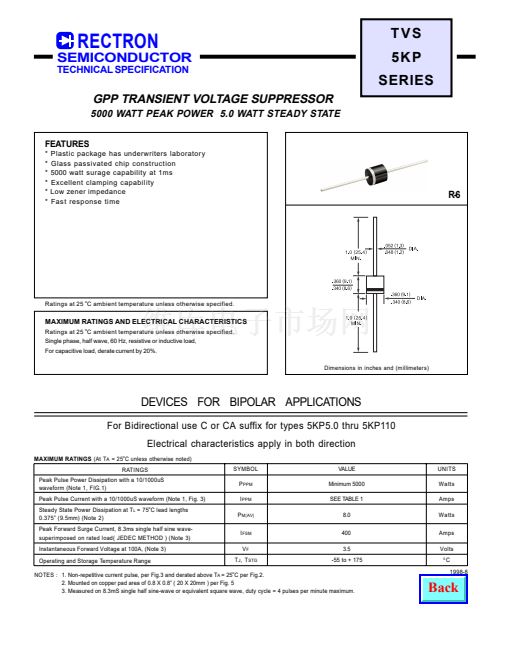

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
TVS
5KP
SERIES
GPP TRANSIENT VOLTAGE SUPPRESSOR
5000 WATT PEAK POWER 5.0 WATT STEADY STATE
FEATURES
*
*
*
*
*
*
Plastic package has underwriters laboratory
Glass passivated chip construction
5000 watt surage capability at 1ms
Excellent clamping capability
Low zener impedance
Fast response time
R-6
Ratings at 25
o
C ambient temperature unless otherwise specified.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load,
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types 5KP5.0 thru 5KP110
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
RATINGS
Peak Pulse Power Dissipation with a 10/1000uS
waveform (Note 1, FIG.1)
Peak Pulse Current with a 10/1000uS waveform (Note 1, Fig. 3)
Steady State Power Dissipation at T
L
= 75 C lead lengths
0.375鈥?(9.5mm) (Note 2)
Peak Forward Surge Current, 8.3ms single half sine wave-
superimposed on rated load( JEDEC METHOD ) (Note 3)
Instantaneous Forward Voltage at 100A, (Note 3)
Operating and Storage Temperature Range
o
o
o
SYMBOL
P
PPM
I
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
VALUE
Minimum 5000

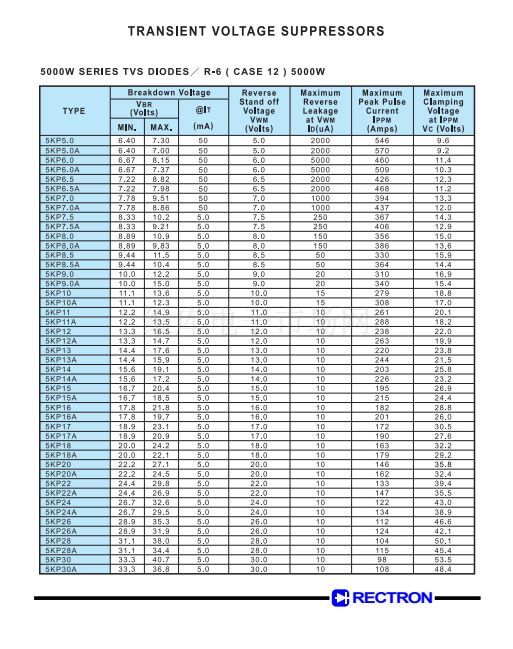

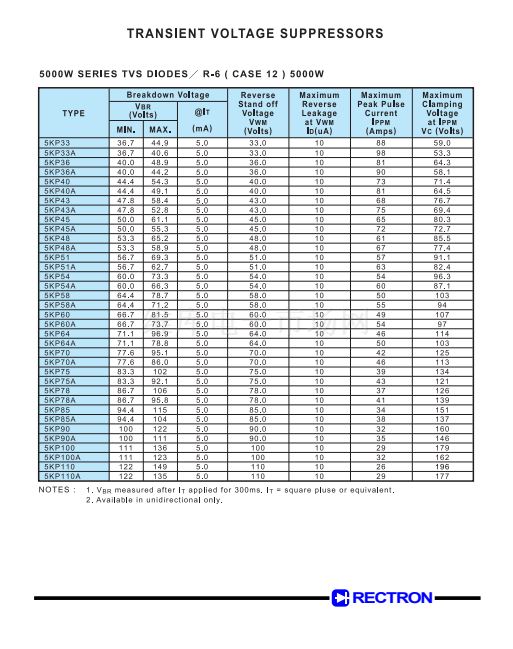

SEE TABLE 1
8.0
400
3.5
-55 to + 175
UNITS
Watts
Amps
Watts
Amps
Volts
0
C
1998-8
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25 C per Fig.2.
2. Mounted on copper pad area of 0.8 X 0.8鈥?( 20 X 20mm ) per Fig. 5
3. Measured on 8.3mS single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
